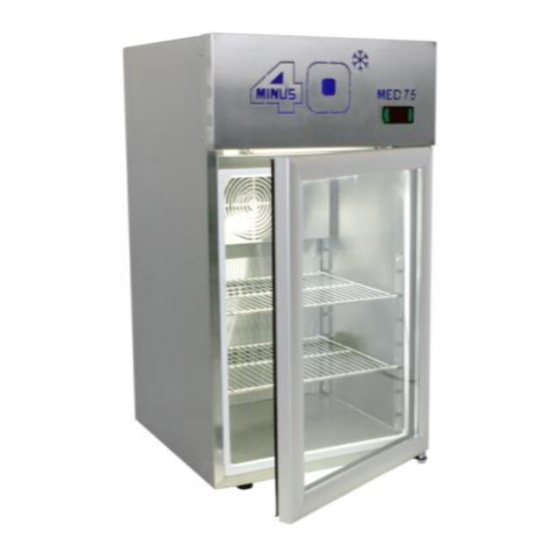

Minus 40 MED75GHD Instruction Manual

MED75GHD & MED250GHD
Controller: MT444 express
Version20170309

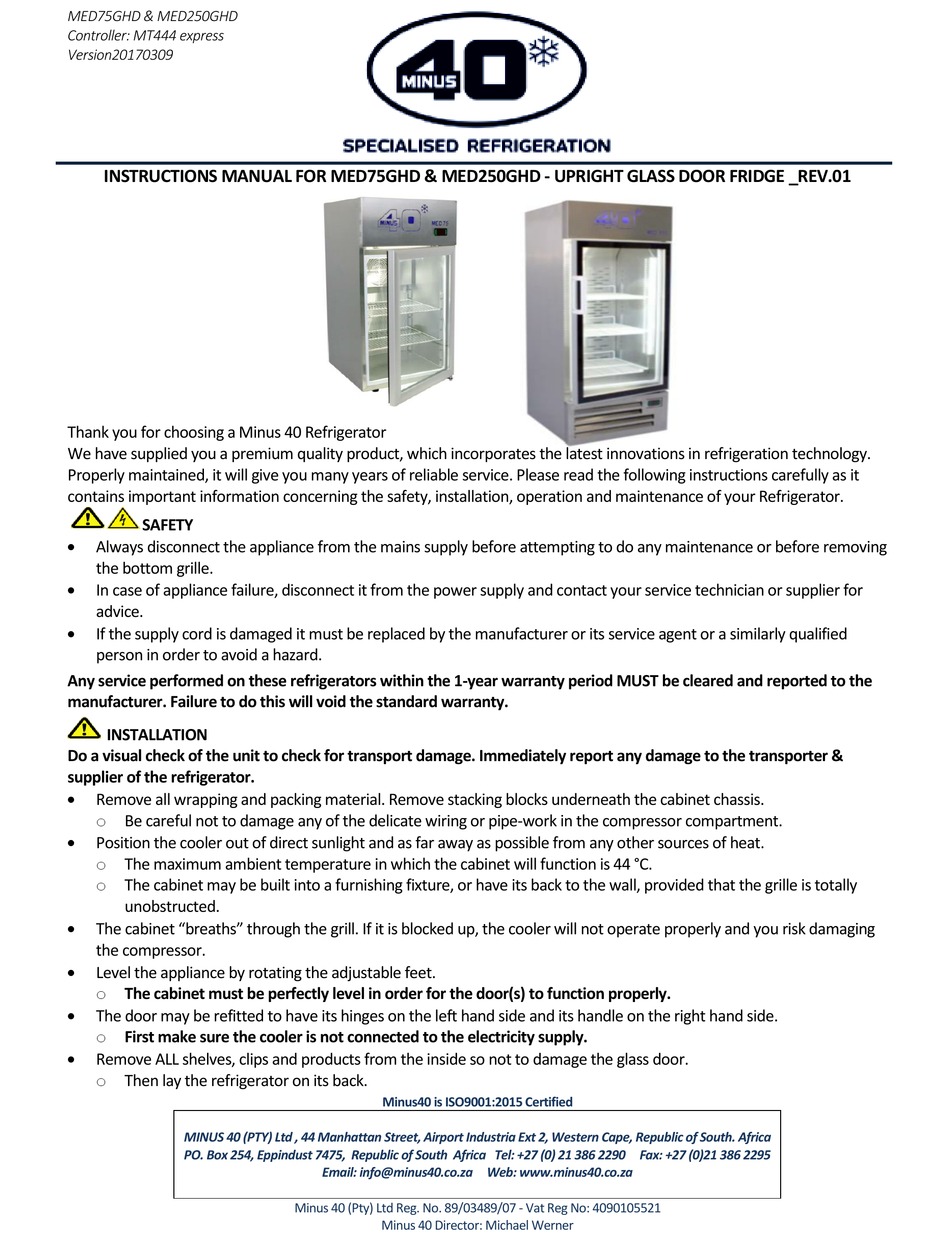

INSTRUCTIONS MANUAL FOR MED75GHD & MED250GHD - UPRIGHT GLASS DOOR FRIDGE _REV.01
Thank you for choosing a Minus 40 Refrigerator
We have supplied you a premium quality product, which incorporates the latest innovations in refrigeration technology.
Properly maintained, it will give you many years of reliable service. Please read the following instructions carefully as it
contains important information concerning the safety, installation, operation and maintenance of your Refrigerator.

SAFETY


Always disconnect the appliance from the mains supply before attempting to do any maintenance or before removing
the bottom grille.

In case of appliance failure, disconnect it from the power supply and contact your service technician or supplier for
advice.

If the supply cord is damaged it must be replaced by the manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
Any service performed on these refrigerators within the 1-year warranty period MUST be cleared and reported to the
manufacturer. Failure to do this will void the standard warranty.

INSTALLATION

Do a visual check of the unit to check for transport damage. Immediately report any damage to the transporter &
supplier of the refrigerator.

Remove all wrapping and packing material. Remove stacking blocks underneath the cabinet chassis.
o Be careful not to damage any of the delicate wiring or pipe-work in the compressor compartment.

Position the cooler out of direct sunlight and as far away as possible from any other sources of heat.
o The maximum ambient temperature in which the cabinet will function is 44 °C.
o The cabinet may be built into a furnishing fixture, or have its back to the wall, provided that the grille is totally
unobstructed.

The cabinet "breaths" through the grill. If it is blocked up, the cooler will not operate properly and you risk damaging
the compressor.

Level the appliance by rotating the adjustable feet.
o The cabinet must be perfectly level in order for the door(s) to function properly.

The door may be refitted to have its hinges on the left hand side and its handle on the right hand side.
o First make sure the cooler is not connected to the electricity supply.

Remove ALL shelves, clips and products from the inside so not to damage the glass door.
o Then lay the refrigerator on its back.
