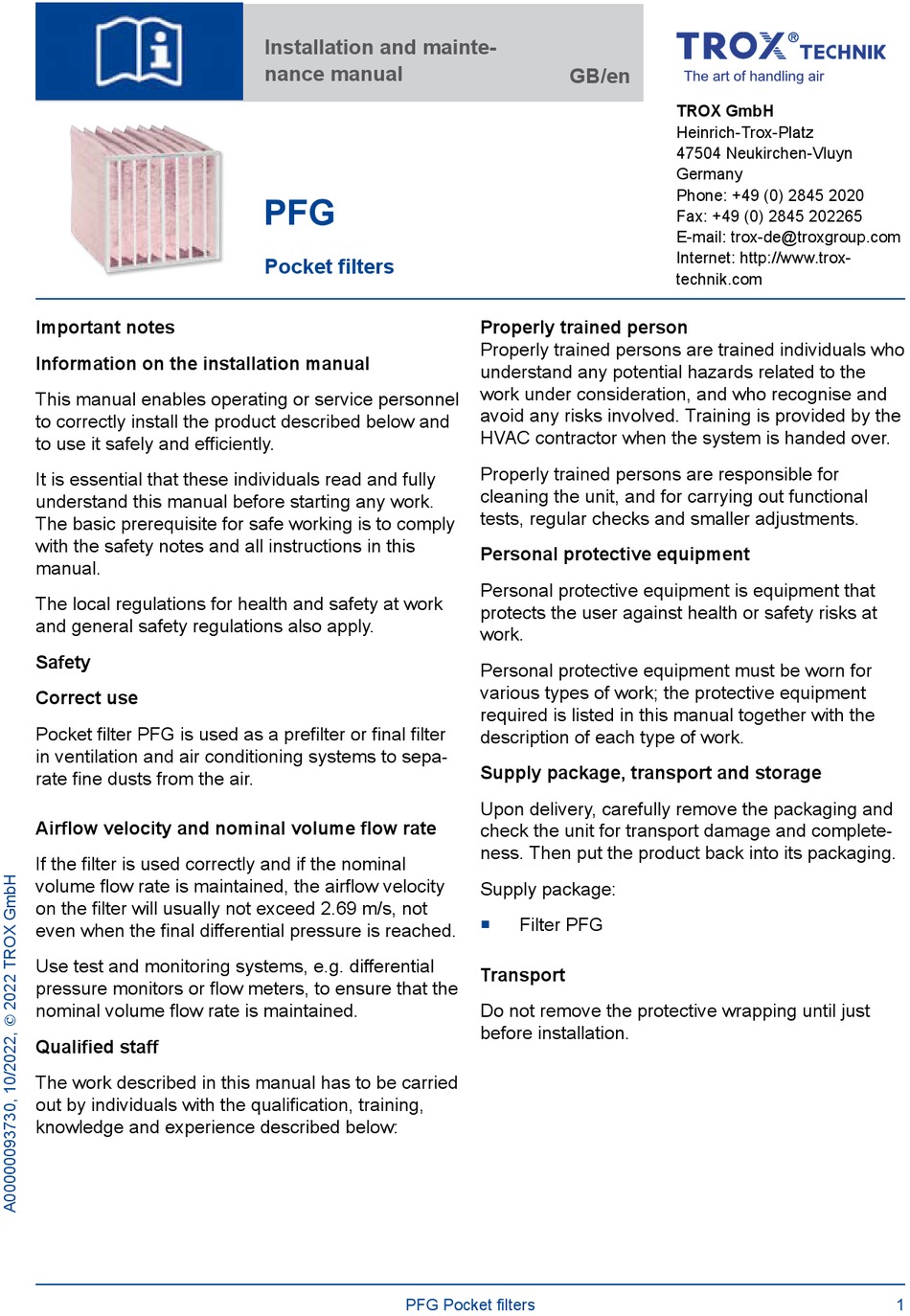

Trox Technik PFG Series Installation And Maintenance Manual

Important notes

Information on the installation manual
This manual enables operating or service personnel
to correctly install the product described below and
to use it safely and efficiently.
It is essential that these individuals read and fully
understand this manual before starting any work.
The basic prerequisite for safe working is to comply
with the safety notes and all instructions in this
manual.
The local regulations for health and safety at work
and general safety regulations also apply.
Safety
Correct use
Pocket filter PFG is used as a prefilter or final filter
in ventilation and air conditioning systems to sepa-
rate fine dusts from the air.
Airflow velocity and nominal volume flow rate
If the filter is used correctly and if the nominal
volume flow rate is maintained, the airflow velocity
on the filter will usually not exceed 2.69 m/s, not
even when the final differential pressure is reached.
Use test and monitoring systems, e.g. differential
pressure monitors or flow meters, to ensure that the
nominal volume flow rate is maintained.
Qualified staff
The work described in this manual has to be carried
out by individuals with the qualification, training,
knowledge and experience described below:
Installation and mainte-
nance manual
PFG
Pocket filters
PFG Pocket filters
GB/en
Properly trained person
Properly trained persons are trained individuals who
understand any potential hazards related to the
work under consideration, and who recognise and
avoid any risks involved. Training is provided by the
HVAC contractor when the system is handed over.
Properly trained persons are responsible for
cleaning the unit, and for carrying out functional
tests, regular checks and smaller adjustments.
Personal protective equipment
Personal protective equipment is equipment that
protects the user against health or safety risks at
work.
Personal protective equipment must be worn for
various types of work; the protective equipment
required is listed in this manual together with the
description of each type of work.

Supply package, transport and storage

Upon delivery, carefully remove the packaging and
check the unit for transport damage and complete-
ness. Then put the product back into its packaging.
Supply package:
Filter PFG

Transport
Do not remove the protective wrapping until just
before installation.
TROX GmbH
Heinrich-Trox-Platz
47504 Neukirchen-Vluyn
Germany
Phone: +49 (0) 2845 2020
Fax: +49 (0) 2845 202265
E-mail: trox-de@troxgroup.com
Internet: http://www.trox-
technik.com
1
