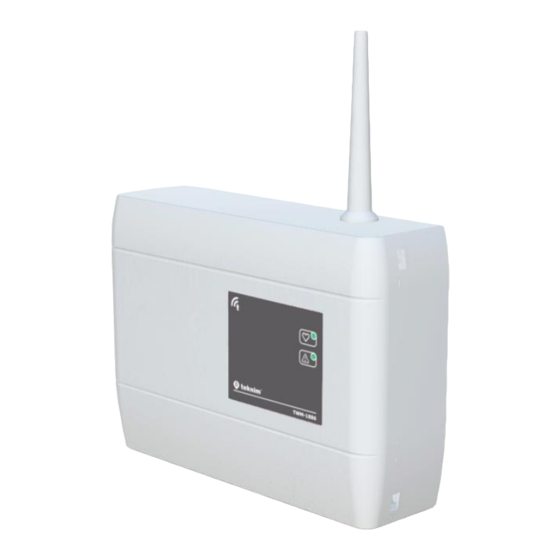

Summary of Contents for Teknim TWM-1886

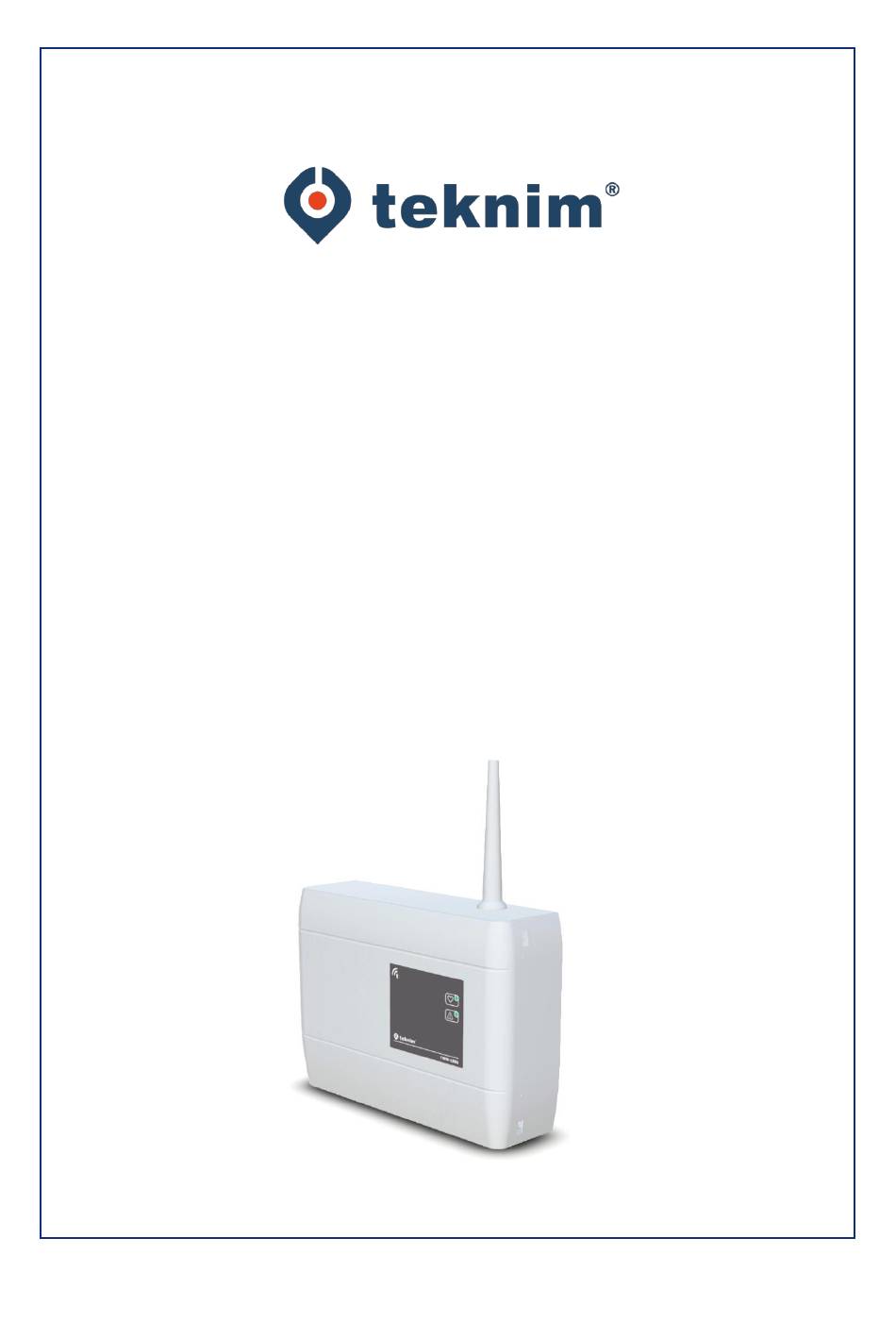

- Page 1 TWM-1886 Wireless Router Installation & User Manual Release Date: 15/09/2021 Rev:01...
-
Page 2: Table Of Contents
TWM-1886 WIRELESS ROUTER – R01 Contents General Definitions .......................... 2 Technical Specifications........................2 Installation ............................3 Mounting ..........................3 3.1.1 Cable Holes ........................3 3.1.2 Wall Mounting ......................... 4 Antenna Installation ........................ 4 Supply Connection ........................6 Module Interface ........................6 Functions ............................ -
Page 3: General Definitions
Wireless routers communicate with all devices on the network through the TLPWAN protocol. (1) TLPWAN (Teknim Low Power Wide Area Network) is a wireless communication protocol developed by Teknim which allows low power consumption devices on a wider area in a stable and safe manner by using two-way communication. Technical Specifications Network Supply Voltage 18Vdc –... -
Page 4: Installation
TWM-1886 WIRELESS ROUTER – R01 Installation Under this topic, the installation of TWM-1886 Addressed Wireless Coordinator module will be explained step by step in details. Please read all steps carefully. Mounting The following articles must be followed carefully in order to provide a good communication with the devices connected to the coordinator: •... -
Page 5: 3.1.2 Wall Mounting
Figure 1 – Mounting Hole Sizes Antenna Installation TWM-1886 Addressed Wireless Coordinator module is placed in the box with the antenna wire and antenna housing disassembled. Ensure a good installation of the antenna in order to provide a good communication between devices. Otherwise, there may be distance problems and communication performance losses. - Page 6 TWM-1886 WIRELESS ROUTER – R01 Figure 2 – Antenna Wire Installation Once the wire antenna is fixed into its place, push the antenna housing into the antenna input tightly to fix it into its place. Figure 3 – Antenna Housing Installation...
-
Page 7: Supply Connection
TWM-1886 WIRELESS ROUTER – R01 Supply Connection Pass the cables from cable holes and strip their ends at a proper length, then make the supply connections as shown in the following connection diagram. Make sure that the terminal screws are tightened firmly. -
Page 8: Functions
TWM-1886 WIRELESS ROUTER – R01 • Supply Connection: Wireless router needs an external supply. +24VDC supply voltage is provided through these terminals. • Serial Port: It is used for software update. • USB: It is used for monitoring and analysis programs. -
Page 9: Disconnection From Network
TWM-1886 WIRELESS ROUTER – R01 Disconnection from Network Disconnection of the router from the wireless network can be done from the coordinator as well as from the device itself. Follow the steps below to disconnect the router from the network. -
Page 10: Quick Installation
Software Update You may download the software files of all wireless devices under the “Firmware & Software” section of www.teknim.com.tr web site and carry out the update operation by using “Teknim Updater” software. 1922 Bilgi Elektronik San.
