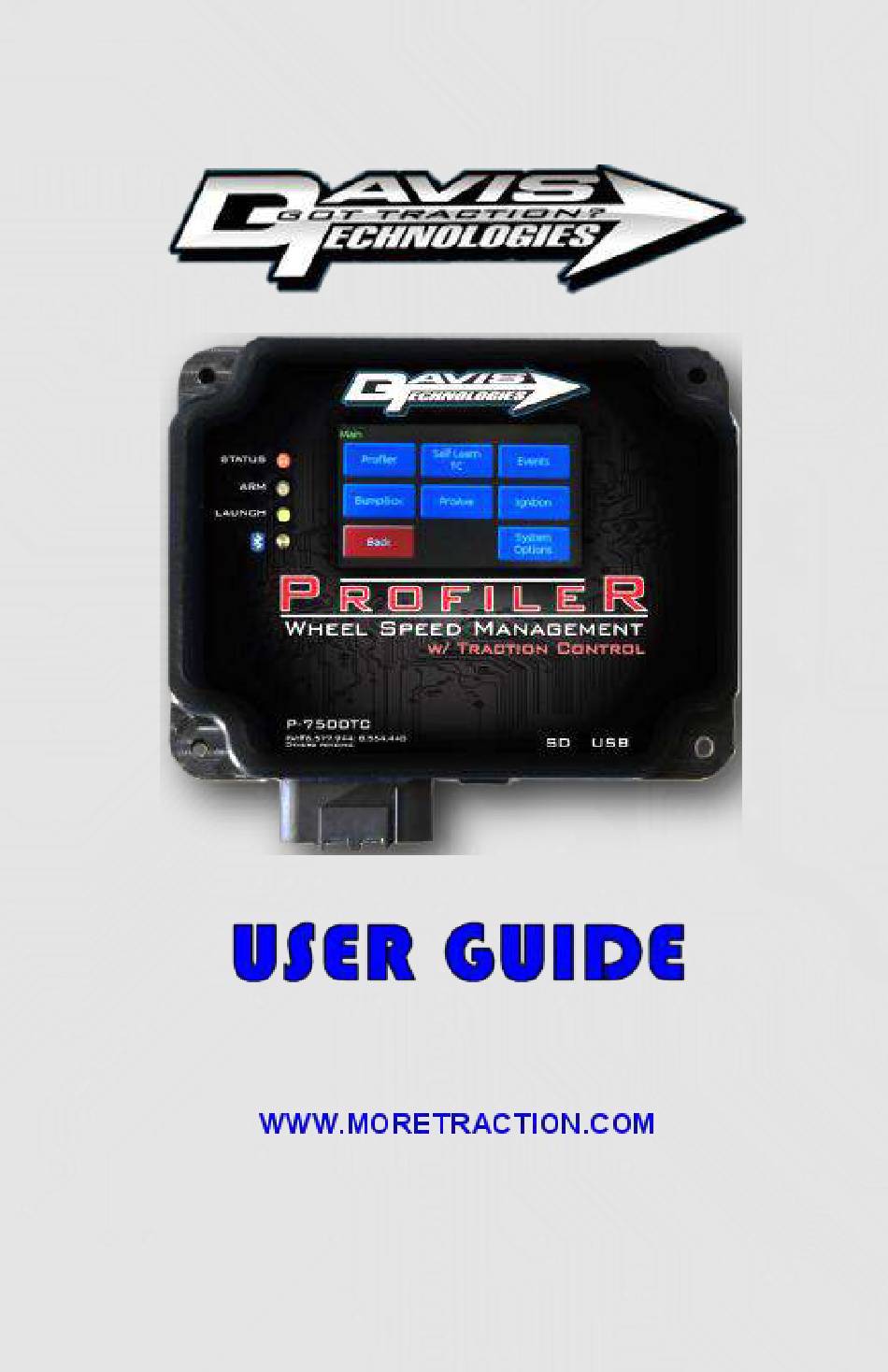

DAVIS TECHNOLOGIES Profiler User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Profiler and is the answer not in the manual?

Questions and answers

Related Manuals for DAVIS TECHNOLOGIES Profiler

Summary of Contents for DAVIS TECHNOLOGIES Profiler

  • Page 2 Profiler User Guide Copyright © 1999-2014 Davis Technologies, LLC. All rights reserved. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

  • Page 3: Table Of Contents

    2.2 COM Port Driver Installation ..........2-13 2.2.1 Windows XP ..............2-14 2.2.2 Windows Vista & Windows 7 ...........2-14 2.2.3 Windows 8 and 8.1 ............2-14 2.2.4 Updating to Latest Firmware ..........2-14 2.2.5 Profiler Default File Structure ...........2-15 2.3 Profiler Front Panel ..............2-17 2.3.1 Overview ................2-17...
  • Page 4 Profiler User Guide 2.3.2 Bottom of Profiler Case ............2-18 2.4 Hardware Installation .............2-20 2.5 Wiring ..................2-21 2.5.1 Driveshaft Sensor ..............2-21 2.5.2 Davis Sensor Ring/Sensor Installation Notes ....2-22 2.5.3 Installation to Racepak V300 ..........2-24 2.5.4 Installation to Racepak V300SD ........2-24 2.5.5 8 Magnet vs 4 Magnet Caveats ........2-24 2.5.6 Pin Extractor Tools ............2-24...
  • Page 5 4.0.3 Timing Window ..............4-17 4.0.4 Control Tab ...............4-21 4.0.5 Settings Tab ..............4-27 4.0.6 Events ................4-35 4.0.7 Help Tab ................4-43 4.0.8 Davis Technologies Support ..........4-44 4.1 Exporting Logger Data ............4-45 4.1.1 Importing Driveshaft Files ..........4-47 4.1.2 Building a Profile ...............4-49 4.2 Timing Relationships ..............4-56...
  • Page 6 Profiler User Guide Module 5: Profiler Tips ..............5-1 Appendix 1 License & SD Card Information ........1 Appendix 2 Windows XP COM Driver Install ........3 Appendix 3 Windows 7 COM Driver Install ........7 Appendix 4 Windows 8 COM Port Install ........13 Appendix 5 Windows 8.1 COM Port Install ........

  • Page 7: Module 1: Introduction

    Profiler User Guide Module 1: Introduction We would first like to thank you for your purchase of our product. We believe it is the best system available to you on the market today. This revolutionary system balances effectiveness with ease of installation, broad field of uses, and cost.

  • Page 8: How Does It Work

    This product differs somewhat from the other Davis Technology products in that the traction control portion of the Profiler uses a Windows PC based user interface for programming and transferring files to and from the user’s computer to the Profiler through a...

  • Page 9: Bump Box

    You are able to create and store multiple “profiles” for different tracks or conditions, etc. Again, a significant feature of the Profiler is that it not only can take power away through engine retards or selectively dropped cylinders, but can also add power by advancing timing as required.

  • Page 10: Why You Should Purchase Self-Learning

    Profiler User Guide The Profiler is designed for the pro level racer who wants the most advanced Self-Learning technology, combined with enhanced adjustability and multi stage corrections to cut power more precisely than a single stage unit. These units are perfect for racers looking for the unmatched precision of our Self-Learning units to get more aggressive with their tune ups, utilizing all of the adjustability that the Profiler has to offer.

  • Page 11: Self Diagnostics

    The Button and TPS event trigger options provide a deeper level of flexibility and power to the Profiler platform. You can now have one button control multiple functions depending upon the programmed logic you enter. Bump in the beams with the button and use the...

  • Page 12: Module 2: Installation

    Profiler User Guide Module 2: Installation Installation of the Profiler is straight forward but it’s extremely important to do it correctly the first time! Improper installation could result in poor system performance or damage to the system. Keep all wires away from any spark plug wires, coils, or other sources of electrical noise and heat.
  • Page 13 Special connector pin extractor tools (2)  Extra pins (2 styles)  Profiler software or download link  SD memory card with your Profiler licensing information  SD memory card reader adapter  Wiring connector Pin-Out data sheets (2) ...

  • Page 14: Software Installation

    Profiler User Guide Software Installation You will load the Profiler software on your Windows PC. Put the software files in a folder on your PC. To begin loading the software, double click the Profiler_setup icon . If you get the warning message box asking “Do you want to allow the program from an unknown publisher to make changes to this computer?”...
  • Page 15 Otherwise Select >Next. If you wish to have the Installer generate a Profiler desktop icon for you, check the box (recommended). Select >Next. This is simply an...
  • Page 16 Profiler User Guide After a few seconds, the following window appears: It is recommended to launch the Profiler software after the install is completed as you will be checking to ensure you have the latest software version. Select >Finish. The Profiler Editor program with default Profile will launch.
  • Page 17 Congratulations, you have successfully loaded the Profiler software! Next, ensure the latest version of Profiler software is loaded. In the upper portion of the Profiler window you will see a menu bar section that looks like this: Select the “Help” tab.
  • Page 18 You will return after the hardware installation and ensure the firmware in the Profiler is the latest version. It will be basically the same process only you will be checking the option boxes you unchecked during the software installation.

  • Page 19: Important Sd Card & License Information

    Profiler box. If you try to use another SD card and copy your license file to it, it’s not going to work on your Profiler or anyone else’s.

  • Page 20: Windows Xp

    2.2.4 Updating to Latest Firmware Once you have the COM port working and your PC is communicating with the Profiler, you can do the On-Line Update checking the Firmware options. In most cases your Profiler is shipped with the latest firmware already loaded. As updates are released, you will use this tool to download and update your firmware.

  • Page 21: Profiler Default File Structure

    Profiler User Guide Once the update is complete the Profiler application will open. At this point the main software suite is loaded and functional. Next, you will need to know where the various file folders have been installed on your computer.
  • Page 22 Once you begin to use the software to create data files, each file type will be stored in the associated folder for easy access through the Profiler user interface. At this point the file folders will be empty. What’s important to remember is the location of the folders on your computer so you can find them once you begin using the system.

  • Page 23: Profiler Front Panel

    Profiler User Guide Profiler Front Panel The Profiler product has built in touch screen and user interface. Several previous standalone modules have been combined into the product and are accessible through the touch screen on the front of the unit. Additional controls are available here as well helping eliminate connecting to a PC to perform some common functions such as turning traction control On/Off as well as other functions.

  • Page 24: Bottom Of Profiler Case

    Trigger Pulse LED Reset Button Remote Touch Screen Port On the bottom of the Profiler case there is a recessed LED that will blink every crank trigger pulse. (good diagnostic tool) SD Card The Profiler uses a common SD memory card for data & license information storage.
  • Page 25 Profiler User Guide USB Port A standard Micro-USB port is used for connecting a PC to the Profiler for the purpose of firmware updates and file upload/download functions. The USB cable is supplied with the kit. Reset Button There is a Reset button on the bottom of the unit. Use this to escape out of “Test Mode”...

  • Page 26: Hardware Installation

    Before mounting the Profiler, its a good idea after loading the Profiler PC software to use the USB supplied cable to connect your PC to the Profiler box. When you do this, the Profiler will be powered up and the splash screen becomes active.

  • Page 27: Wiring

    Depending upon what kind of power adder and ignition system you are using will dictate what the installation wiring is. The Profiler kit includes a wiring Pin-Out data sheet to use for reference. It’s also located in Section 2.5.10 of this guide.

  • Page 28: Davis Sensor Ring/Sensor Installation Notes

    Profiler User Guide accurate than using a magnetic field type sensor. If you have questions, call Davis Technologies for help. We know that the sensor is going to trigger on the machined edge, not here versus there because one magnet is stronger than the other.
  • Page 29 Profiler User Guide Take care to insure the gap is equal where the two halves meet as it can affect accuracy. DO NOT over tighten the sensor jam nuts! DS Sensor Wiring The driveshaft sensor should be wired as shown below.

  • Page 30: Installation To Racepak V300

    Profiler User Guide 2.5.3 Installation to Racepak V300 If you are integrating with a Racepak V300 Click >Appendix 6 2.5.4 Installation to Racepak V300SD If you are integrating with a Racepak V300SD Click >Appendix 7 2.5.5 8 Magnet vs 4 Magnet Caveats Some data logging systems will accept up to 8 pulses per revolution and some only allow 4 pulses maximum.
  • Page 31 Profiler User Guide Using the Large Plug Pin Extractor First you will need to remove the orange plastic end of the connector. Using the flat extractor tool with the two “fangs” facing towards the connector, you will want to position them so they are inside the little tabs on each end of the orange piece.
  • Page 32 Profiler User Guide Orient the plug as shown so the pin number markings are right side up. Stick one of the pointed ends of the tool into the wire end hole that corresponds to the pin you wish to remove (on top of the wire as shown).

  • Page 33: In-Car Wiring

    Yellow and White wires in this harness, plug them together. The Black and Red terminated wires are for the Profiler power. Plug it into the Profiler Red/Black wires that have a matching plug on the end. Davis supplied Ignition Harness.
  • Page 34 Run a white wire (Driveshaft Sensor Signal) to the rear of the car where you installed the DS sensor “Y” harness. Run the Tan wire to a switch that will arm the Profiler just prior to staging the car. You can install one in the car or put one on the rear of the car if you have someone turn on your data logger already.

  • Page 35: Profiler Basic Wiring Diagrams

    Section 2.5.10. If you are going to use the Profiler for any of the following functions add these wires to the plug. These are suggestions to consider.
  • Page 36 DS RPM Out 750mA Neg Orange (LP5) Launch Sync Trigger Out Blue 750mA Pos or Neg Active only if Profiler is armed & TB ON Shifter Control (HP1 or Blue or Green 1 or 2 HP2) 30A Pos Fuel Lean Out (HP1 or...
  • Page 37 It’s a very straight forward solution and installation. You will need to purchase a Racepak part # 230-VM-5VDIFF 0-5V Differential Input sensor. Wire this sensor to the Profiler pin 21 (Light Green wire) which is the analog timing correction output. This wire is NOT installed in the big plug but is loose in the wiring package included with the Profiler.
  • Page 38 Profiler User Guide Once you make a run with the Profiler Timing sensor in place, you will notice that when you open both the ProfilerTiming and EngineTiming Racepak channels, notice that they are independent of each other. Having both channels in the Racepak log makes it much easier to see how the two relate to each other during a run.

  • Page 39: Other Wiring Installation Notes

    Profiler User Guide 2.5.9 Other Wiring Installation Notes Here are just a few examples of how you might use the Profiler to control multiple functions in your race car. It is recommended you use the Profiler to control your Trans-Brake as there is an advantage.

  • Page 40: Plug Wiring Pin-Out Tables

    Profiler User Guide 2.5.10 Plug Wiring Pin-Out Tables Large connector Color Function White w/Blk Stripe Drive Shaft RPM VR Sensor Input - Green Drive Shaft RPM VR Sensor Input + Orange w/White Stripe Analog Input Green w/White Stripe Analog In for Pass Through...
  • Page 41 Profiler User Guide Orange DS RPM Output (LP5) 750mA - Blue Launch Sync Trigger Out 750mA (+ or -) Light Green Correction Analog Out 22** Yellow w/White Stripe Serial TX Yellow Ignition Tripper Output Battery Ground Black Battery Ground Battery Ground...
  • Page 42 Installing Latest Firmware You want to ensure the Profiler has the latest version of firmware. It should have the latest version when it was shipped to you but there will be updates later. You can check to see what firmware version you have by touching the flash screen at Power On.
  • Page 43 Profiler User Guide If there is a Profile loaded its name will display as shown here. Touch the Main button. Touch the Utilities button. Touch the About button.

  • Page 44: Touch Screen Menu Trees

    Touch Screen Menu Trees All of the Profiler touch screen menus are in an Appendix section at the back of the User Guide. You can use these as reference. Using the touch screen will get you familiar with navigating the menus and settings.

  • Page 45: Test Outputs

    Stationary Test The Stationary Test is used to cycle the Profiler through a simulated run using a loaded (active) Profile. If you want to see everything except timing corrections, run the car on jacks and simulate a run.

  • Page 46: Your First Profiler Run(S)

    It is recommended you create a “Test” Profile that has timing corrections minimized in order to eliminate the possibility of engine damage as well as getting a good idea of how the Profiler is responding to your driveshaft curve (Profile).

  • Page 47: Module 4: Profiler Editor

    Profiler User Guide Module 4: Profiler Editor Now that you have installed the Profiler hardware and software, this is where the fun begins! Let’s tap into its potential and start going quicker and faster. 4.0 UI Navigation Open the program by selecting the Profiler Editor icon that was installed on your PC desktop.

  • Page 48: Main Tool Bar

    Print to print the Profile screen Note: To Save to SD card, it must be taken out of the Profiler and inserted into a SD card reader or the supplied adaptor. See Appendix 1 The file folder and disk icons perform the same basic function as other PC programs.
  • Page 49 The top portion of the main tool bar contains a series of “Tabs”. When the Profiler Editor main screen opens it will default to the “Profile” tab as shown above. This displays the main tool bar.
  • Page 50 Profiler User Guide Chart Tools are used for plotting the Profile graphing. Grips is a term that is used in the Profiler to describe individual data points. A thousand Grips are typically used to plot a driveshaft curve. This is what Grips look like when plotted. Each individual Grip can be moved, or a range of Grips can be selected and moved, curved, smoothed, etc.
  • Page 51 4.7 seconds the retard was -.45 degree. The Profiler gives you precise control over engine timing! When a grouping of Grips is selected, the Smooth function becomes available. This is a powerful tool. If...
  • Page 52 Profile. A Profile can be created from either a single set of driveshaft data or from multiple driveshaft curves. This is another impressive feature of the Profiler as it can use several passes of driveshaft data and create a single profile by averaging all of them together, it’s that easy! From that point you can customize the...
  • Page 53 Profiler User Guide Profile. You can select or de-select the runs you choose to display. By right mouse clicking on any of the imported runs, you will see this popup window appear. This provides you with several options. Most of these options are self-apparent as to their function so we will only discuss the one’s that...
  • Page 54 Profiler User Guide Select > Color option will present you with a color pallet to choose from for the chart data you selected. Select >Adjust Zero option allows you to fine- tune the zero position of the imported run you selected.
  • Page 55 Profiler User Guide The Save to Library option will store the selected run data into the \Library\Runs folder where data logger and previously saved runs are stored. Selecting the Invert Legend Order reverses the order of the items displayed in the legend window.
  • Page 56 Profiler User Guide Zone Settings is a strong feature of the Profiler. Each Zone will make corrections in timing as the car goes down the track. This allows you to program multiple “zones” in your Profile, and then apply settings to each zone.
  • Page 57 Ramp In (Implemented in software release Version 2.1.0.293). The range of settings is 0-500. The Ramp In function gives you the ability to control the rate at which the Profiler ramps the timing back in after a correction. This makes for a smoother application rate of correction.
  • Page 58 Profiler User Guide At the present time, to implement Ramp In, it is accessed through the Profiler touch screen only. From the main flash screen, Select >Profiler Select >Ramp-In Enter the Ramp-In value you wish to use. As a “rule of thumb” it is suggested to start with a value 10X your maximum Zone retard values.
  • Page 59 Profiler User Guide Once your zones are programmed, the Show Ranges button will display the Zone Settings along with the Profile trace. Zooming in, you can see much greater detail of how the zones appear in comparison with the Profile.
  • Page 60 Profiler User Guide Example of Zones in the Profile window. The Delete Zone and Rename Zone functions are self-explanatory. Each Zone has a set of parameters for timing Advance and Retard as to the amount of timing that will be added or retarded plus you can set the RPM range for each as to how many driveshaft RPM above and below the Profile curve they are applied.
  • Page 61 Cursor box to appear on the screen. The Cursor box can be moved anywhere within the Profiler screen area and provides real time feedback from the mouse movement in the Profile screen for Time and driveshaft RPM.

  • Page 62: Maximizing Screen Windows

    Profiler User Guide graphs. Let’s take a look at an example. In this case, the orange line is your current Profile and the green line is a Run graph. The red circle will automatically follow your Profile line and the end of the handle is what you move with the mouse to the other point you wish to use as a reference.

  • Page 63: Timing Window

    Profiler User Guide With the Timing Window portion of the window selected, Select >Full Screen. Return to the normal screen size, Select >Full Screen again. 4.0.3 Timing Window The Timing window can be toggled in and out of the main screen.
  • Page 64 Trigger Position This is a reference point for the highest amount of timing you want to run the engine. (with the Profiler turned OFF, set this with your timing light), i.e. as the example above set timing to 30º. Advance Limit This is the highest timing reference you want with maximum timing Profiler will advance.
  • Page 65 Set this value to the minimum number of degrees timing you want the Profiler to retard from your Static Timing. Example, if static timing is 28º and you set your Retard Limit to 18º, the Profiler can pull out up to 10º maximum timing retard.
  • Page 66 & timing changes. There are several other Tabs at the top of the Profiler window. The Profile tab you just discovered is where most of the work is done to build driveshaft and timing profiles.

  • Page 67: Control Tab

    Now Ctrl >Right click which will then open the window below. In this case “Add Grips Between” was selected. You can see where the Profiler added grips between the points selected. As mentioned, this will increase the resolution of the data the profiler is working with,...
  • Page 68 Uploading Profiles to Profiler Once you build Profiles, you will need to Upload a Profile in order to use it for a run. From the main Profiler screen, go to the menu bar Control tab and Select >Upload See the Software Installation section for proper Com port driver installation and troubleshooting if you are having issues communicating between your PC and the Profiler.
  • Page 69 Loading and Selecting Multiple Profiles The Profiler can store up to 6 Profiles that can quickly be loaded through the touch screen utility. If track conditions change, you maybe want to try a quicker Profile because you ended up getting a single run at the last moment, etc.
  • Page 70 Selecting >Run Data will download Run Data and Corrections data. You will see the data saving indicator for 10 seconds or so on the Profiler touch screen. Once the data is saved, turn the power back off, and connect your PC to the Profiler with the USB cable.
  • Page 71 You can see the base timing profile Grips as well as the downloaded data timing corrections. Anything above the base timing profile is where the Profiler added timing and everything below is where it retarded timing. You can load multiple correction runs into the window for comparison.
  • Page 72 Over time you will likely refine it more as you get more data. What quickly becomes apparent is the Profiler is telling you what your car wants to go quicker and faster which is a huge plus in tuning your engine and chassis.

  • Page 73: Settings Tab

    Notice more grips were added in this area, in addition to the smoothing to increase the data resolution. 4.0.5 Settings Tab The Settings tab provides access to configure Profiler modules. Selecting the tab will open the window below: The Show All button opens the windows for all of the options with one click if you need to access all of them.
  • Page 74  ProAxe – Basically it’s a delay-box with an adjustment range of 0 to 9.999 seconds. Set it to 0 if you are not using it or if you are NOT using Profiler to control the Trans-Brake  Bump Box – The Bump Box setting controls the aggressiveness of each “bump”.
  • Page 75 Profile and toggling whether timing corrections are enabled or disabled. NOTE: If you choose to run the car with the Profiler timing curve & corrections disabled use the following settings: 1. Uncheck Use Run Curve Profile and Corrections Enabled 2.
  • Page 76 Profiler User Guide 4-30...
  • Page 77 Profiler User Guide System Options Serial Comm – Sets whether you will connect to the Profiler via Bluetooth or a USB cable Arming Modes: Always Armed - The Profiler will be armed any time there is power applied. Arm Switch – A toggle switch is being used.
  • Page 78 8 circuit car controller board that activates the trans- brake circuit. That input wire needs to be Negative when activated. That is the Profiler Blue wire Pin 20. Speedwire Systems™ Integration see Appendix 11 Driveshaft Mode – Some systems such as Big Stuff 3 only support 2, 4, or 40 pulse inputs so use this function to configure what is required.
  • Page 79 Events in addition to the BumpBox. Whatever Channel is selected will be made active by pressing the button at any time the Profiler is powered up prior to trans-brake and run. For example: You might want to shift the transmission during the burnout or activate some other Event you have programmed prior to staging and launch.
  • Page 80 NOTE: These Settings will transfer with the uploaded Profile’s from your PC. You can verify by using the touch screen menu’s to view current settings. If you make a change on the Profiler using the touch screen, and you download a Profile, those changes will be reflected in the file.

  • Page 81: Events

    Profiler User Guide 4.0.6 Events The Profiler provides 3 high power (30 Amp) Positive and 1 Negative programmable outputs for your use. It also has 4 low power (750 mA) Negative outputs. See the Wiring Plug Pinouts table in Section 2.5.10 for the detailed connection information.
  • Page 82 Profiler User Guide The screen capture above is for one of the high power events. As you can see, there is also a chart below that reflects the programmed settings. The one shown is using default settings. Name the event Pulsed Hz setting if needed.
  • Page 83 Off will do nothing when Main power is switched On to the Profiler.  On will make event happen as soon as Main power is applied to the Profiler. Pre-Launch State  Off will do nothing when Trans-Brake is applied.
  • Page 84 Cancel will cancel any TPS related Events after pedaling. The TPS Mode can be used in conjunction with controlling a multi-kit nitrous system for example. Once again this shows the power and flexibility of the Profiler multi-function platform. Event Behavior Graphic Display When you program an event, at...
  • Page 85 Appendix 9 Save Events/Settings – This option allows you to save your Profile Events & Settings into the Profiler Library so you can import them into another Profile without having to input all the settings again. Show Event Charts Show Event Charts will display a summary of all your programmed Events.
  • Page 86 Profiler User Guide  Event HP2 to turn on the water injection at .7 seconds and ramp it to 1.3 seconds to 100% the rest of the run.  Event 3 to activate the air chutes with the Button beginning at 5 seconds to the end of the run.
  • Page 87 Profiler User Guide Connected Event Example “Connected” meaning Event 1 & Event 2 are interacting directly with each together. Example: In this case if Event 1 ended at .5, Event 2 has to begin at .5 to be connected. ...
  • Page 88 It enables you to have a single, programmable, multi-functional button that triggers multiple component control functions, all programmed and controlled within the Profiler. Use your imagination with this feature, there can be lots of uses for this. The button connects via the Pink Profiler wire.

  • Page 89: Help Tab

    Editor software level, and view the latest Profiler User Guide. Select >About icon will show you the current version of Profiler software that you are currently using. You used the “Check Updates” function when you installed the Profiler software.

  • Page 90: Davis Technologies Support

    Profiler User Guide 4.0.8 Davis Technologies Support Other than a phone call, the “Team Viewer” is your direct on-line connection to Davis Technologies for support. Once you are directed by Davis to activate your Team Viewer, you will have a direct live Internet connection that you and Davis can share desktops, video camera, etc.

  • Page 91: Exporting Logger Data

    Exporting Logger Data In order to build custom Profiles, you must load driveshaft data files into the Profiler as a starting point. This is much easier than having to manually build a driveshaft curve as a starting point. Racepak log files will be used in the following example.
  • Page 92 Profiler User Guide Select >File, then >Print/Save Ascii Data from the menu. This window will display. Select >Print/Save Ascii Data Select Comma and set Set >X Sampling Interval >0.01 as shown in this example. Select >Ok This window will open asking...

  • Page 93: Importing Driveshaft Files

    4.1.1 Importing Driveshaft Files Start the Profiler software and open an existing .pro file or start one. Select >TC button in the upper left corner of the Profiler screen. Select either an existing .pro file or Select >New to start a new Profile.
  • Page 94 Select >Import to bring in the data logger driveshaft data file you exported. Note: Once you make a run with the Profiler logging the data, you can use that data from the Run folder as well to create a new Profile.

  • Page 95: Building A Profile

    Now that you have the imported driveshaft curve or curves, it’s time to put the Profiler to work. The following will get you started but will not touch on every single option available.
  • Page 96 Profiler User Guide The “Create Profile” window has some options to choose from. The settings shown are a good starting point. The location options (Tops, Upper, etc.) are typically used if you have several runs open and you want the Profile to be created at the upper or lower range of those files as it averages them.
  • Page 97 At this point, you have a couple of choices of how to smooth this dip, one is manual, the other uses one of the powerful features of the Profiler which is “Smoothing”. You can use the mouse to smooth by holding down the left mouse button on the bottom of the dip and moving the selected grips to wherever you choose.
  • Page 98 The Profiler software makes this easy. Toggle the grips back on by selecting the Profile in the legend box.
  • Page 99 Next, let’s add some zones which is a powerful feature of Profiler. As described earlier, multiple zones can be applied to a Profile, each with its own set of properties.
  • Page 100 (maybe more aggressively for example). This is the power and flexibility of the Profiler platform. To add another zone simply Select >Add Zone button. Notice each zone has its own color (which can be changed). Also notice that your Profile screen now has the associated zone colors dividing the time that you entered.
  • Page 101 Profiler User Guide You now visually see the various RPM ranges for the Advance & Retard functions. If you forgot what these are, they are covered previously in this guide. The Range settings are in the Correction Ranges section of the tool bar.

  • Page 102: Timing Relationships

    Profiler. The Profiler has no idea of what the ignition controller is doing. All it knows is if the driveshaft speed is above or below our plotted Profile curve it’s going to advance or retard timing.
  • Page 103 Profiler turned ON. This one of the reasons the Profiler is wired so whenever the ignition is on, the Profiler is on. Start the car and with a timing light, your timing should equal your Static Timing setting.

  • Page 104: Module 5: Profiler Tips

    The higher the setting the more cylinders it will drop.  Insure NO grips are below zero! If the Profiler sees a grip below zero, the Profile will not upload from your PC to the Profiler. If you keep getting error messages or file upload issues, go back and check your Profile near the zero time point.
  • Page 105  After downloading the Corrections data, as with any run data, pay attention to what it’s telling you. If the Profiler made a timing advance and the car responded favorably, you will likely want to adjust your Profile curve up a little in that area.
  • Page 106 Timing) in order to minimize the amount of corrections. In the example below, you can see that the Profiler added timing from .2 to .8 in the run. In this case, you may want to adjust the base timing curve up in that area to minimize corrections.
  • Page 107 PC device.  Don’t forget about the small recessed LED on the bottom edge of the Profiler. Use this as a diagnostic tool to see if the box is seeing crank trigger pulses. It should pulse every crank trigger signal.
  • Page 108 Profiler User Guide Grid) if you have one and one end of the panel mounted USB pass-through plug. This eliminates having to ever plug or unplug the Micro USB port in the box(es). You then use a standard USB A Male to USB A Male cable from your PC to the panel mount.
  • Page 109 Sometimes it is actually better just letting the Profiler do its thing, and make all the corrections it needs to. The corrections log may not be the smoothest looking, but the ET slip says in many cases it may be quicker.

  • Page 110: Appendix 1 License & Sd Card Information

    Insert the card into the Adapter supplied in the Profiler kit or if you have a SD card reader. Connect or insert into your PC. Open the Removable Disk with Windows File Explorer to see the files on the card.
  • Page 111  .PRB files are Profiles  On your PC, go to the Profiler Library >Profiles and select the .emr file you just created. Copy that .emr file to your Profiler SD card which will load the Profile. Put the SD card back into your Profiler and it will recognize the emergency file you created.

  • Page 112: Appendix 2 Windows Xp Com Driver Install

    Profiler User Guide Appendix 2 Windows XP COM Driver Install To verify if the Davis COM Port was automatically installed during the software installation, perform the following checks below. NOTE: You MUST have Windows XP Service Pack 3 installed or the driver will NOT load.
  • Page 113 If there is nothing indicating something is incorrect, it has loaded correctly and your driver should be operating normally. Remember the COM number as you will need to set that in the Profiler. If the driver looks Ok, Stop here, otherwise perform the steps below.
  • Page 114 Profiler User Guide A new window will open asking where you want to source the driver from. Select the option Don’t search, I will choose the driver to install. Select >Next Another window will open showing you a list of drivers available.
  • Page 115 Profiler User Guide Select > Davis COM Port Select >Next You will likely get a Compatibility window open. Select >Continue Anyway Once the driver has installed successfully you should see the window below. Select >Finish Appendix-6...

  • Page 116: Windows 7 Com Driver Install

    To verify if the Davis COM Port was automatically installed during the software installation, perform the following checks below. 1. Connect the Profiler to your PC via the supplied USB cable. The splash screen should light up signifying its got power.
  • Page 117 Profiler User Guide 5. If you see an exclamation point with a yellow background next to the port, it hasn’t loaded correctly. Follow one of the two options described next. 6. Right mouse Click on the port. You will see a pop-up window with an option “Update Driver Software…”...
  • Page 118 Profiler User Guide 8. Select >Browse my computer for driver software 9. You will see the window below. Enter > C:\Windows\inf and Click >Next If the driver is in the directory, it should load automatically and tell you the DAVIS COM Port is installed and loaded.
  • Page 119 Device Manager, find the Davis COM Port and check the settings. The default COM port settings will work with the Profiler. Right Click on the Davis COM Port name to get the Properties menu.
  • Page 120 Profiler User Guide 5. Select >”Port Settings” Alternative Method 2 When your Profiler software was installed, one of the folders included a Drivers folder that has the DAVIS_TECH_COM driver. Appendix-11...
  • Page 121 Profiler User Guide For the next step, you must have your Profiler connected to your PC with the USB cable. In the Device Manager window, Right mouse click on ‘Ports’ devices. Select ‘Scan for hardware changes’. It should find your Profiler connected and display the window below.

  • Page 122: Windows 8 Com Port Install

    Appendix 4 Windows 8 COM Port Install At this point connect your Profiler to the PC with the USB cable. 1. Hold down the Windows key on your keyboard and press the letter C to open the Charm menu, then click the gear icon (Settings) 2.
  • Page 123 Profiler User Guide 3. Click >General 4. Under Advanced Startup, Click >Restart Now 5. After restarting, Click >Troubleshoot Appendix-14...
  • Page 124 Profiler User Guide 6. Click >Advanced Options 7. Click >Windows Startup Settings Appendix-15...
  • Page 125 Disable driver signature enforcement from the list by typing the number 7 on your keyboard. 10. NOTE: The latest versions of Profiler Editor now have a Windows signed driver so you may NOT have to disable signed drivers to complete a successful installation.
  • Page 126 Profiler User Guide 11. After restarting, you will be able to install the Davis_COM driver normally; however Windows will display a warning message. When the warning appears, Click >Install this driver software anyway. NOTE: The next time you restart your computer, driver signature enforcement will be in effect again.

  • Page 127: Windows 8.1 Com Port Install

    Appendix 5 Windows 8.1 COM Port Install At this point connect your Profiler to the PC with the USB cable. NOTE: The latest versions of Profiler Editor now have a Windows signed driver so you may NOT have to disable signed drivers to complete a successful installation.
  • Page 128 Profiler User Guide 3. In the Troubleshoot screen Select >Advanced options 4. In the Advanced options screen Select >Startup Settings 5. You are informed that you are about to restart in order to change several Windows options, including Disable driver signature enforcement.
  • Page 129 Profiler User Guide 6. Your computer restarts again and displays nine startup settings, including Disable driver signature enforcement. As the menu says, use number keys or function keys F1-F9. Select option 7 7. Your PC will reboot to Windows Appendix-20...
  • Page 130 Profiler User Guide 8. Use Windows File Explorer and navigate to the This PC directory 9. At the top of the “This PC” screen Select >System properties 10. You should see the screen below. Select >Device Manager Appendix-21...
  • Page 131 Profiler User Guide 11. On the Devices screen, under Ports, you should see Davis COM Port Right mouse click on the name and Select >Update Driver Software You will get a Windows Security pop-up window 12. Select >Install this driver software anyway 13.
  • Page 132 When your Profiler software was installed, one of the folders included a Drivers folder that has the DAVIS_TECH_COM driver. For the next step, you must have your Profiler connected to your PC with the USB cable. In the Device Manager window, Right mouse click on ‘Ports’...
  • Page 133 Profiler User Guide Select ‘Scan for hardware changes’. It should find your Profiler connected and display the window below. Select ‘Browse my computer for driver software’ When the window opens enter the following address in the Search location box: C:\Users\(your user name)\Documents/Davis Technologies\Drivers Select >Browse...

  • Page 134: Integration With Racepak V300

    Profiler User Guide Appendix 6 Integration With Racepak V300 The older V300 Racepak product and some other data loggers have a 2 wire input plug for the driveshaft sensor wiring. The V300 can normally only accept a 4 pulse input signal from the driveshaft sensor, however if you use a Hall Effect 3 wire sensor, it will handle 8 pulses.
  • Page 135 Racepak or other data logger. Plug that into the other 3 pin ② connector in the supplied harness. Run a White wire from the Profiler pin 6 to the Signal pin in ③ connector shown above. This is the 2 pin connector.

  • Page 136: Appendix 7 Integration With Racepak V300Sd

    Racepak or other data logger. Plug that into the other 3 pin ② connector in the supplied harness. Run a White wire from the Profiler pin 6 to the Signal pin in ③ connector shown above. This is the 2 pin connector.

  • Page 137: Appendix 8 Touch Screen Menu Trees

    Profiler User Guide Appendix 8 Touch Screen Menu Trees Touch screen menu trees are here for reference. Navigate the menus to get familiar with them. You will need to set values for the features you choose to use. The basic installation requires minimal settings.
  • Page 138 Profiler User Guide Appendix-29...
  • Page 139 Profiler User Guide Appendix-30...
  • Page 140 Profiler User Guide Appendix-31...
  • Page 141 Profiler User Guide Appendix-32...
  • Page 142 Profiler User Guide Appendix-33...
  • Page 143 Profiler User Guide Refer to Section 4.0.6 for detailed information on each Event Parameter setting.  HP Events can be pulsed (Duty Cycle) and ramped while LP Events cannot.  HP Events are rated at 30A capacity.  LP Events are rated at 750mA capacity.
  • Page 144 Profiler User Guide Appendix-35...
  • Page 145 Profiler User Guide Appendix-36...
  • Page 146 Profiler User Guide Appendix-37...
  • Page 147 Profiler User Guide Appendix-38...
  • Page 148 Profiler User Guide Appendix-39...
  • Page 149 Profiler User Guide Appendix-40...
  • Page 150 Profiler User Guide Appendix-41...
  • Page 151 Profiler User Guide Appendix-42...
  • Page 152 Profiler User Guide Appendix-43...

  • Page 153: Appendix 9 Events Setup & Examples

    Profiler User Guide Appendix 9 Events Setup & Examples The following are examples of how you might use and set up Events to control functions in your car. Profiler Shift Control This following is an example of using HP1 to control an air or electric 3 speed shifter.
  • Page 154 The following example is more complex and uses Linked and Ramped Events to control a non-specific device. It shows the flexibility and power of the Events functions in the Profiler. The Profiler can perform many of the functions of multiple external boxes and modules in your car and minimize wiring, weight, etc.
  • Page 155 Profiler User Guide until 3.5 seconds where it is ramped off at 4 seconds. The Event is programmed as shown below: This illustration shows how the Events will respond. Appendix-46...
  • Page 156 Profiler User Guide Low Power Events The four Low Power outputs have a different set of setting parameters available than the High Power one’s. Below is the parameter window for LP5 as an example. Each output has options for up to 8 different “Event” settings.
  • Page 157 Profiler User Guide Below is an example of Low Power Event 1 Settings are the same as for the High Power Events minus the ability to set Pulsed Hz, Duty Cycle, & Ramping. Again they are all Neg outputs rated at 750mA.

  • Page 158: Appendix 10 Installing Bump Box & Trans-Brake

    “Bump” button to move into the beams, then release the Trans-Brake as normal. You will connect the Bump button to the Profiler using the Pink wire pin 10 in the 26 pin harness plug on the Profiler. The BumpBox activation wire can be configured in the Settings >System Options...
  • Page 159 30 Amp Ground Switching Install Use the following installation guideline for installations using a 30A ground switching trans-brake. The 30 Amp Ground switching comes from the Profiler Pin 6 (Orange wire) per the connector pin-out table. Do NOT use any type of mechanical relay.

  • Page 160: Appendix 11 Speedwire Systems™ Integration

    Arming Profiler If you have a Speedwire Systems™ nitrous controller you can wire your Profiler arming to the Nitrous arming circuit so any time it’s turned on, the Profiler will automatically armed to eliminate the need for an external switch of some kind.
  • Page 161 Speedwire 8 circuit car wiring controller (Trans-Brake post) such as the MSD Dark Blue wire, etc. Connect the Profiler Blue wire pin #20 (Launch Sync Trigger Out) to the Speedwire 8 circuit board header as shown below.
  • Page 162 Now when the Trans-Brake button is activated, the Speedwire Systems™ circuits for Nitrous lock-out and Trans-Brake connected wires will activate as normal, plus you will have the advantages of the Profiler platform controlling the Trans-Brake.  Very quick TB solenoid release (all solid state push-pull) ...

  • Page 163: Appendix 12 Disclaimer

    DAVIS TECHNOLOGIES PRODUCTS ARE FOR CLOSED COURSE USE ONLY The following terms and conditions apply to all products manufactured and sold (“Products”) by Davis Technologies, LLC (“Davis”). ASSUMPTION OF RISK – The Products are designed and manufactured for use on closed courses only. The purchaser and/or...
  • Page 164 Profiler User Guide any oral information or statements provided by Davis or in any forum or other source of information regarding the Products. It is the Purchaser and/or end user’s responsibility to inspect and verify the dimensions, specifications, and performance of the Products as being appropriate for the use to which the user will put them prior to any actual installation and/or use.

  • Page 165: Contact Information

    Profiler User Guide Contact Information Technical Support and Sales may be reached at: Davis Technologies, LLC. PO Box 8250 Asheville, NC. 28787 (828) 645-1505 (828) 645-1525 fax E-mail: support@moretraction.com Web: www.MORETRACTION.com www.MORETRACTION.com Appendix-56...
