Read through carefully and understand these instructions
before use.
Edition 2 July, 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S1P-FF03-180 and is the answer not in the manual?

Questions and answers

Summary of Contents for DCA S1P-FF03-180

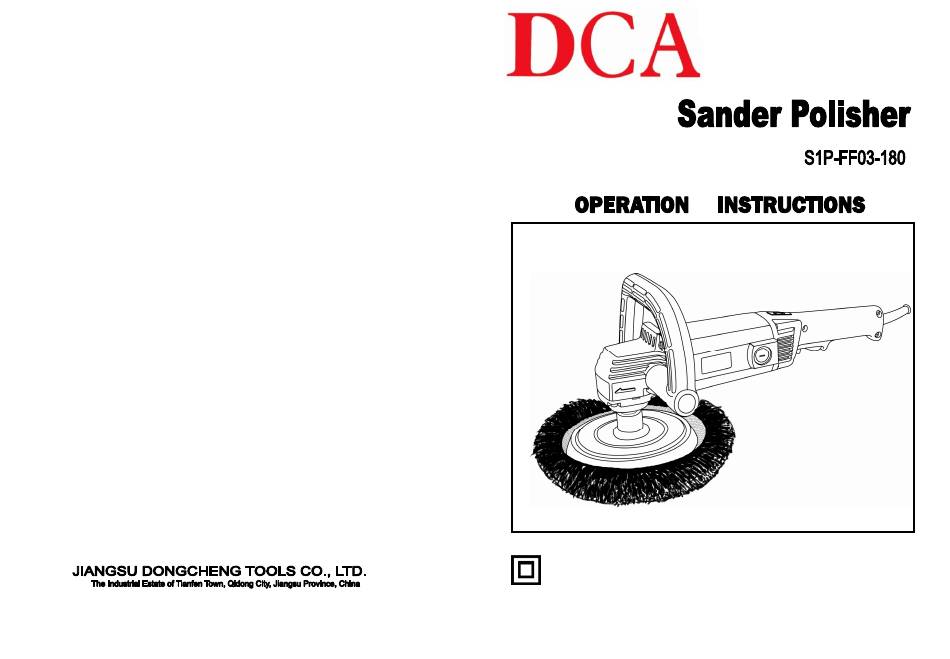

  • Page 1 Read through carefully and understand these instructions before use. Edition 2 July, 2011...

  • Page 2: General Safety Rules

    Personal Safety GENERAL SAFETY RULES 9. Stay alert, watch what you are doing and use common sense when operating a (For All Tools) power tool. Do not use tool while tired or under the influence of drugs, alcohol, WARNING! Read and understand all instructions. Failure to or medication.

  • Page 3: Specifications

    20. Maintain tools with care. Keep cutting tools sharp and clean. Properly SPECIFICATIONS maintained tools with sharp cutting edges are less likely to bind and are easier to control. Rated Power Input 1020 W 21. Check for misalignment or binding of moving parts, breakage of parts, Rated Speed 1000-3600 r/min and any other condition that may affect the tools operation.

  • Page 4: Instructions For Operation

    Ventilate your work area adequately when you perform sanding operations. Installing or Removing the Wool Bonnet 12. Use of this tool to sand some products, paints and wood could expose user to dust containing hazardous substances. Use appropriate respiratory To install the wool bonnet, first remove the dirt on the rubber pad. Then fix the spindle protection.

  • Page 5: Sanding Operation

    Higher speed is obtained when the dial Do not apply the entire surface of the abrasive disc to the workpiece. In general, is turned in the direction of number 6. keep the abrasive disc at an angle of 15 to 30 degrees to the workpiece surface. (Fig. And lower speed is obtained when it is turned in the direction of number 1.

  • Page 6: Auxiliary Handle

    Use a screwdriver to remove the brush Auxiliary Handle holder caps. Take out the worn carbon Always be sure that the auxiliary brushes, insert the new ones and secure handle is installed securely before the brush holder caps. (Fig. 9) operation.

  • Page 7: General View

    GENERAL EXPLAINATION OF VIEW Abrasive Disc Motor Housing Bearing Box Nameplate Pan Head Screw M5×14 Carbon Brush Holder (With Washer) Seal Packing Carbon Brush Felt Packing Brush Holder Cap Ball Bearing 6202DDU Handle Set (Incl. Fig. 47) Bearing Cover Rubber Pin Pan Head Screw M4×10 Cord Guard (With Washer)
