Summary of Contents for Tesla GB

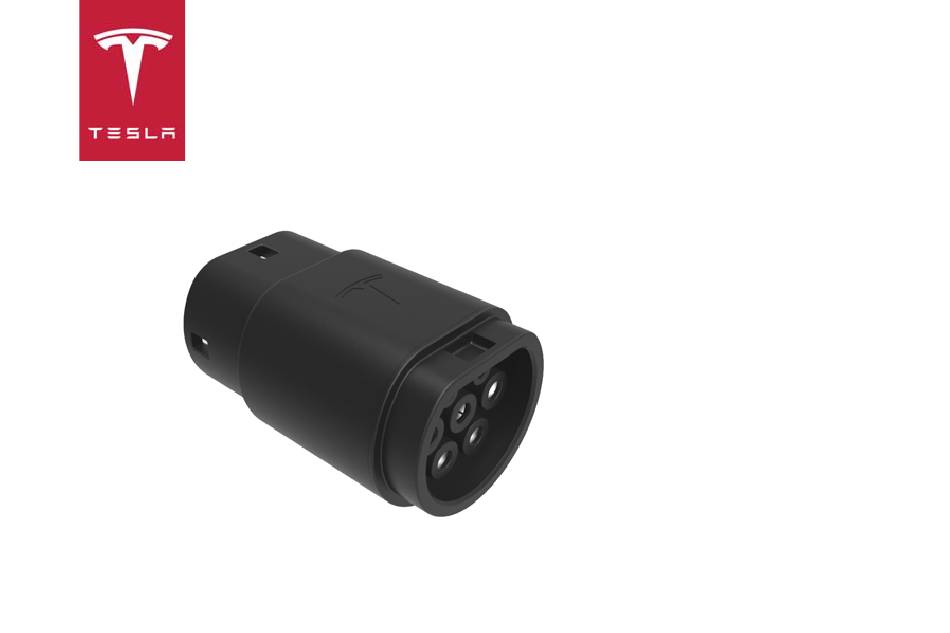

- Page 1 GB AC ADAPTER OWNER’S MANUAL...
- Page 2 COMMUNICATIONS REGULATIONS RADIO AND TELEVISION INTERFERENCE The equipment described in this manual can generate and radiate radio-frequency energy. If it is not installed and used properly, and in accordance with Tesla’s instructions, it can interfere with radio and television reception. COMPLIANCE The GB AC Adapter complies with the Chinese standard GB/T 20234.2-2015.
- Page 3 The GB AC Adapter is designed only for charging the European-based Tesla Model S and Model X with Type 2 plugs. Do not use it for any other purpose or with any other vehicle or object. The GB AC Adapter is intended only for vehicles that do not require ventilation during charging.
- Page 4 WARNINGS Cont’d • If rain falls during charging, do not allow rainwater to run along the length of cable and wet the GB AC Adapter or the vehicle’s charging port. • If the GB AC charging station’s charge cable is submerged in water or covered in snow, do not insert the GB AC Adapter’s plug.
-
Page 5: Specifications
Enclosure Rating IP55 Operating -22°F to 122°F Temperature -30°C to +50°C Storage -40°F to +185°F Temperature -40°C to +85°C CAUTION: Do not operate or store the GB AC Adapter in temperatures outside the ranges listed above. GB AC ADAPTER OWNER’S MANUAL... - Page 6 Attach the GB AC Adapter to the end of the charger’s charge cable and use the latch to lock the Push the charge port door closed.
-
Page 7: Resolving Faults
GB AC Adapter, check the display on your Tesla vehicle for information about any error that may have occurred. Always check the status of the charger. Although the GB AC Adapter is designed to work with all GB/T 2015 chargers, it may be incompatible with some chargers. - Page 9 ©2014-2017 TESLA, INC. All rights reserved. All information in this document is subject to copyright and other intellectual property rights of Tesla, Inc. and its licensors. This material may not be modified, reproduced or copied, in whole or in part, without the prior written permission of Tesla, Inc. and its licensors. Additional information is available upon request.
- Page 10 8th Floor, Tower 3 China Central Place No.77 Jianguo Road Chaoyang District, Beijing Document Part #: 1115367-00-B...
