Radio flooding
detector

Description

This device generates an alarm signal when the contacts of the corresponding sensor make
contact with water.
The signal is then processed by the alarm central unit, which activates the siren and the
Telephone communicator (if installed), for sending a telephone message.
Better protection can be ensured by installing a relay actuator within the Burglar-Alarm
system, which will order an electrovalve to shut off the main water supply in case of flooding.
Two front pushbuttons can be used to interrupt the alarm signalling and to test the operation
of the sensor.

Technical data

Power supply:
Operating temperature:
Minimum battery duration:
Radio frequency:
Range:
(metal, concrete walls and metal plates reduce coverage)
Modulation:

Conformity declaration

Items HA/HB4619 and L4619 comply with the essential requirement of directive 1999/5/CE as
they meet the following standards:
- ETSI EN301 489-3
- ETSI EN300 220-3
Year of approval of the CE mark in accordance with the above directive: 2007

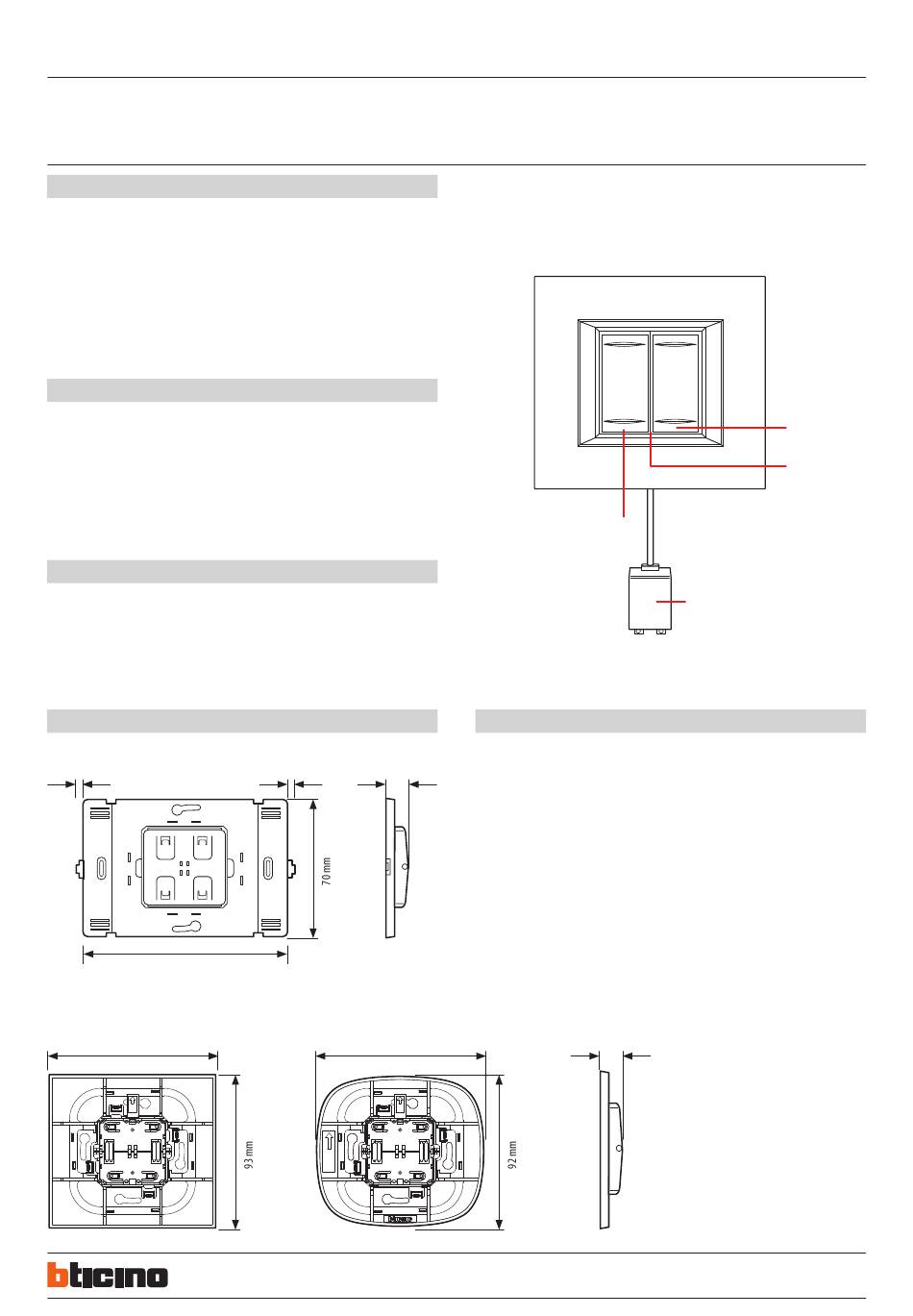

Dimensional data

L4619
4 mm
115 mm
HA/HB4619
100 mm
Battery 3 V type CR2032
5 – 40°C
2 years
868 MHz
100 metres free field
FSK
4 mm
100 mm
BT00056-c-
Front view
Flooding detector HA4619 with
Legend
Reset key
1.
LED: if the TEST or RESET pushbutton is press for 1 second, the LED will normally
2.
10 mm
flash twice; if the battery is exhausted the LED will only flash once
Flooding probe
3.
TEST pushbutton
4.
EN 24/03/2016
HA/HB/L4619
4
3
front cover plate
