Summary of Contents for Atem AP50LFP-12V

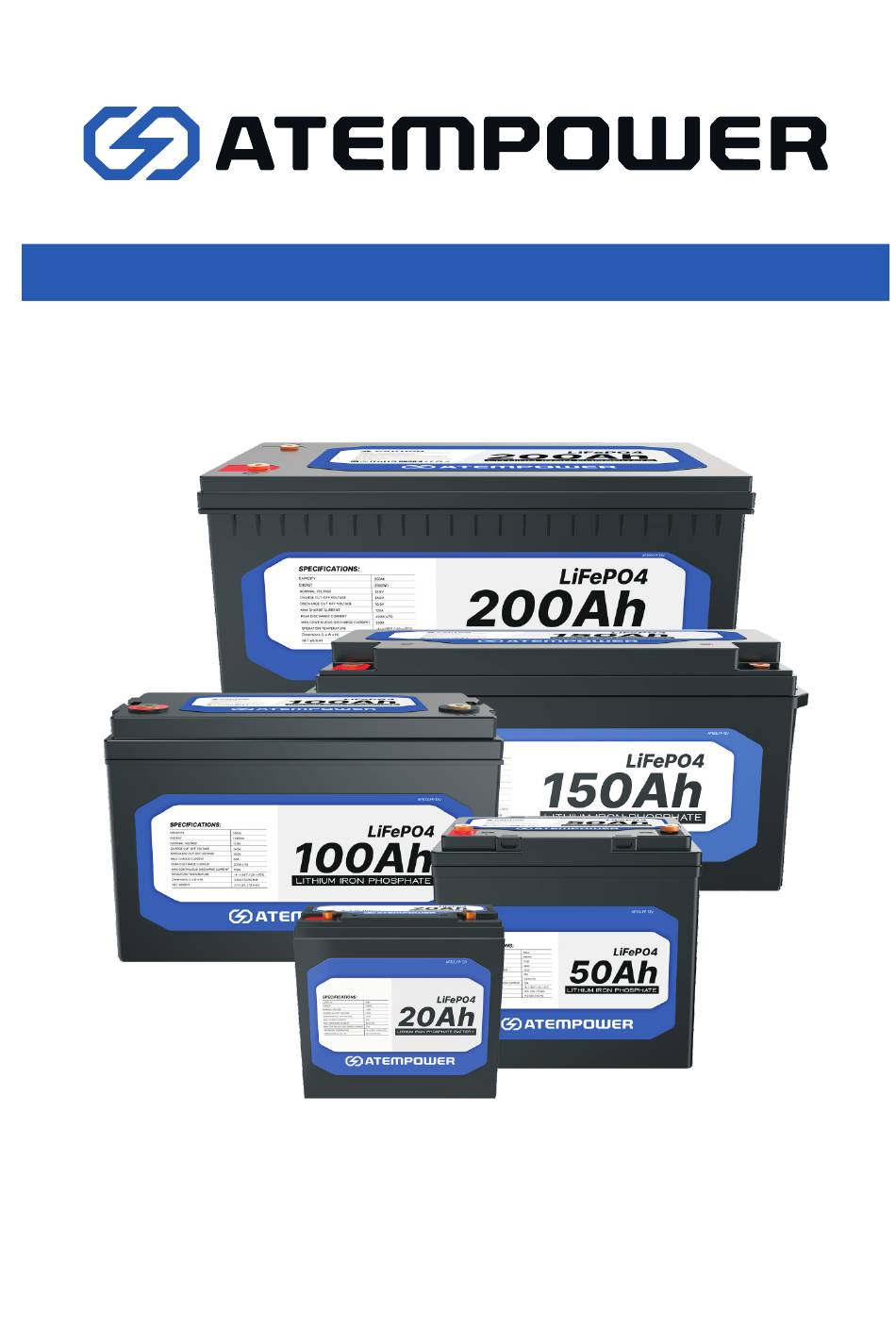

- Page 1 LITHIUM IRON PHOSPHATE BATTERY USER MANUAL AP20LFP-12V AP50LFP-12V AP100LFP-12V AP150LFP-12V AP200LFP-12V PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION AND MAINTENANCE, FOLLOW ALL PROVIDED WARNING & CAUTION, AND KEEP IT FOR FUTURE REFERENCE. V2.1...
- Page 2 ABOUT US ATEM POWER, born in June 2017, as a synonym for exciting outdoor experience, is an Australian company with dedication and passion for the R&D of high quality products in the field of renewable energy products, batteries and related accessories.
- Page 3 The parameters of the charger should meet the requirements of the technical specifications of this battery. If charged after the ATEM POWER lithium iron phosphate battery was discharged below the discharge cut-off voltage, or when it is damaged, this LiFePO4 battery can release a harmful mixture of gasses such as phosphate.
- Page 4 Overheating is a major issue with all lithium batteries as a result of over-charging. ATEM POWER LiFePO4 battery has an internal safety thermal fuse between the anode and cathode that will shut down the cell before overheating occurs to secure your safety.
- Page 5 PARAMETERS MODEL NO. AP20LFP-12V AP50LFP-12V AP100LFP-12V AP150LFP-12V AP200LFP-12V Battery Cells 32700 Cylindrical LiFePo4 Battery Cell Capacity 20Ah 50Ah 100Ah 150Ah 200Ah Cycle Life 2,000 Cycles ≤10mΩ Internal Impedance Self-discharge Rate(per month) Nominal Voltage 12.8V Charge/Discharge Voltage Range 10V-14.6V Charge Cut-off Voltage 14.6V...
- Page 6 PARTS LIST MODEL NO. AP20LFP-12V AP50LFP-12V AP100LFP-12V AP150LFP-12V AP200LFP-12V Parts (Screws) M5*8 x2 M6*14 x2 M8*14 x2 M8*14 x2 M8*14 x2 BCI Group Size 151R 22NF TROUBLESHOOTING If any problems occur during battery operation, please refer to the following instructions or contact us for professional help.
- Page 7 WARRANTY MONTH ATEM POWER (“Manufacturer”) warrants, to the original purchaser, (“User”) that its lithium iron phosphate (“Battery(ies)”), if purchased from Manufacturer or an authorized distributor or dealer, and used in a deep-cycle application, will be free of defects in material and/or workmanship from the date sold and for the duration (the “Warranty Period”) of 3 YEARS.
