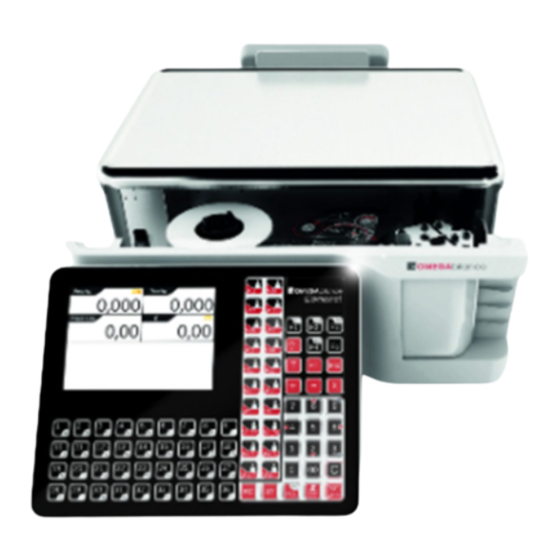

OMEGAbilance FREESTYLE COMPACT Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Translated from Italian to English - www.onlinedoctranslator.com
USER MANUAL
FREESTYLE
COMPACT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FREESTYLE COMPACT Series and is the answer not in the manual?

Questions and answers

Related Manuals for OMEGAbilance FREESTYLE COMPACT Series

Summary of Contents for OMEGAbilance FREESTYLE COMPACT Series

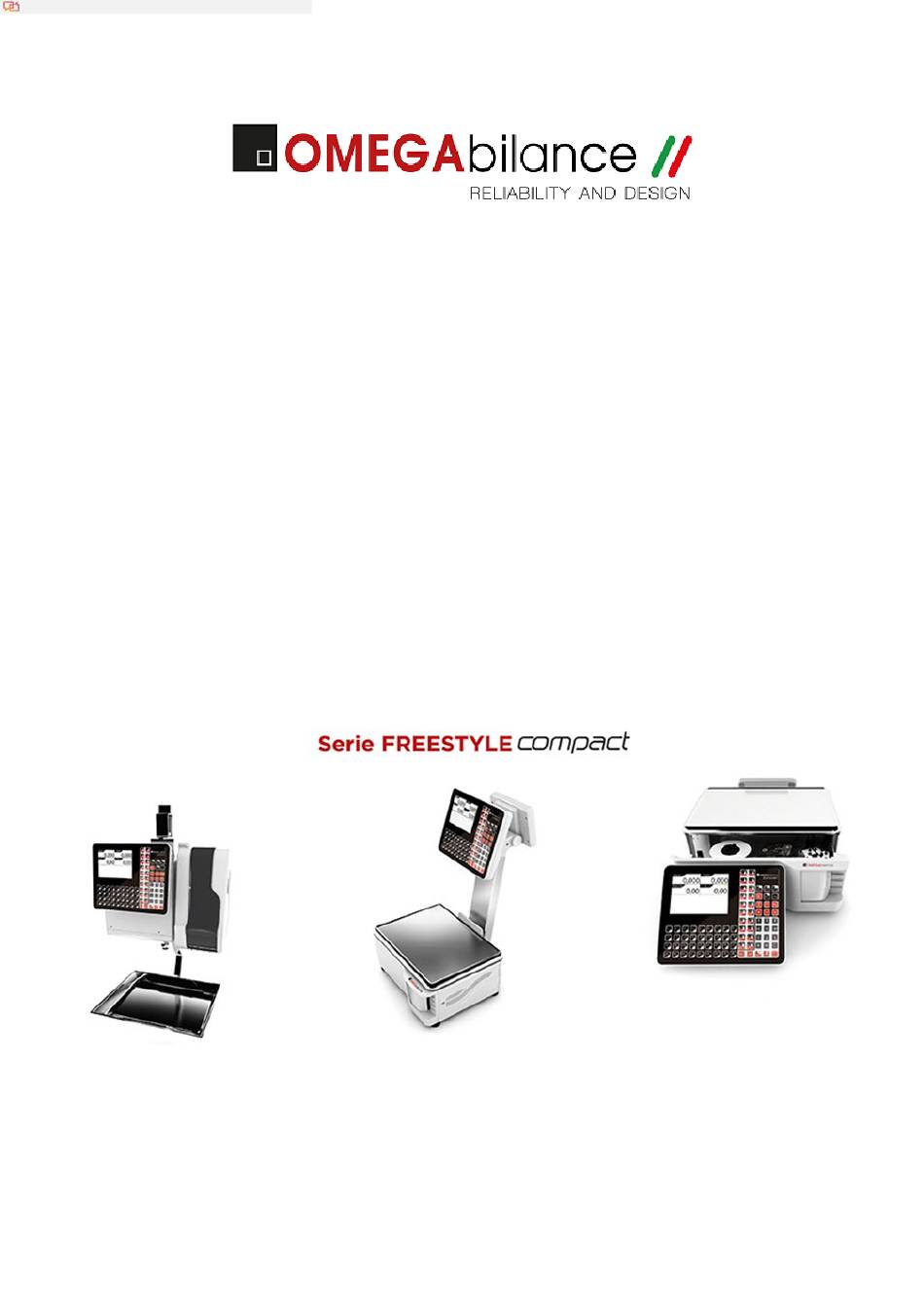

  • Page 1 Translated from Italian to English - www.onlinedoctranslator.com USER MANUAL FREESTYLE COMPACT...
  • Page 2 VIEW AND DIMENSIONS MODEL CS Freestyle Compact user manual Rev.1 Page 2 of 92...
  • Page 3 MODEL CS / P wall unit CS / PA MODEL Freestyle Compact user manual Rev.1 Page 3 of 92...
  • Page 4 PLC MODEL Freestyle Compact user manual Rev.1 Page 4 of 92...
  • Page 5 MODEL PL Freestyle Compact user manual Rev.1 Page 5 of 92...

  • Page 6: Installing The Scale

    INSTALLING THE SCALE POWER SUPPLY The installation of this scale must be done with great care and attention, in order to ensure maximum operating safety of the equipment. Therefore it is essential to strictly observe the following rules: Power the scale with a preferential line (220 V ± 10% - 50 HZ) that starts directly from the meter or from the distribution panel, avoiding that it connects other equipment with high absorption (refrigerator compressors, slicers, neon lamps, etc.

  • Page 7: Use Of The Scale

    LOCKING THE SCALE The scale with weight detection by means of a magnetic repulsion transducer or strain gauge load cell does not require any locking of the weight system. SWITCHING ON THE SCALE AND AUTOMATIC ZEROING The switching on of the scale must be carried out only with the plate unloaded, clean and without objects above it and the scale will be placed with the weight system at “zero”.
  • Page 8 It is possible to execute the transaction immediately if, after setting the article number, you proceed directly to the identification of the operator. The scale is equipped with a keyboard designed to quickly recall up to a maximum of 200 stored products (depending on the type of keyboard present).
  • Page 9 RETURNS or TRANSFERS The button"-"allows you to compose negative numerical values relating to RETURNS or BANK TRANSFERS. Again, by pressing the "-”The value that the operator is typing will appear in the appropriate" Negative € / Pc "box. The scale, inhibited by the normal weighing function for the entire duration of the operation, returns active only when the operator is identified to record the transaction or by selecting another PLU or by pressing the key"C ".
  • Page 10 INDIVIDUAL DISCOUNT The "INDIVIDUAL DISCOUNT" is applied to all stored items containing a discount percentage. The "threshold" value is also present in the data of each stored article; if the threshold is different from 0, the discount is made every time the net weight is equal to or greater than the threshold. In the case of full PLU, the "NxM"...
  • Page 11 DEDUCTION OF TARE VALUES On the scale the tare values can be deducted in two different ways allowing the determination of the net weight. Reference has already been made to the tare associated with a PLU. If this has not been programmed or is not adequate, you can proceed as follows: AUTOMATIC TARE After placing the container or sheet of paper whose weight must be deducted on the weighing plate, by pressing the "T.”The weight value detected will be displayed as TARE and not as...
  • Page 12 If the percentage had already been linked by programming to the PLU, recalling this PLU will automatically obtain the calculation of the "Drained Weight". NOTE: In the case of a “PRE-PACKAGING” scale, the price and weight are relative to the drained net weight, in all other cases the price and weight are relative to the net weight.
  • Page 13 PRINT OF THE "CUSTOMER TOTAL" RECEIPT By pressing the key"TOTAL"(written "WAIT FOR OPERATOR" on the alphanumeric display) and identifying himself on any scale of the counter, each operator can command the CLOSING of the SERVICE and the printing of the total of the receipt. All the information recorded by the operator on all the scales used during the service just completed will be recalled from the memories of the MASTER scale and printed.

  • Page 14: Automatic Operation

    Only the data contained in the second receipt issued will be accumulated in the General Total registers, so as not to alter the management data. HEEL If programmed (see chapter DATA MANAGEMENT - Counter information), after the issuance of a receipt the scale can print a ticket that will contain the same information provided for the receipt (the number of transactions carried out, the total of the receipt expressed in primary currency and secondary, the barcode).

  • Page 15: Minimum Weight

    OPERATION IN PRE-PACKAGING MODE The scale set up for operation in PRE-PACKAGING will issue a label every time a product is placed on its plate after having recalled or set a price value. The recalled or set price is not canceled at the end of each weighing but remains valid also for the following ones until new price values are recalled or set.
  • Page 16 This operation must be repeated for each single article that you want to define a route. ARTICLES information Archives: DATA MANAGEMENT: Programming Information Articles Information Families Fast programming Archives Hot variations Bank information Press Operator Information Totals Formats Text lists Short text lists Supplier Date and time...
  • Page 17 A clarification regarding the planning phase of the tracked article if management is used AUTOMATIC LOTS: • The parameter to be attributed to LIST 5 is no longer FIXED (value 1) but becomes the number of the list in which the TRACEABILITY information has been stored. This value can change for each single PLU, thus automatically associating different information corresponding to the list number.
  • Page 18 In the operating mode for DATE / LIST, the item must be defined to be tracked by associating it with an element of the batch list. After selecting the item, the scale displays the associated list number, giving the operator the possibility to confirm it or to enter another list number. If the list is actually present in the archive, it will be possible to proceed with the weighing operations, otherwise the "list does not exist"...
  • Page 19 CONNECTION TO TAX RECORDER A fiscal recorder from the DITRON range can be connected to the second serial port of the scales. This connection allows you to send the final amount of the receipt issued by the scale to the fiscal recorder. After being sent to the fiscal recorder, the receipt can no longer be reopened and therefore modified.
  • Page 20 CHANGE OF PAPER ROLL The end of the roll of paper or labels will be indicated on the display with the message "Printer out of paper"which can be canceled, after having introduced the new roll, with the"C.". The replacement must be carried out with the scale on. The operator must, without turning off the scale, open the drawer (in the case of an internal printer) or the door (in the case of an external printer), replace the roll and reinsert the drawer complete with the new roll into the scale according to the following procedures:...
  • Page 21 In case of label roll, remove the first labels of the new roll fig. 3 Unscrew the roll holder knob shown in the figure clockwise fig. 4 Insert the roll, making sure that the siliconized support follows the path indicated in red in figure 7.
  • Page 22 fig. 7 Turn the roll holder knob counterclockwise to lock the roll into the housing fig. 8 Adjust the paper holder to keep the roll aligned against the drawer fig. 9 Freestyle Compact user manual Rev.1 Page 22 of 92...
  • Page 23 Unlock the rewinder by turning it clockwise fig. Insert the silicone paper into the slots of the rewinder and lock it by turning the latter counterclockwise fig. Close the head by pressing where indicated by the arrow, and close the drawer SCALE WITH EXTERNAL PRINTER Freestyle Compact user manual Rev.1...
  • Page 24 Open the drawer door as shown in fig. 1 fig. 1 Raise the print head by pressing the indicated key (fig. 2) fig. 2 In case of label roll, remove the first labels of the new roll fig. 3 Freestyle Compact user manual Rev.1 Page 24 of 92...
  • Page 25 Unscrew the roll holder knob shown in the figure clockwise fig. 4 Insert the roll, making sure that the siliconized support follows the path indicated in red in the figure 7. The passage of the paper in the head is shown in figure 6 fig.
  • Page 26 Turn the roll holder knob counterclockwise to lock the roll into the housing fig. 8 Adjust the paper holder to keep the roll aligned against the drawer fig. 9 Unlock the rewinder by turning it clockwise fig. 10 Insert the silicone paper into the slots of the rewinder and lock it by turning the latter counterclockwise Freestyle Compact user manual Rev.1...
  • Page 27 fig. 11 Close the head by pressing where indicated by the arrow, and close the door Freestyle Compact user manual Rev.1 Page 27 of 92...

  • Page 28: Operating Mode

    OPERATING MODE The VBA, CS / PA and VBE scales only provide for the management of label rolls and the "traditional" operating mode is not supported. The other operating modes reflect what has already been explained in the previous chapters. TRANSFER It is possible to cancel the last label produced (damaged label and therefore it is not possible to apply it, error in the choice of the article, etc.).
  • Page 29 GRAND TOTAL The Grand Total represents the sum of all the items handled and is increased at each transaction until the scale totals are reset; the Grand Total is common to all the scales of the same bank. By pressing the "GT" key, a total label will be printed containing, in addition to the description of the item, the number of transactions carried out, the total by weight and amount of all transactions carried out and possibly the bar code.
  • Page 30 OPERATOR UTILITY (VBA - left click) (*) In this menu the operator, with any type of wrench available, has the possibility to quickly access the adjustments concerning the normal functioning of the scale. By pressing just one button, you have direct access to the main settings and information menus; it is possible to return to the main menu by pressing the "ESC"...

  • Page 31: Operating Messages

    WHAT TO DO IF ... Each operation on these scales is carried out by showing a message on the screen; this message can contain a request to the operator or an error message. The messages are therefore divided into two groups, within which they are listed in alphabetical order to facilitate their search: Operation messages Error messages...
  • Page 32 ILLEGAL WEIGHT Attempted transaction with illegal weight (below the minimum weight or out of range). MANDATORY PLU On the scale, enabled to weigh only with prices combined with PLUs, the operator tries to set a price directly with the numerical keyboard. DIFFERENT PRICE It is displayed on the SLAVE when the price of the PLU being weighed is different from the one stored in the MASTER.
  • Page 33 CANCELLATION NOT SUCCESSFUL Attempt to make a reversal on an operator already closed (without transactions in memory). ILLEGAL TARE This message is reported when an attempt is made to use a tare value that is not compatible with the metric division of the scale: the tare must in fact be a multiple of the metric division. In order to still allow you to use the item in question, after this signaling the PLU will be displayed setting the tare to zero.

  • Page 34: Error Messages

    ERROR MESSAGES PAPER ERROR It signals the end of the labels or the paper roll. The same error is also displayed if a roll of paper or labels incompatible with the programmed operating mode has been inserted in the scale. In the case of using LABELS, the label format to be used must be modified and the STEP in programming the printer parameters must also be adapted.
  • Page 35 MASTER ABSENT The switching on order of the scales was not respected by switching on a SLAVE scale before its MASTER or SUBMASTER or a SUBMASTER scale before the MASTER. The message may also appear during the operation of a SLAVE or SUBMASTER scale in the event that the connection with your MASTER fails.

  • Page 36: Operation Description

    PROGRAMMING OF THE SCALE These pages indicate the keys to be used for the different balance versions. Model: PL-PLC-CS-CS / PA-CS / P-VBE-VBA The corresponding keys to activate the operations with the electronic key are: OPERATION DESCRIPTION Each time these keys are pressed, in the indicated sequence, the key a is SHIFT + 1 turnedLEFT of a position Each time these keys are pressed, in the indicated sequence, the key a is...
  • Page 37 1st click on the left:UTILITY OPERATOR Contrast Viewers Label roll / continuous Printer Network (TCP - IP) System Information Network Configuration Zero research Keys test Repackaging Keyboard disabled 1st click to the right 2nd click on the right:OPERATOR MENU Requests Local settings Inventory Operations Print Varied Items...

  • Page 38: Special Key Functions

    OPERATION IN PROGRAMMING The programming operations are distributed in different positions of the key. For each position the operator has a series of menus in cascade. This means that a series of selections are proposed; once a selection is made, another is proposed and so on until the selections are exhausted.
  • Page 39 OPERATOR UTILITY (left click) In this menu the operator, with any type of key available, has the possibility of quickly accessing the adjustments concerning the normal functioning of the scale, the tests By pressing a single key, you have direct access to the main adjustments and information menus. ; it is possible to return to the main menu by pressing the "ESC"...

  • Page 40: Paper Feed

    PAPER FEED It represents how much the receipt must have advanced after the end of the printing of the last line of the receipt itself; this in order to facilitate the cutting of the receipt. The default value is 20, and each number corresponds approximately to an advance of 2 millimeters.
  • Page 41 model, program version installed, keyboard version, weight converter version, "loader" version, type of head installed (2 or 3 inches), amount of free RAM and FLASH memory, maximum number of PLU items available (1,000 or 10,000) and used, network number of the scale (with the relative indication of "master"...
  • Page 42 generate totals. This method should not be confused with the inventory operation of the same name. Deactivation occurs automatically when the scale is turned off or if the operator enters programming. Further information on this mode can be found in the protections menu. REST POSITION (first click on the right) The first click on the right disables the keyboard functionality leaving the scale in the non-use position (stand-by) and allowing the extraction of the key.

  • Page 43: Local Settings

    OPERATOR MENU (second click on the right) The operator, with any type of key available, has the possibility to update the scale data by requesting them from the hierarchically superior unit, to carry out inventory operations, to modify the local data. By pressing just one key, you have direct access to the following functions: Requests Local settings Inventory operations...
  • Page 44 The "Local Settings" menu allows you to independently configure each scale. This means that a scale can work, print a barcode, use a different label format than other scales on the same bench. These configurations take precedence over other programming if no mode (none) is selected in the operating mode of the desk.
  • Page 45 Operating on the scale, it is always possible to have information on the values allowed for each field using the "HELP" function ("shift" and "F1"). Scanner: the type of barcode reader used by the scale is configured; using the "HELP" function ("shift" and "F1") select between: NONE: no reader connected EAN 8/13: Ean8 and Ean13 format barcodes are managed to recall the memorized articles by reading their barcode instead of setting the recall number with the...
  • Page 46 KEY PAIRING PROGRAMMING It is possible to associate an article stored with each direct recall key with the following operations: set the number of the key to be programmed and press "ENTER"Set the number of the memorized article to be associated and press the"F1" to memorize to verify the operation just carried out, the main data of the chosen article will be displayed The configuration of the article recall keyboard can also be carried out in different ways:...
  • Page 47 ENABLING OPERATORS PROGRAMMING The scales to which this manual refers manage up to 30 operators; the first 10 are already active with the normal configuration with which the scale is supplied. It is possible to increase or decrease the number of operators and establish, for each operator, the following information: Operation This is the operating mode of the single operator;...
  • Page 48 INVENTORY OPERATIONS The operator with any programming key has the possibility to: Cancel a receipt (only if the scale is enabled for receipt recovery) manage the merchandise of the sales counter through INVENTORY, PLACEMENT, REVERSE and RE-PACKAGING operations. using a remote system to manage the goods from another sales counter through INVENTORY, PLACEMENT, REVERSE and RE-PACKAGING operations.
  • Page 49 INVENTORY Allows you to record the weight of the goods present in the counter; in this way the real data of the stock of all the items remained partially unsold is available. When the "INVENTORY" menu is selected, set the bank number, press the "ENTER", Set the article number to be inventoried and confirm with the"ENTER".
  • Page 50 REPACKING In the event that it is necessary to withdraw a pre-packaged product from a counter (for example due to a broken package) and repackage it, the scale is able to provide for an adequate "reload" of the weight of the package itself in the inventory data; otherwise, by doing, the same item would be totaled twice, thus falsifying the real data of the sold with respect to the entered.
  • Page 51 When the "DEFAULT FORMATS" menu is selected, press the "ENTER"; set the number of the label format to be used for Inventory operations, press the "ENTER”To confirm and move on to the next programming. To store all the entries, press the "F1". To exit the menu press the"ESC". LOTS ENTRY In the operating mode for Lots Input, the operator who carries out the weighing operations must therefore, when weighing an item to be tracked, set only the input number to be linked.
  • Page 52 once the data has been entered, press the "F1"to store the input number and print a faceplate as a reminder of the operation The information acquired from the barcode thus automatically compiles the batch input data and the text list dedicated to the batches (List5). In the event that the information relating to an animal is the same as already present in the list archive (born in, slaughtered in etc.), a new entry number will be created (with variable data such as ear tag, date of slaughter, animal age) which recalls an already existing list.
  • Page 53 DATA MANAGEMENT (third click on the right) Data management is allowed to the user in possession of the key"P "being positioned at the third click on the right. If the scale uses the electronic keyboard, it is possible to protect the data management entry by means of a password, which can be programmed in “CONFIGURATIONS - Protections”.
  • Page 54 Tare Assign a Tare value to the article which must be a multiple of the scale division (e.g. 2 g for 12 kg scales, 5 for 30 kg scales) Glazing It is possible to set the scale to print glazing data by setting the percentage of “glazing” with respect to the net weight for each item.
  • Page 55 Date 3 It is a further date for which the same rules as "Data 2" apply -. Barcode It is possible to print an EAN 13 type barcode. The structure of this code can be programmed using the “Barcode Format”. The final “check digit” and the intermediate “check digit” (if provided) are calculated by the scale.
  • Page 56 Short Print Only the main information relating to all the items in memory is printed. To stop printing, press any key. Print Variati All the changes made on the stored items (PLU) are stored in the changed items register in order to produce a summary printout of the latest changes.
  • Page 57 Front panel format Barcode format Barcode By pressing the "F4"you will get a printout of the information relating to the family being programmed. PRESS The print function produces a listing of the family information. Since large amounts of data are printed, all printing functions require the use of a continuous thermal paper roll.
  • Page 58 6. Family Barcode; it has the same characteristics as the amount barcode, but more barcodes are printed, one for each product family moved in the receipt; each barcode will show the family code instead of the bank code and will be printed with a programmable time interval (see "Wait"...

  • Page 59: Operator Information

    List [n] The number of items in each list depends on the memory capacity. For each of the lists involved, here you can specify the number of the element to be associated with the article in question. Position Row Description Position Metric Row Frosting Line Position Discount Line Position...
  • Page 60 By pressing the "F4"you will get a printout of the operator information. Since large amounts of data are printed, the print function requires the use of a continuous thermal paper roll. LIST OF TEXTS To supplement or replace the product description, to introduce texts, warnings, promotional phrases or any other type of multiline text, seven text list archives are available which can be linked to the memorized articles.

  • Page 61: Basic Programming

    In practice, the programming mask of List5 is opened, the cancellation is requested with the "F2" key but using the lot number and not the element code number as the search criterion. PRESS List All the elements belonging to the selected list will be printed. Since large amounts of data are printed, the print function requires the use of a continuous thermal paper roll.

  • Page 62: Panel Programming

    The indications of the permitted values for this field are available using the "HELP" function ("shift" and "F1"). PANEL PROGRAMMING Advertising format Indicate which advertising format to use for this painting. List Indicates the element code number of List6 from which to take the texts to be presented in the panel Image pointer Indicates the image to be presented in the painting Text mode...
  • Page 63 HOT CHANGES With hot variations, the data relating to the stored articles or to the text lists are transmitted directly to all the scales belonging to the same bench at the same time as they are stored. This menu is therefore only available on scales configured as "MASTER". The fields available are the same as for the programming of the articles and, consequently, we proceed in the same way as for the programming of the articles.
  • Page 64 By choosing the printing on labels, the operator must set the number of the item for which the total is desired and press "ENTER" to confirm. GRAND TOTAL It is the overall total of all the items handled; the amount, discount, any returns and cancellations, total weight and number of product receipts are specified.
  • Page 65 ATTENTION: pressing "ENTER"Only the totals are reset, without any printout; before carrying out the reset operation, proceed to any printouts of the totals. Freestyle Compact user manual Rev.1 Page 65 of 92...
  • Page 66 FORMATS All the information produced by the scales on the display and on the receipt are programmable. So labels, receipts, messages on the viewers (regarding transactions, totals, advertising) can be customized by creating "formats". Formats define the characteristics of presentation of information on paper or screen; the formats therefore determine which information will be printed or displayed and in which way.

  • Page 67: Graphic Presentation

    GRAPHIC PRESENTATION In addition to the traditional insertion of numeric data, it is possible to program each field "graphically" (this option is not supported in the programming of receipt formats.). By pressing the "F4"you will get a print proof: all the programmed fields will be printed on the receipt or label to give an example of the resulting label (or receipt).
  • Page 68 SCALE LOGO Design common to all the items of the school Field 5: second description line of the article (alphanumeric) Field 7: fixed text (alphanumeric) Field 12: amount (numeric) Field 20: EAN13 barcode Drawing dedicated to the article EXAMPLE OF TEST LABEL AND ON-SCREEN PRESENTATION Freestyle Compact user manual Rev.1 Page 68 of 92...
  • Page 69 The following formats are provided: Label formats Receipt Opening Formats Receipt Closing Formats Formats Description Receipt PLU Display Formats Front panel formats Advertising formats Transaction / Total Display Formats Barcode Formats Acquisition formats EAN128 Function Key Formats LABELS FORMATS There are already some pre-set formats, the most significant s or not: Function Number Weight...
  • Page 70 By pressing the "-", and confirming the operation with the"ENTER”, The field in question will be deleted; any other fields present will be automatically decreased by one position. Nature Field Establishes the kind (nature) of the field being programmed; the expected values are: Nature Field NONE (not used) Alphanumeric field...
  • Page 71 place the cursor on the "field pointer" field use the "Help" function ("help" "shift" and "F1" keys simultaneously) By pressing the "F4"You will get a printout of the operator information; large amounts so long as of data are printed, the print function requires the use of a continuous thermal paper roll.
  • Page 72 It is the distance between the left edge of the label and the top left vertex of the field. The value must be expressed in tenths of a millimeter. Line It is the distance between the top edge of the label and the top left corner of the field. The value must be expressed in tenths of a millimeter.
  • Page 73 180 degrees 270 degrees Horizontal expansion It allows you to expand horizontally the chosen character for the field and can have a value between 1 and 4. In the case of a Barcode field, it can have a value between 1 and 3, which respectively indicates the printing at normal, double and triples of the Barre Code itself.
  • Page 74 "Closing" area in which the fields relating to the total amount, barcode, one or more lines of the various texts available, logo, date, etc. will be present. Each of this area will be printed as programmed in the relative format. The operating modes, the meaning of the parameters and the organization of the programming menus reflect those already described in the paragraph dedicated to label formats;...
  • Page 75 Receipt Closing Format Transaction Display Format Destination archive Indicates in which archive of formats the data will be copied; the allowed values are the same as in the "Source Archive" field. Source code Set the number of the chosen archive format you want to copy. Destination Code Set the format number to copy the data to.
  • Page 76 Number Format Number field Nature Field Field pointer Element pointer Row Element Number of characters Column Character Type Fund Property Alignment Horizontal expansion Vertical Expansion COPY The operating modes, the meaning of the parameters and the organization of the copy menu reflect those already described in the paragraph dedicated to receipt opening formats.
  • Page 77 COPY The operating modes, the meaning of the parameters and the organization of the copy menu reflect those already described in the paragraph dedicated to label formats. Source Archive Destination archive Source code Destination Code FRONT PANEL FORMAT The operating modes, the meaning of the parameters and the organization of the programming menus reflect those already described in the paragraph dedicated to label formats.
  • Page 78 Nature Field Field pointer Element pointer Row Element Number of characters Column Line Character Type Fund Alignment Orientation Horizontal expansion Vertical Expansion Displacement per unit of time Expresses in 1/10 of mm. how far the field in question must move. Movement direction It expresses in which direction the displacement takes place: if = 0 upwards, if = 1 to the right, if = 2 downwards, if = 3 to the left.

  • Page 79: Bar Code Formats

    Fund Alignment Orientation Horizontal expansion Vertical Expansion BAR CODE FORMATS The barcode can be completely programmed to give each digit of the code a meaning corresponding to the needs. PROGRAMMING Number Format Barcode type To select the type of barcode use the "HELP" function ("HELP", "shift" and "F1" keys). Barcode type EAN barcode 8 EAN barcode 13...
  • Page 80 By pressing the "F4"You will get a printout of operator information; as large amounts of data are printed, the print function requires the use of a continuous thermal paper roll. Column In case of a fixed number, it represents the value of the number itself. In other cases, the following example applies.
  • Page 81 An additional macro-function is available which is activated only when switched on automatically without using any key on the scale.To activate the procedure, the number zero function key format must be programmed. The function keys are "PROTECTED" by default and can therefore only be activated using the programming key in the "Operator Utility"...
  • Page 82 PROGRAMMING The programming of a function key is performed by describing the sequence of keys necessary to perform the chosen function. In practice, carry out the operation by marking all the keys that are pressed to do it. In this phase it is possible to modify or insert a function previously stored with “REGISTER KEYS”.

  • Page 83: Miscellaneous Settings

    CONFIGURATION (fourth click on the right) The configuration of the scale is allowed to the user in possession of the "P" key being positioned in correspondence with the fourth click on the right. The configurations modify the functioning modes of the scale and are available through the following menu items: Various settings Subdivisions...
  • Page 84 To choose which code to use, use the "Help" function by pressing the "shift" and "F1" keys; then choose "SHORT CODE" or "EXTENDED CODE". ARTICLE ZERO Enabling article zero allows the operator to weigh by setting the price per kilo for each transaction. With article zero disabled it will be possible to carry out transactions only by recalling the memorized articles.
  • Page 85 enable the scale to store the receipts that will be sent to the concentrator as soon as the connection is restored (up to 800 transactions will be hosted). To enable or disable the receipt memory, use the "Help" function by pressing the "shift" and "F1" keys;...
  • Page 86 the weight calculated on the number of internal divisions expressed in kilograms (with resolution to the tenth of a gram) the number of internal divisions EVENTS (calibration) This menu is available to the metric inspectors. The dates corresponding to the calibration and calibration of the weight system carried out by authorized personnel are shown on the screen.

  • Page 87: Network Configuration

    DB CONFIGURATION By selecting this item you access a display submenu structured as follows: Number of operators: 30 (Number of operators that can be activated) (Global number of transactions usable by operators) Total transactions: 300 Operator transactions: 60 (Maximum number of transactions for a receipt) Receipt buffer: 0800 (Number of transactions available to retrieve receipts from HOST) NETWORK CONFIGURATION...
  • Page 88 It is the TCP / IP address that will identify the scale in the Ethernet network. This address is made up of four 3-digit numbers to respect the structure of the TCP / IP addresses (the values allowed for each triplet range from 0 to 254).

  • Page 89: Udp Configuration

    Select with HELP (Shift + F1): 9600 bps 19200 bps 38400 bps 57600 bps 115200 bps Com2 Protocol Select the type of line protocol to be used with the second serial port Select with HELP (Shift + F1) between: port not used IT IS NOT connection to EAN barcode reader connection to PDF 417 barcode reader...
  • Page 90 2 Department - Vat%: -1 indicate the VAT percentage to be associated with department 2 3 Department - Vat%: -1 indicate the VAT percentage to be associated with department 3 4 Department - Vat%: -1 indicate the VAT percentage to be associated with department 4 5 Department - Vat%: -1 indicate the VAT percentage to be associated with department 5 6 Department - Vat%: -1...
  • Page 91 the metrological data is equally visible, even if with less contrast. Reactivation occurs by pressing a key or by moving the key or the weight if the scale is not in programming LOT (Reset). If this parameter is ON, the input or list number is initialized to zero at each request.

  • Page 92: Connection To A Computer

    CONFIGURATION FOR LOTS INPUTS Configuration of the scale for the input 1 - Activation of batch mode With the "key" in"Configuration"to select"Various settings "; In “Various settings” activate the item"Lots entry "to the line"Batch management ". 2 - Activation of the inputs protocol With the "key"...
