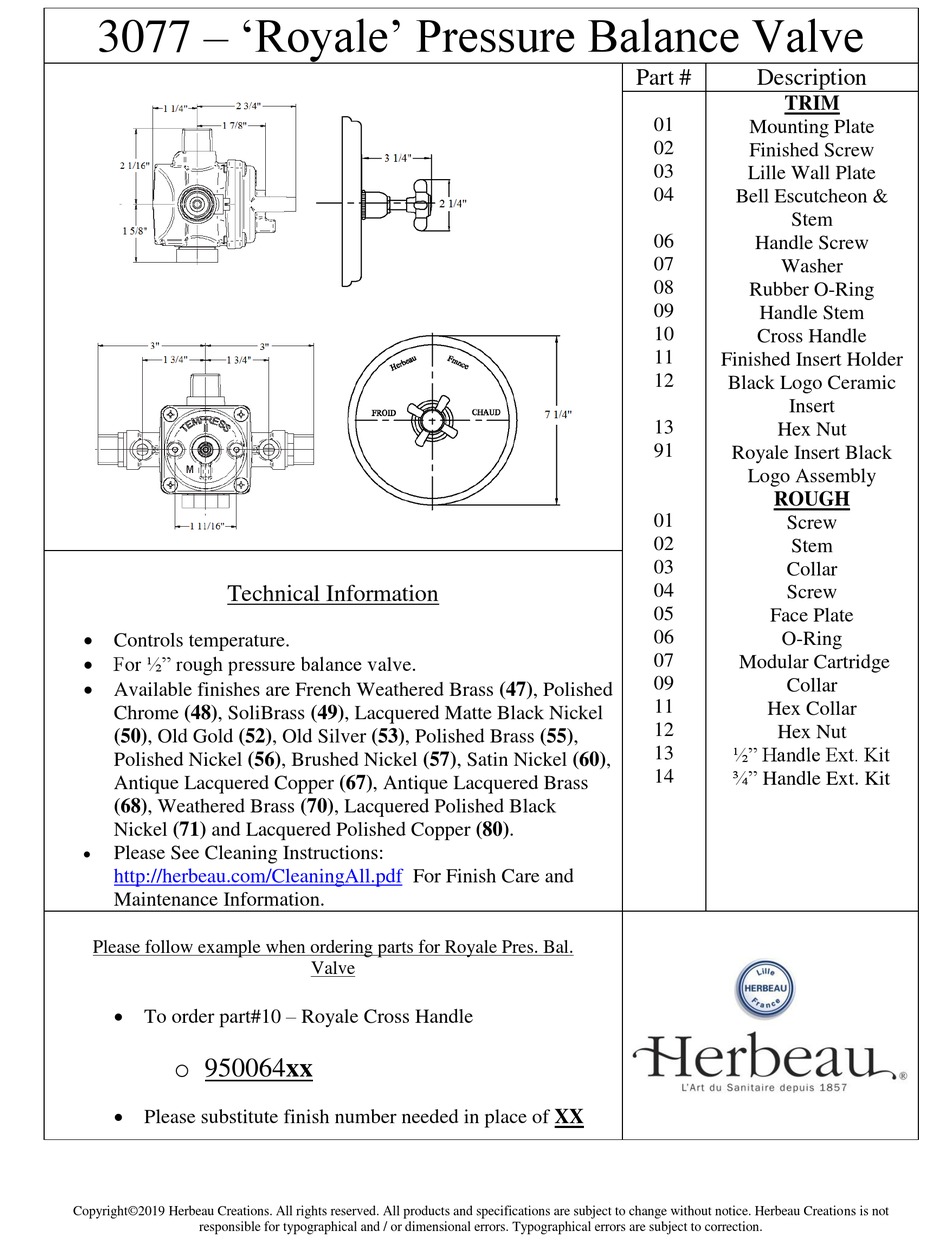

3077 – 'Royale' Pressure Balance Valve
Technical Information
Controls temperature.
For ½" rough pressure balance valve.
Available finishes are French Weathered Brass (47), Polished
Chrome (48), SoliBrass (49), Lacquered Matte Black Nickel
(50), Old Gold (52), Old Silver (53), Polished Brass (55),
Polished Nickel (56), Brushed Nickel (57), Satin Nickel (60),
Antique Lacquered Copper (67), Antique Lacquered Brass
(68), Weathered Brass (70), Lacquered Polished Black
Nickel (71) and Lacquered Polished Copper (80).
Please See Cleaning Instructions:
http://herbeau.com/CleaningAll.pdf
Maintenance Information.
Please follow example when ordering parts for Royale Pres. Bal.
To order part#10 – Royale Cross Handle
o 950064xx
Please substitute finish number needed in place of XX
Copyright©2019 Herbeau Creations. All rights reserved. All products and specifications are subject to change without notice. Herbeau Creations is not
responsible for typographical and / or dimensional errors. Typographical errors are subject to correction.
For Finish Care and
Valve
Part #
Description
TRIM
01
Mounting Plate
02
Finished Screw
03
Lille Wall Plate
04
Bell Escutcheon &
Stem
06
Handle Screw
07
Washer
08
Rubber O-Ring
09
Handle Stem
10
Cross Handle
11
Finished Insert Holder
12
Black Logo Ceramic
Insert
13
Hex Nut
91
Royale Insert Black
Logo Assembly
ROUGH
01
Screw
02
Stem
03
Collar
04
Screw
05
Face Plate
06
O-Ring
07
Modular Cartridge
09
Collar
11
Hex Collar
12
Hex Nut
½" Handle Ext. Kit
13
¾" Handle Ext. Kit
14
Advertisement
Summary of Contents for Herbeau Royale 3077
- Page 1 Please substitute finish number needed in place of XX Copyright©2019 Herbeau Creations. All rights reserved. All products and specifications are subject to change without notice. Herbeau Creations is not responsible for typographical and / or dimensional errors. Typographical errors are subject to correction.
-
Page 6: Tools Needed
P a g e 3077 TRIM INSTALLATION TOOLS NEEDED: Plumber’s Grease Slotted Screwdriver Phillips Screwdriver Small Adjustable Wrench 1. Remove black plastic wall guide and set aside: 2. Remove #2 white plastic stem from rough with Phillips screwdriver and set aside:... - Page 7 5. Position #3 wall plate over #2 mounting plate center post. Make sure you align it with the “Herbeau France” lettering at the top and Froid (cold) and Chaud (hot) are aligned with the cold and hot rough inlets. Thread #13 locking nut over center post and tighten with...
- Page 8 P a g e 6. Install #4 bell & #9 stem into center of #3 wall plate and turn the stem fully clockwise. (Note that #4 bell & #9 stem will sit slightly above the wall plate so it can turn freely without scratching the wall plate.): 7.
- Page 9 P a g e 8. Set #7 washer into center of #10 cross handle and thread #6 slotted handle screw into cross handle tightly with slotted screwdriver. 9. Take #91 logo insert and apply a small amount of plumber’s grease to the rubber o-rings on the plug.
