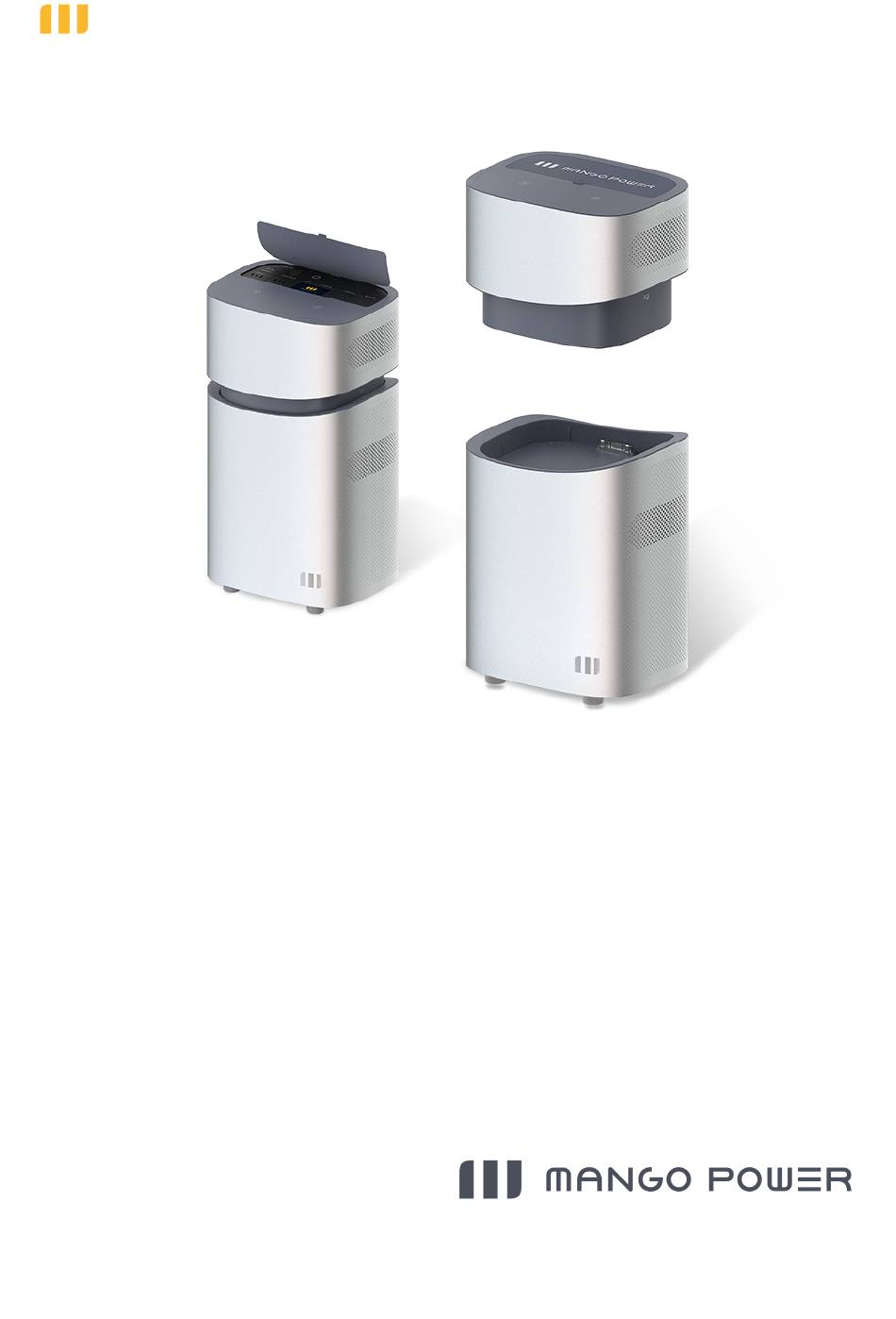

- Page 1 MANGO POWER UNION User Manual...
-
Page 3: Table Of Contents
Contents 1. Introduction ............................3 2. Safety Instructions ..........................3 3. Abbreviation ............................4 4. Mango Power App ..........................5 5. What’s in the Box ..........................14 6. Features ............................14 7. How to Connect ..........................17 8. Let’s Get Started ..........................20 9. -
Page 4: Introduction

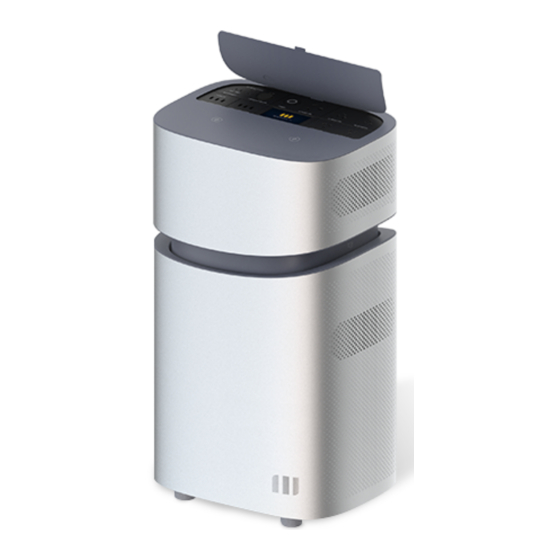

Congratulations on your purchase of the Mango Power Union. The Mango Power Union is the world’s first battery system to integrate both home and portable power solutions. It consists of 2 parts: the main base – the Power Home – and the detachable Power Move. -
Page 5: Abbreviation
Do not install the Mango Power Union any place where it will be directly exposed to the rain, and do not allow it to soak in water or any other liquid. -
Page 6: Mango Power App
Bluetooth connections. Please download the Mango Power App from the iOS App Store or Google Play before installing the Mango Power Union. Step 1: Make sure your Mango Power Union and your smartphone are both on the same Wi- Fi network. - Page 7 The Home Page shows the battery status for all parts of the product: the Mango Power Union, the Power Move, and the Power Home. At any time, you can click on the Mango Power Union device to control what mode it’s in, and the AC / DC output.
- Page 8 The Power Flow section gives you a clear picture of how energy flows into your Mango Power Union via solar or from the grid, and how it’s used via the connected devices. The Customize section lets you choose different modes for advanced control of your energy use.
- Page 10 Backup Power Mode maintains a certain charge (85% is the default, but this can be adjusted in the Mango Power App) in your Mango Power Union to guarantee seamless power to your home’s essential circuits in the event of a power outage. The Mango Power Union will charge from your grid or solar power system and will only discharge during a grid outage, or if the total battery capacity is higher than your chosen threshold.
- Page 11 Step 2: Scroll down the screen and click on the Customize bottom. Step 3: Choose the Backup Mode and choose the power reserve threshold you prefer for your battery. We recommend a setting above 80% for this mode. After this, your Mango Power Union will be set to Backup Mode.
- Page 12 Time-Based Control Mode will help you maximize savings with smart charging and battery use. To enable this mode in the Mango Power App, follow these steps: Step 1: Open the Mango Power App and choose Mango Power Union on the Home Page.
- Page 13 Step 2: Scroll down the screen and click on the Customize bottom. Step 3: Choose the Time-Based Control Mode and set the charge and battery usage times according to your local utility conditions. After this, Time-Based Control Mode is now active.
- Page 15 To activate this mode, connect the Mango Power Union with your solar power system and switch to this mode in the Mango Power App. In the app, you can see in detail the power flow to and from your Mango Power Union and your energy report.
- Page 16 Step 3: Choose the Economical Mode and set the threshold for the minimum battery reserve. The mode is now active. Note: When you have enough solar energy to offset all consumption and your Mango Power Union is fully charged, the excess energy will NOT be exported to the grid.
-
Page 17: What's In The Box
5. What’s in the B ox Category Quantity Mango Power Union AC Charging Cable 20A MC4 to Aviation Cable (Solar Input Cable) 40A Home Backup Cable User Manual Warranty Card QC PASS Certificate 6. F eatures ○ ○ ○ ○... - Page 18 6x USB-A 27W output Quick charge USB-A ports Can be pressed/tapped to control the Mango Touch Screen Power Union Can charge your phone or other devices which 2x Wireless charging 15W support wireless charging Output port for devices with a corresponding...
- Page 19 Solar input for Power Home Can be connected to solar panels Extension Communication Communication Interface for several Mango Interface Power Union Extensions Grid AC Input for Power Can connect the Power Home to grid for AC Home charging Grid AC Input for Power...
-
Page 20: How To Connect
Both the Power Home and the Power Move have PV input ports on the backside of the device. The Mango Power Union supports 60V-150V solar panels. You can connect it to a roof solar system or to portable solar panels. Please use the included PV Charging Cable (MC4 Port to Aviation Port) if necessary. - Page 21 Both the Power Home and the Power Move have Grid AC input ports on the backside of the device. The Mango Power Union supports a maximum 3300W input. Connect the AC input ports to home sockets using the included charging cables. (Please be sure the home sockets...
- Page 22 To test the home backup power supply and UPS (Uninterrupted Power Supply) features without the mPanel, you can connect the Mango Power Union or Power Move with the gird and connect your essential circuits or devices with the output ports on top of the Power Move.
-
Page 23: Let's Get Started
After connecting as prescribed in 7.2-7.4, your overall connection will be as shown below: Detailed wiring diagram please refer to appendix 13.1. 8. L et’s G et S tarted... - Page 24 2) Shutdown: short press the Power Home’s and/or the Power Move’s power button to turn them off; their indicator lights will also turn off. 3) The Mango Power Union’s DC and AC power switches are integrated into the interaction LCD screen; press “DC” button and/or “AC” button on the screen to turn on/off the DC/AC output.
-
Page 25: Touchscreen
9. T ouc hs c reen After pressing the Power Move’s and/or the Power Home’s power buttons, the loading and homepage will be shown as below: Loading page ○ 8 ○ 7 ○ 1 ○ 6 ○ 2 ○ 3 ○... - Page 26 2) Tap the ○ 5 switch arrow icon on the homepage to move to the settings page. ○ 9 Input & Output power will be shown on this page. Get more ○ 1 1 function button by touching the ○ 1 0 scroll up arrow and ○...
- Page 27 On the settings page, you can get the input & output power information, and by tapping the switch button, you can switch the Mango Power Union into different modes: AC: turn ON/OFF the AC output DC: turn ON/OFF the DC output...
- Page 28 6) If a system error occurs, the error warning will be shown as below: 7) The touch screen will automatically turn off after 3 minutes of idle operation. Wake it up by touching anywhere on the screen.
-
Page 29: Technical Specifications
T ec hnic al S pec ific ations Mango Power Union Power Move (Power Home + Power (Detachable Portable Power Move) Station) Ġ ÑŌÑǾ M Õ Net Weight 160 Ibs. 58 Ibs. 72.58kg 26.35kg Size 17.6 x 13.6 x 31.7 inches 17.6 x 13.6 x 13.1 inches... - Page 30 H ŌQÑǾ P ÑǾ AC Output Power 4x 20A+1x 30A+1x 40A 4x 20A+1x 30A / 2000W (backup) / 4000W Surge Power 6600W/100ms 3300W/100ms Maximum Power Point 2x, Supports Both Roof and Portable Solar Panels Trackers Inverter Efficiency Up to 95% New Inverter Tech GaN/SiC 3rd generation semiconductor 24/7 Seamless Home Backup...
- Page 31 Customized Mode Backup Power Mode / Time-based Mode / Economical Mode Smart Measurement Smart Energy and Carbon Footprint Report Smart Notifications İ ŎÞŃO Ĭ ŃǾ ÑÑŌ Size 4.3 Inches Resolution Ratio 480 x 800 Screen Pigment 16.7M colors Ĭ M Ņ ÑP Ř Smart Self-Check System 9-Chips Security System...
-
Page 32: Faq
Stay tuned for future updates. How long does it take to fully charge the Mango Power Union / the Power Move using an AC port? The Mango Power Union (6.9 kWh) supports up to 3300W AC charging, so it can be charged in less than 2.5 hours with the maximum charging speed. -
Page 33: Appendix
A ppendix 13.1 Mango Power Union wiring diagram...
