B-K lighting Orion Standard Installation page 2

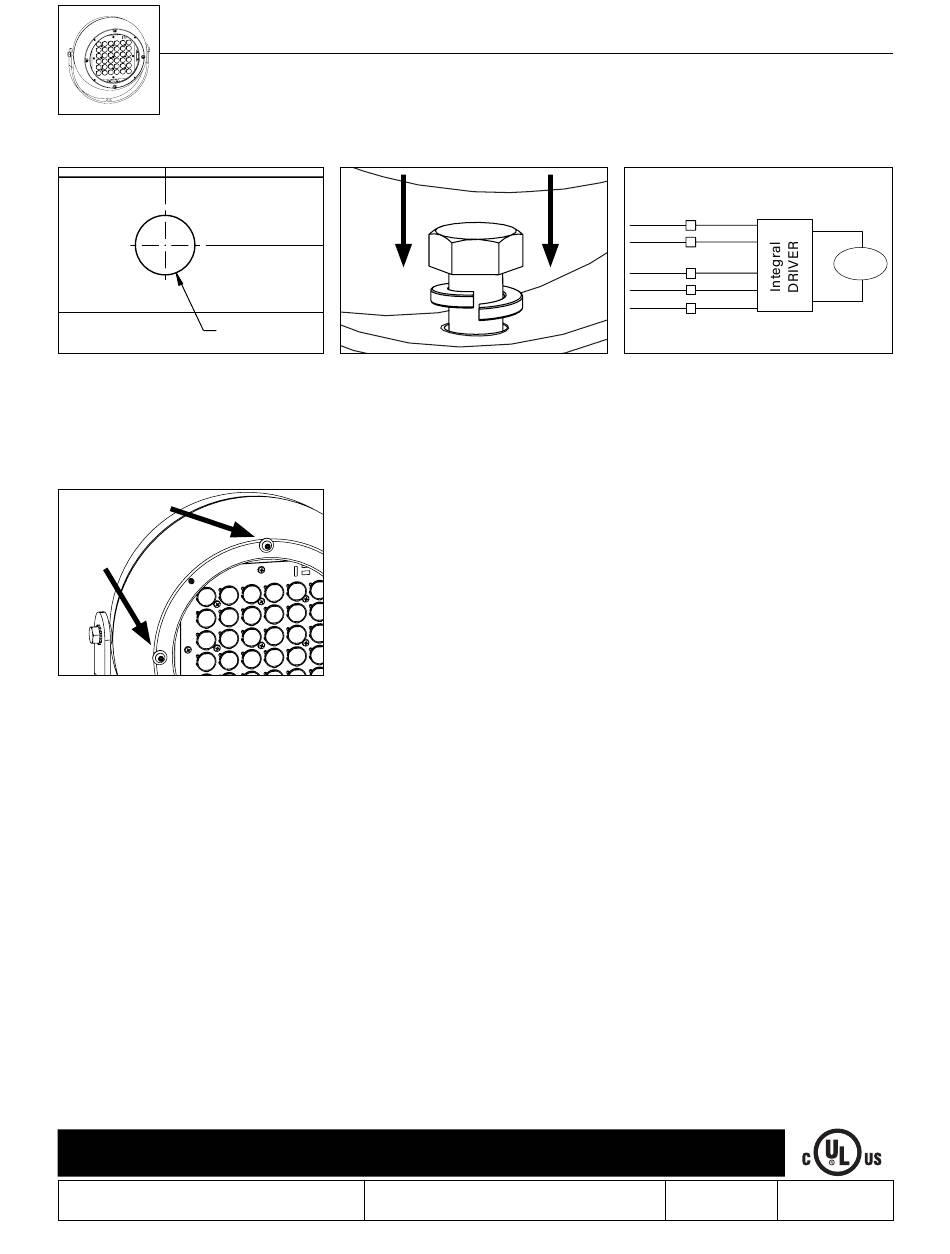

Standard Installation
7/16" Dia.
1. Prepare for installation for yoke location.
Clearance hole is 7/16" diameter.
4. To relamp: remove faceplate and louver by
loosening four (4) tamper resistant screws
using a TORX T27 socket (1/4" bit). Relamp as
needed, then reverse install.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO
MANUFACTURE, USE OR SELL ANYTHING IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
2. Line up fixture yoke to mounting location and
secure with 3/4"-10 bolt and locking washer
(mounting hardware not included).
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
ORION
YOKE MOUNT
0-10V + 0-10V +
0-10V - 0-10V -
HOT HOT
GROUND GROUND
NEUTRAL NEUTRAL
WIRING DIAGRAM
3. Make watertight connections using waterproof
wire connectors to connect incoming primary
wiring to integral driver wiring as per NEC.
Secondary side is factory wired.
RELEASE DATE REFERENCE NUMBER
01/20/2022 INS-2506-00
+
LED
-
