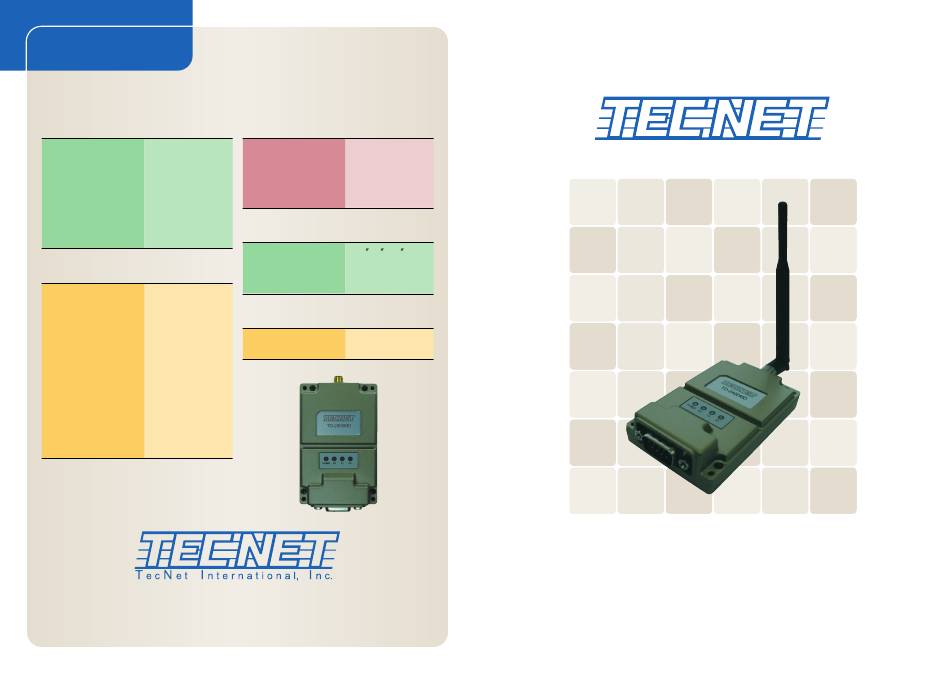

TD-2400MD
7. Specifications
Interfaces
Serial Interface Connector
DE9 Male Connector
RF Connector
Dipole RPSMA Jack
Power Connector
D-Sub PIN
(5-Ground, 9-DC+5V)
Microcontroller Core
Enhanced 8051
Flash Memory
96 KB
Data Memory
8 KB
Serial Interface
115,200bps
RF Characteristics
Frequency Range
2400~2483.5MHz
Frequency Tolerance
±5ppm
Occupied B.W
2MHz
RF Data Rate
250 Kbps for ZigBee
Modulation
O-QPSK
Spread Spectrum
Direct Sequence
Spread Spectrum
Number of Channels
16
Output Power
27 dBm @DC+5V
Power Consumption
460 mA
RX Sensitivity
<-96 dBm at 250Kbps
RF Rate
Power Consumption
40 mA
rd
11535 W. 83
Phone: 913-859-9515
Fax: 913-859-9550
Email: tecnet@tecnetusa.com
Website: www.tecnetusa.com
Electrical / Environmental
Input voltage
DC+5.0V
RF Max Power
500 mW
Operating temperature
-30°C ~ +60°C
range
Storage temperature range
-50°C ~ +85°C
Physical (without antenna)
Dimensions (L x W X H)
3.25 x 2 x .75 /
82.55 mm x 50.8 mm x
19.05 mm
Weight
2.5 oz. / 71 g
Certifications
FCC
VSOXR-2400
Industry Canada
9680A-XR2400
Terrace Lenexa, KS 66214
TD-2400MD
2.4GHz
Data Modem
rd
11535 W. 83
Terrace Lenexa, KS 66214 Website: www.tecnetusa.com
