Infrastructure and Remote Site Server
FCC Part 15, Class A Manual Statement
RF GATEWAY PN: T11008340
FCC ID: SRMT11008340
IC: 6654A-11008340
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. Changes or
modifications not expressly approved by Sensitech could void the users'
authority to operate the equipment
RADIO AND TELEVISION INTERFERENCE
NOTE: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
© SENSITECH INC
REV A

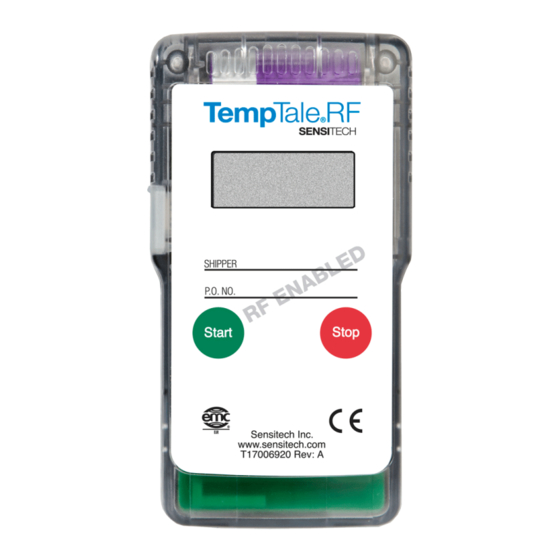

TempTale RF
Setup Instructions
9/6/2005
Date: 8/15/2006
Revision: A
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sensitech TempTale RF
Summary of Contents for Sensitech TempTale RF
- Page 1 (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Sensitech could void the users’ authority to operate the equipment RADIO AND TELEVISION INTERFERENCE NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules.
-
Page 2: Table Of Contents
Installation............................10 Configuration ..........................11 Starting the services ........................12 Appendix A RfNetCfg.xml......................13 Appendix B RfSiteCfg.xml ......................14 Appendix B RfSiteCfg.xml ......................14 Appendix C ReceiveRFData.exe.config. xml ................15 Appendix D SendDataToCentralSite.xml ..................15 © SENSITECH INC REV A 9/6/2005... -
Page 3: Temptale® Rf System
The data is then sent via Internet to a secure database where the data can be viewed and analyzed. The software is Remote Site Server (RSS) and the hardware is; TempTale RF monitors (TTRF) and three other types of RF (Radio Frequency) devices: •... -
Page 4: Section 1: Hardware Configuration Instructions For Ttrf Infrastructure
PC with scientific calculator • Ethernet connection Configuring the TTRF Gateway for a static IP address or DHCP agent Gateway 1) Make sure power is off on the TTRF Gateway. Repeater/Signposts use the same Motherboard. © SENSITECH INC REV A 9/6/2005... - Page 5 DB9 Admin Port on the Motherboard. 3) Make sure the connector on Jumper J4 is present (attached) on the Motherboard. 4) Connect the Sensitech RS232 Serial cable from the TTL Converter to the COM1 port on the Control PC.
-
Page 6: Configure The Repeater/Signpost With A Gln And Set Modes
11) Position the cursor in the popup Hyper Terminal window, and press Enter a few times until you see the following list of commands appear: (Note: It might take a few seconds to come up). © SENSITECH INC REV A 9/6/2005... -
Page 7: Signpost-Repeater Commands
15) To set the Repeater/Signpost to Signpost mode, Press S. Press L to Enter Signpost GLN number. Convert the 13 digit decimal number, i.e 1234567890123 into Hex. It should be displayed as shown on the calculator screen. Convert Decimal to Hex © SENSITECH INC REV A 9/6/2005... - Page 8 19) Use the “*” command to unbind a Repeater that has previously been “Bound” to a specific TTRF Gateway. Note: You can also use the “Unbind” button (SW1) on the Repeater/Signpost Motherboard to unbind from a TTRF Gateway. © SENSITECH INC REV A 9/6/2005...
-
Page 9: Led Patterns
0.33 second blink rate: Functioning as a Repeater, bound to a specific Gateway. 1 second blink rate: Functioning as a Signpost. 2 second blink rate: Neither a Repeater nor a Signpost, actively scanning channels for the beacon from a TTRF Gateway. © SENSITECH INC REV A 9/6/2005... -
Page 10: Section 2: Software Installation Instructions Ttm Remote Site Server
Files” Note: Leaving the destination blank will install the software to the system’s default program files directory. 2) This .bat file will launch 2 silent installs, one installing TTM Desktop and the second the services listed above. © SENSITECH INC REV A 9/6/2005... -
Page 11: Configuration
2) Open RfSiteCfg.xml with Notepad. 3) <RFDownloadPath> Set the path to where TTM Desktop is installed + \RFDrop i.e. default would be C:\Program Files\Sensitech\TempTale Manager Desktop\RFDrop 4) <RfApp> Verify there is a tag for each type of application being used in the network. -
Page 12: Starting The Services
8. If you received any errors, verify the supporting config and xml files were edited correctly. If you need to edit any of the xml files, then simply stop the Sensitech TTRF Service, edit the files and then restart the service. -
Page 13: Appendix A Rfnetcfg.xml
GwNameOrIP="192.168.1.92" TstConnIntvl="900" ReConnIntvl="60" /> <Repeater HwId="3781220487940567" GwBoundTo="192.168.1.92" /> <Repeater HwId="3781220487940339" GwBoundTo="192.168.1.92" /> <ForceAcquireInterval>1800</ForceAcquireInterval> <!-- Interval in seconds to reacquire all omegarfs --> <Snmp MgrNameOrIP="192.168.1.47" MgrPort="162" NotifyLnkDwn="true" NotifyLnkUp="true" enterprise="1.3.6.1.4.1.23684.6.1.0" GwDwnOid="1.3.6.1.4.1.23684.6.1.0.5.0" GwUpOid="1.3.6.1.4.1.23684.6.1.0.6.0" RptrDwnOid="1.3.6.1.4.1.23684.6.1.0.7.0" RptrUpOid="1.3.6.1.4.1.23684.6.1.0.8.0" /> </RfNetCfg> © SENSITECH INC REV A 9/6/2005... -
Page 14: Appendix B Rfsitecfg.xml
Software Installation Instructions TTM Remote Site Server Appendix B RfSiteCfg.xml <RfSiteCfg> <RfDownloadPath> C:\Program Files\Sensitech\TempTale Manager Desktop\RFDrop </RfDownloadPath> <!-- --> path to which temptalerf files are automatically downloaded to <!-- the following are the definition for the RFApp attributes--> <!-- id is the application id programmed into the monitor to tell the -->... -
Page 15: Appendix C Receiverfdata.exe.config. Xml
