Alberici Active One Operator's Manual

Cashless rfid module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1. General Data
Overall Dimensions:
Weight (optional accessories not included):
Power supply:
Nominal power:
Working Temperature:
Installation:
System Components:
Control board
Display
Pushbuttosn

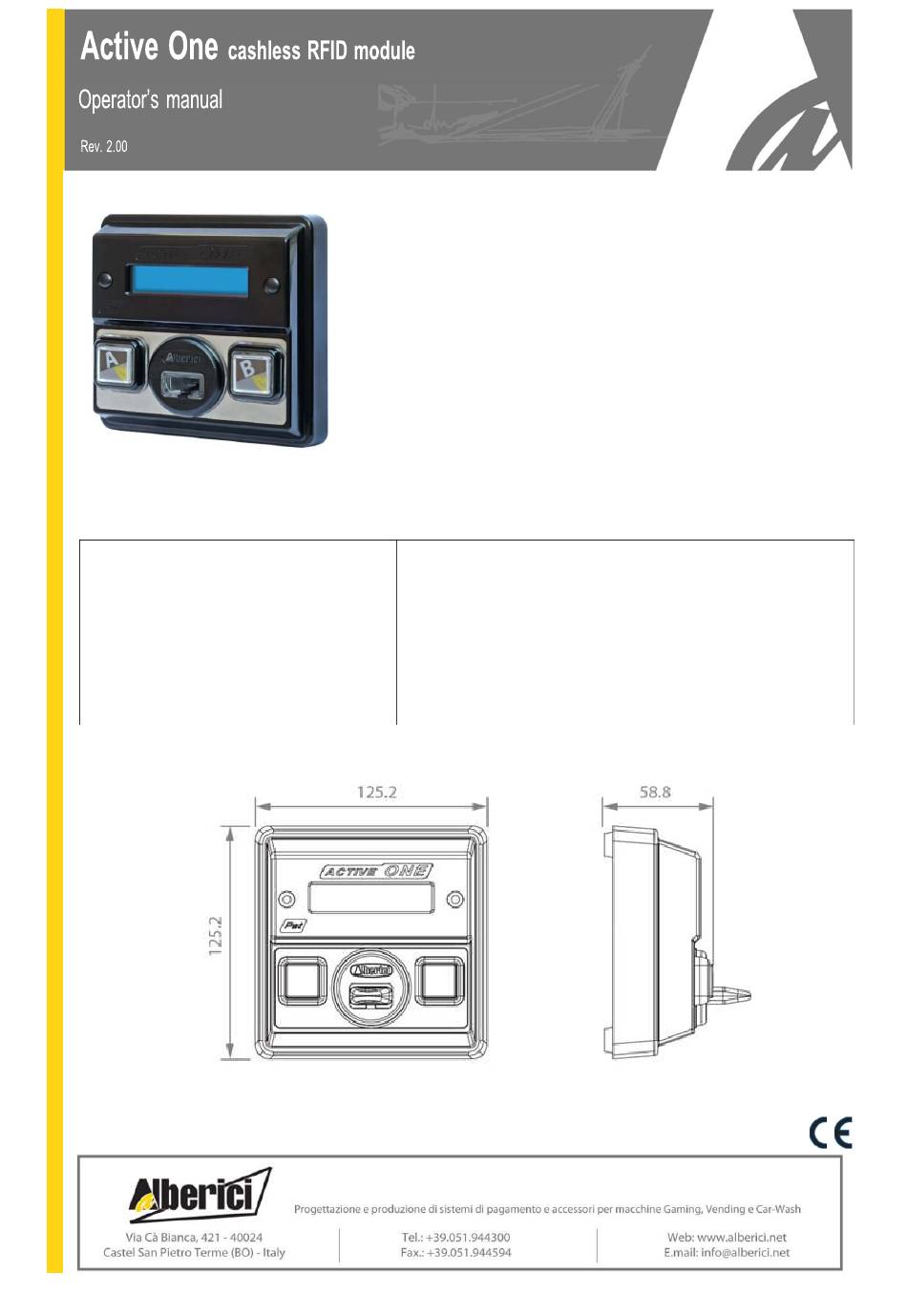

2. Dimensions
The
RFID ACTIVE ONE module can handle cashless payments by single credit keys,
and supply the relevant service after the relevant activation pushbutton has been
pressed. It can be installed outdoor, but it is recommended that the mounting
position is conveniently protected against bad weather.
Available functions
- Payment and activation of the service requested (up to 2 lines)
- Control of accounts on display (access by master key or by the inner pcb on-board
keys)
- Price and time can be set by the menu (access by master key or by the inner pcb
on-board keys)
125 mm (l) x 125 mm (h) x 50 mm (d)
250
gr.
12 Vdc
3,6 W (0,3 A)
-10°C ÷ +50°C (humidity 10% ÷ 90%
On wall or deck, outdoor or indoor
Alberici ACTIVE ONE, with blue display 2x16 LCD
2 x 16, built-in
Illuminated, Halo effect, 2-leds white-blue PL-MR31
non-condensed)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Active One and is the answer not in the manual?

Questions and answers

Summary of Contents for Alberici Active One

  • Page 1 RFID ACTIVE ONE module can handle cashless payments by single credit keys, and supply the relevant service after the relevant activation pushbutton has been pressed. It can be installed outdoor, but it is recommended that the mounting position is conveniently protected against bad weather.

  • Page 2: Installation

    It is recommended that the device is installed in such a position that is conveniently protected against bad weather. The ACTIVE ONE module is fit with a gasket template, that must be kept between the module itself and the panel surface on which it will be mounted.
  • Page 3 The output activation signals will be available from the same P5 socket, between pin 2 and pin 6 (TTL Open Collector mode) for User A and User B respectively. If the A / B machine(s) to be activated are not equipped with an interface relay or pcb, please make use of the Alberici Servo-realy p.c. board (see next section 3.3).
  • Page 4 4.1 Initializing the ACS Key Reader module: Power the machine on: the display of the Active One module will lit up red to warn that it must be initialized: Edit a 6-digit PIN code, write it down and keep it in a safe place.
  • Page 5 NOTICE: to use the device, User Keys must be available and loaded with credits; to initialize User Keys, it is necessary to initialize the Master Key first, and possibly the Service Key(s). See section below. Once the Master and Service key(s) are ready, insert any of them in the reader to enter the “Service Menu”. The “Service Menu”...

  • Page 6: Operation

    Insert credit If the machine is fitted by a ccTalk coin acceptor, and this one is connected to the Active One, it is possible to re-load the key by inserting coins until the wanted value, and by pressing the button. The display shows: Data save Credit xx.xx €...

  • Page 7: Device Configuration

    Press the DOWN key to scroll functions frontwards and to decrease values Press the OK key to confirm option or value The structure of the menu is revolving, so any option can be reached either using the UP key or the Down key. MENU STRUCTURE ACTIVE ONE Promo EXIT ACCOUNTS...
  • Page 8 ACCOUNTS Show Account records Partials Line A Partials Line B Exit 0,00 € 0,00 € (*) Must Reset Reset enter the Accounts Total records PIN code Reset partial records Exit 6.2.2 SHOW CCTALK PERIPHERAL UNITS This function shows the state of the devices (connected, disconnected, in error, …): CASHLESS COIN ACCEPTOR CONNECTED...
  • Page 9 6.2.3.1 Set up peripheral devices (Cashless = ACS Key Reader) By the Master and Service key(s) it is possible to enter the “Service Menu” without any need to open up the unit and get access to the pcb programming keys. The “Service Menu” allows to initialize as many User keys as desired; this function is possible only by the “Service Menu”, or by the ACR programmer.

  • Page 10: Restore Default Configuration

    After the 5 error, the machine will be blocked, while the display will show two codes. Please send such codes to Alberici Assistance, to get the reset information. 6.2.3.5...
  • Page 11 In case the programming unit should not find the USB drivers in your PC, they are in the software-CD included, or from the Download Area of www.alberici.net (Download Area / Programmer Kits / Driver Silicon Lab 2K3 XP Vista 7.rar).
  • Page 12 Start the program “cctalk-mifare.exe” . The following prompt will be displaying: Choose ‘Lavorare nel sistema cctalk’ (‘operate in cctalk mode’). The window below will appear: Choose 'Lavorare nel sistema ccTalk' ('Operate in ccTalk mode'), then the window below will appear: Check that the application reads from the right USB Port: click ‘Impostazioni >...
  • Page 13 Card/Key’). If the Card/Key is not compatible, the message ‘Chiavetta non associata Alberici’ (‘Card/Key not compatible with Alberici reader’) will appear. If the Card/Key has not yet been initialized, the orange bar in the side window shall appear, showing ‘Chiave ancora da abbinare a questa password’...

  • Page 14: Very Important

    The credits can be charged / added to the Card/Key in any of the following ways: 7.2.1 Self-Service charging kiosk: the kiosk must contain the Card/Key ACS module, the Alberici ccTalk coin acceptor, and/or the note validator. An easy example of such charging kiosk is the Hira range of Token Dispensers: Hira One, Hira 2 Mini, Midi, Maxi.
  • Page 15 Credit must be written in hundredth parts, i.e. 2 € = 200. Confirm by the OK button, and close down the windows by clicking on the crossed boxes at top-right corners of each window. Or else, repeat the steps to fill other initialized User Card/Keys with credit.

  • Page 16: Product Disposal

    - detailed report of the problem found and the circumstances in which it occurs. Before sending the product, please get in touch with your Dealer or with Alberici S.p.a. (+39 051 944300); very malfunctions can be fixed via a simple phone call, saving you costs and time.
  • Page 17 NOTICE Alberici S.p.A. reserves the right to change the features and the specifications to the equipment described at any time and without notice, in the pursuit of the incessant improvement of its products.
