Solaire R4 User Manual

Smart heating element
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
R4
Smart Heating Element
User Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Solaire R4

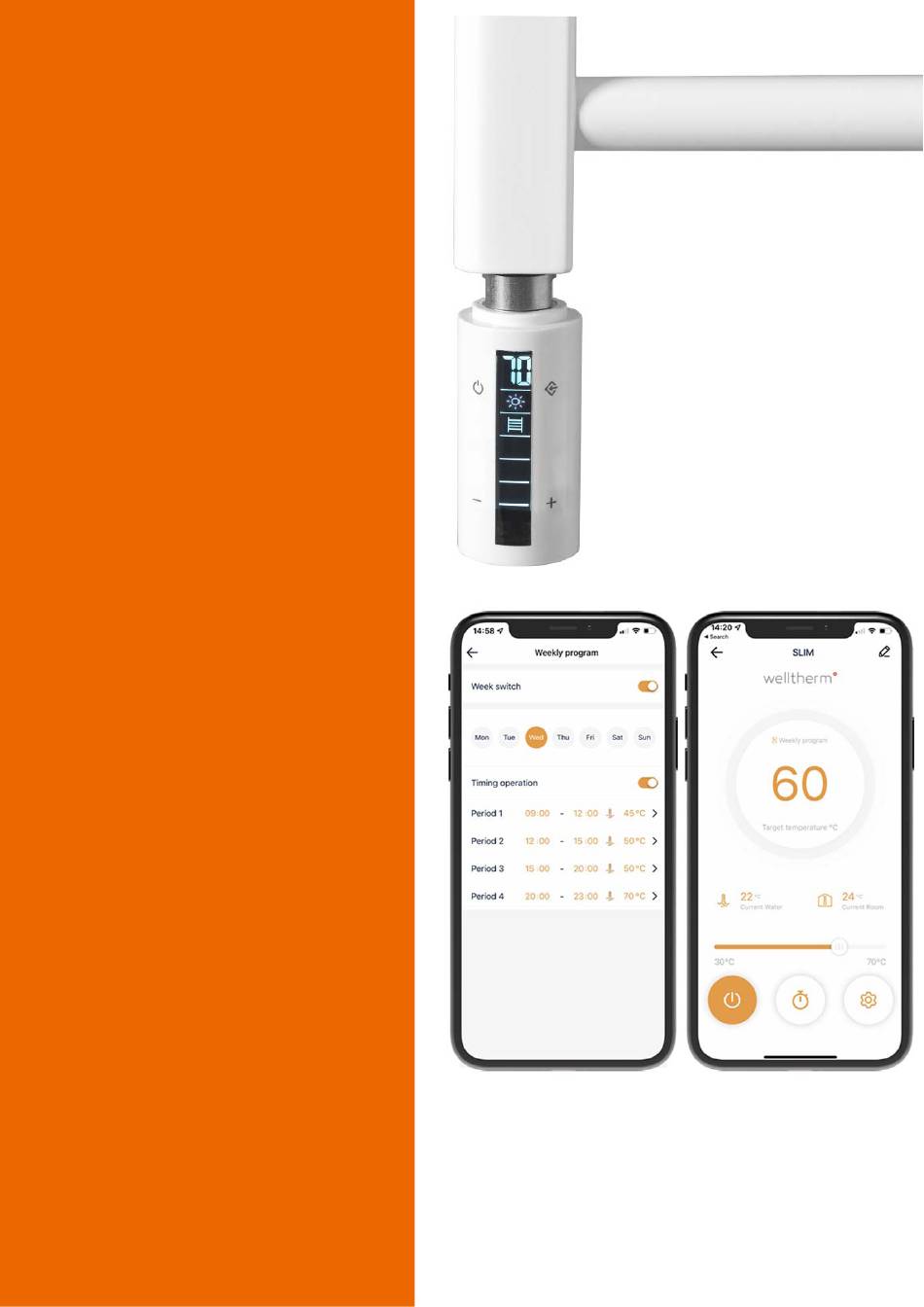

  • Page 1 Smart Heating Element User Guide...

  • Page 2: Table Of Contents

    Contents • Security: Page 3 • Use in Accordance With Regulations : Page 3 • Safety Instructions: Page 3 • Pre installation: Page 4 • Element Control Panel: Page 4 • Using The Control Panel: Page 5 • WiFi App: Page 5 •...

  • Page 3: Security

    Security Danger Danger to life from electric shock Please read this instruction manual carefully and keep all applicable Danger documents for future reference. Danger to life or personal injury Warnings are classified as follows: Danger Risk of property damage or damage to the environment Use in accordance with Regulations This heating element is a component and must only be used if connected to a liquid-filled radiator (e.g.

  • Page 4: Pre Installation

    The R4 is a 230V (class I) appliance and must be connected to either a plug socket (if this is permitted in the respective country) or to a fused connection box (according to the local regulations). Please observe the required degree of protection for electrical devices in the instillation area.

  • Page 5: Using The Control Panel

    Download the App • Download and install the “SolAire WiFi IQ” APP from either the Android Play Store or the iOS APP Store • Now you will need to create an account. If you already have an account, sign into the existing account.

  • Page 6: Pairing The Element To The App

    Setting the element to WiFi pairing Resetting the Device mode Press for 5 seconds until the beep 2) Go to app mode “PC” sounds 1) Turn the Device Flashes fast / slow The device is ready to pair When this symbol is flashing fast.
  • Page 7 7)The App will then begin to pair with the R4. 6) Enter WiFi details and press Next Wait until the App 8) Once connected, the prompts you to proceed. above image will be displayed. Now name the device and save Manual Pairing If the heater does not appear, as showing step 3, add the heater manually.

  • Page 8: Wifi App Control Panel

    App’s Control Panel Back to device list Edit Device Name Target temperature Using the slider, adjust the target temperature. Device settings • Room temperature compensation • Weekly programming • Lock device • Open window detection • Maximum surface temperature ON / OFF Boost mode (Stand by Heating for 2 or 4...

  • Page 9: Element Key Pad

    Element’s Keypad On / Standby” button (With acoustic signal) 2 hour boost function Adjust target temperature 4 hour boost function Fixed program functions APP mode to control with the APP (Press button several times) Control from remote control If the element is disconnected from the power supply the controller will loose the program data. When power is restored, the controller will switch to the last used water temperature.

  • Page 10: Using The Remote Control

    Using the remote control Batteries (2 pieces type AAA 1.5V) are not included Do not use the remote control in the bath, shower etc. Keep the remote control far away from water and other liquids. To remove the protective foil The display of the remote control is protected by a foil.

  • Page 11: Setting The Timer With Remote Control

    Setting the timer using the remote control • Select which day(s) of the week are being programmed. • It is possible to programme a single or multiple days. • Up to 4 different periods per day can be defined. Press the days 1-7 will be displayed.
  • Page 12 Press: Setting the current • 1 times = Set summer/ Winter time (Change with + or - ) time and day • 2/3 times= Set the current time (Change with + or - ) • 4 times = Set the day of the week (Change with + or - ) To programme Monday and Wednesday the same, select both days then enter Setting programme the start and stop times.

  • Page 13: Sending Data From The Remote To The Element

    Sending data from the remote to the element The element can only received data sent from the remote if: • The transmission is performed at a short distance (max. 8 metres) • There are no obstacles between the element and remote •...

  • Page 14: Deleting Entries During Data Entry

    Deleting entries during data entry If you make a mistake when entering the day, time, temperature etc., the entry can be cancelled by pressing button. The display will then return to the last step. Switching between Summer and Winter time Press and hold the button.

  • Page 15: Recycling And Disposal

    Symbols on the display If the remote control has been disabled by a password and you try to make an entry, the display “Lo Ct” will appear and you will not be able to make the entry. Once a password has been successfully entered to disable the system, the word “good” will appear and the remote control will be disabled.
  • Page 16 SolAire Heating Products Big Shed New Row Eppleby DL11 7AW (+ 44) 01325 717 899 info@solairehp.co.uk...
