90mm LI-ION CORDLESS
NAILER OWNER'S MANUAL
Improper and unsafe use of this tool will result in death or serious injury. It is very
important that the intended operator of this tool reads and understands this manual
before operating this tool. Keep this manual available for others before they use the tool.
0508 782 753 |
Freephone
sales@delfast.com
Email
|
@DelfastNZ #Delfast
delfast.com
Advertisement
Table of Contents
Summary of Contents for Delfast NAC-CN90
- Page 1 Improper and unsafe use of this tool will result in death or serious injury. It is very important that the intended operator of this tool reads and understands this manual before operating this tool. Keep this manual available for others before they use the tool. 0508 782 753 | sales@delfast.com Freephone Email @DelfastNZ #Delfast delfast.com...
-
Page 2: Table Of Contents
Depth of drive adjustment Actuation method and the steps to fire the tool Jam clearing Charging the battery and LED on tool and charger Maintenance Instructions General maintenance Cleaning Cold weather Storage Trouble Shooting Freephone. 0508 782 753 Email. sales@delfast.com... -
Page 3: Product Overview

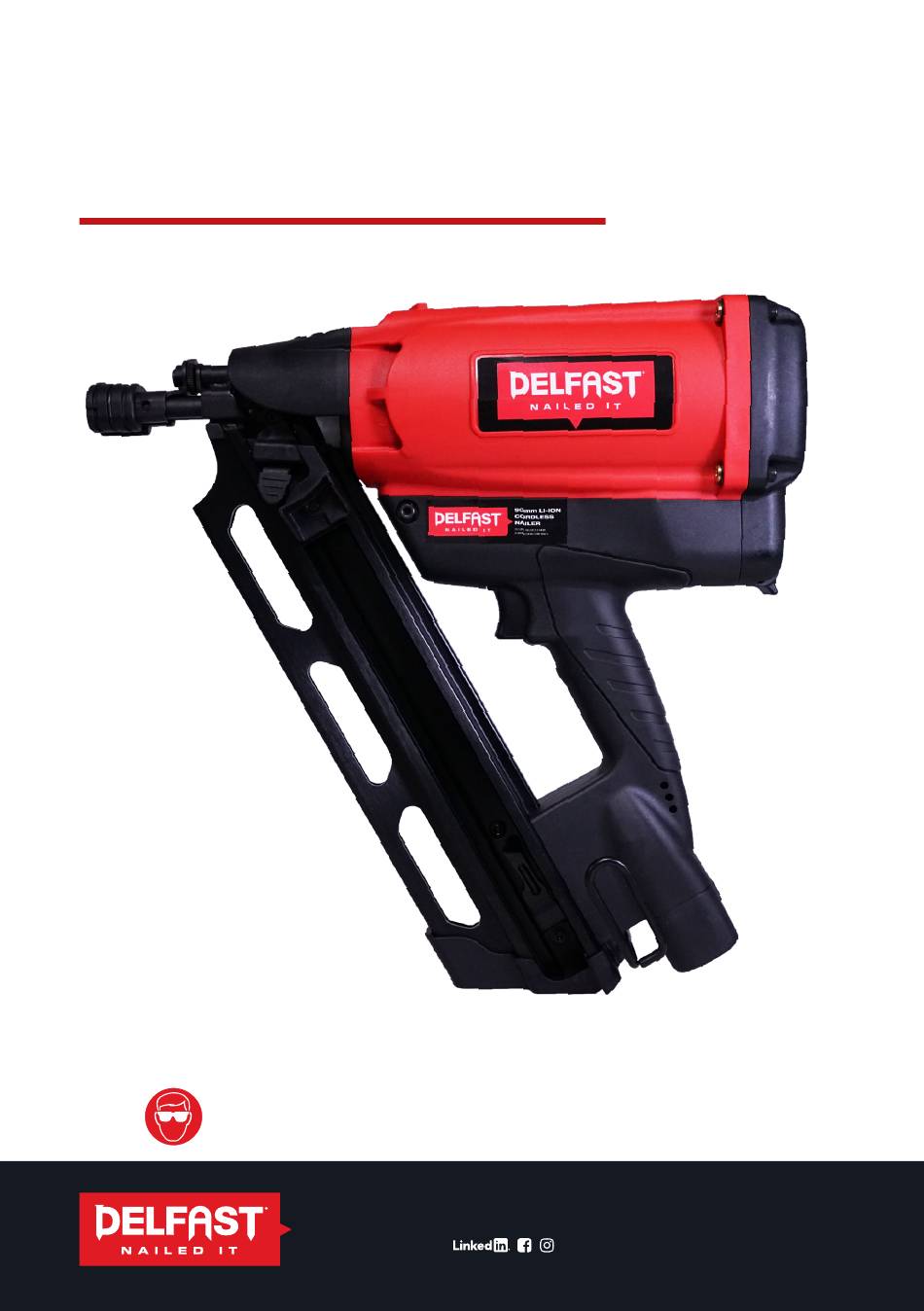

Product Overview Fuel Cell Door Belt Hook Release Button A LED Indicator Release Button B Pusher Battery Magazine Depth of Drive Adjustment delfast.com... -
Page 4: General Warning
Only wear gloves that provide adequate feel and safe control of triggers and any adjusting devices. This tool is recommended NOT TO BE used in wet conditions. As it may damage components of the tool and void the warranty. Freephone. 0508 782 753 Email. sales@delfast.com... -
Page 5: Tool Handling
Remove the fuel cell and battery when: Not in use Performing any maintenance or repairs Clearing a jam Elevating, lowering or otherwise moving the tools to a new location Tool is outside of the operator’s supervision or control Removing fasteners from the magazine delfast.com... -
Page 6: Tool Safety Warning
A greasy handle or body may cause an accidental drop of the tool and injury to nearby persons. Recommended Fasteners and Accessories • Use only Delfast fasteners and accessories. • Do not use the tool in any way other than described by the manufacturer. •... -
Page 7: Battery Safety Warning
Do not allow direct contact of the battery nodes with metal or conductive material. • Charge the batteries every 3months, even if the tool is not used, to prevent excessive discharging which may damage the battery. • Please charge the battery for at least 2 hours before first-time use. delfast.com... -
Page 8: Charger Safety Warning
Complete Charge <0.15A typ Total Charge Time 2 Hours max Overvoltage Protection 8.5V typ Work Temperature 0°C – 50°C Battery Pack Temperature Protection T < 0°C or T > 55°C Continuous Power Output 17W max Freephone. 0508 782 753 Email. sales@delfast.com... -
Page 9: Operation Instructions
This tool is equipped with tool-free depth of drive adjustment. Test the depth of drive on scrap piece before you start your work. • Turn the knob to adjust the depth of drive (Image C) • Repeat above procedure until you find your desired depth-of-drive setting. delfast.com... -
Page 10: Actuation Method And The Steps To Fire The Tool
State of Battery Charger LED Indicator State Red LED Green LED Idle – Input Power Available Battery Installed and Charging Battery at Full Charge Over Temperature Protection Blinking Blinking Over Charge Time Blinking Blinking Freephone. 0508 782 753 Email. sales@delfast.com... -
Page 11: Maintenance Instructions
Cleaning • It is recommended to clean your tool every 3 months depending on usage. See delfast.com/videos for our clean & care video. Cold Weather • This tool is not suggested to be used in cold weather. The cold weather will decrease the combustion efficiency and battery performance. -
Page 12: Trouble Shooting
Battery does not accept charge or the charger gets hot when • Replace the battery. If this action corrects the charging. problem, you can confirm the battery was damaged. CAUSE • Replace the charger. • Damaged battery. • Damaged charger. Freephone. 0508 782 753 Email. sales@delfast.com... - Page 13 Issue with fuel cell. • Return to authorised service agent or manufacturer • The tool may be over heated. for repairs. For failures other than above situation, please stop using the tool and contact authorised service agent or manufacturer. delfast.com...
