Leviton CD100 Installation Instructions

DALI Loop
Power Pack
Cat. No. CD100
110mA output max.,
12VDC nominal
For use with DALI
Dimming/Scene Controller
INSTALLATION
INSTRUCTIONS
DI-000-CD100-00A
LIMITED 2 YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and
not for the benefit of anyone else that this product at the
time of its sale by Leviton is free of defects in materials
and workmanship under normal and proper use for two
years from the purchase date. Leviton's only obligation
is to correct such defects by repair or replacement, at its
option, if within such two year period the product is
returned prepaid, with proof of purchase date, and a
description of the problem to Leviton Manufacturing
Co., Inc., Att: Quality Assurance Department, 59-25
Little Neck Parkway, Little Neck, New York 11362-
2591. This warranty excludes and there is disclaimed
liability for labor for removal of this product or
reinstallation. This warranty is void if this product is
installed improperly or in an improper environment,
overloaded, misused, opened, abused, or altered in any
manner, or is not used under normal operating conditions
or not in accordance with any labels or instructions. There
are no other or implied warranties of any kind, including
merchantability and fitness for a particular purpose, but
if any implied warranty is required by the applicable
jurisdiction, the duration of any such implied warranty,
including merchantability and fitness for a particular
purpose, is limited to two years. Leviton is not liable for
incidental, indirect, special, or consequential damages,
including without limitation, damage to, or loss of use of,
any equipment, lost sales or profits or delay or failure to
perform this warranty obligation. The remedies provided
herein are the exclusive remedies under this warranty,
whether based on contract, tort or otherwise.
For Technical Assistance Call:
1-800-824-3005 (U.S.A. Only)
www.leviton.com
DI-000-CD100-00A
• A maximum of 2 Power Packs can be added in parallel as long as the total current supply on a single loop is
below 250mA
• Control wiring can be Class 1 or Class 2 installed
• Polarity-independent control wiring
• Flexible 2-wire DALI loop control wiring – Daisy Chain, Point to Point, Star or Mix Method
Input Voltage: 120/277VAC ± 10%
DALI Output Voltage: 12VDC nominal
DALI Output Current: 110mA
Approved for Class I or II control wiring
Leviton's DALI Loop Power Pack, Cat. No. CD100, provides power to a DALI network. The DALI Loop Power
Pack is part of Leviton's DALI compatible products and can be used with Leviton's CD250 Controller or other
DALI compatible controls and ballasts. Installation and Information for the Controller is provided in the
Controller Instruction Sheet.
A single Power Pack can provide 110mA of power, which would be used by a combination of DALI compatible
controllers and ballasts. Use the following rule to determine the number of controllers and ballasts that can be
powered by one Power Pack. For reference, a Leviton DALI Dimming/Scene Controller (CD250) consumes a
maximum of 10mA of power and a DALI ballast consumes up to a maximum of 2mA.
No. of DALI controllers X Current Consumption (10mA for Leviton's CD250) + No. of DALI ballasts
X 2mA ≤ 110mA
If more current is required, one other Leviton DALI Loop Power Pack can be added in parallel to a single DALI
network, which would bring the total current supply to 220mA (refer to Wiring Diagram 2 for dual Power Pack
application). Please note that the total current supply on a DALI loop cannot exceed 250mA.
The Power Pack is mounted directly to a junction box (refer to Figure 1). The unit must be installed in a
properly grounded metal 4" (10.16 cm) outlet box, a minimum of 2 1/8" (5.39 cm) deep. All Class 2 (low-voltage)
wiring must be contained within the Class 2 compartment (the area enclosed by the isolation barrier) (refer to
Figure 2). All Class 1 (high-voltage) wiring must be contained within the Class 1 compartment (refer to Figure 2).
Install or rearrange circuit wiring so all high-voltage circuit and load wires enter the box from one side, and all
low-voltage wires enter from the other.
INSTALLATION INSTRUCTIONS
WARNING: TO BE INSTALLED AND/OR USED IN ACCORDANCE WITH APPROPRIATE ELECTRICAL
CODES AND REGULATIONS.
WARNING:
THE INSTRUCTIONS WERE WRITTEN WITH THE ASSUMPTION THAT THE INSTALLER IS
FAMILIAR WITH ELECTRICAL WIRING PRACTICES. IF YOU ARE NOT SURE ABOUT ANY PART OF THESE
INSTRUCTIONS, CONSULT A QUALIFIED ELECTRICIAN.
CAUTION: DISCONNECT POWER WHEN SERVICING FIXTURE OR CHANGING LAMPS.
CAUTION:
THE CD100 CAN BE WIRED EITHER AS A CLASS I OR CLASS II WIRING DEVICE. BE SURE
TO INSTALL IN THE SAME MANNER AS THE OTHER DEVICES ON THE DALI LOOP. WHEN IN DOUBT,
INSTALL AS A CLASS I WIRING DEVICE. CONSULT LOCAL BUILDING CODES AND REGULATIONS FOR
PROPER LOW-VOLTAGE INSTALLATION.
TO INSTALL:
NOTE: Read all instructions thoroughly before proceeding.
WARNING:
1. TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR FUSE
AND TEST THAT POWER IS OFF BEFORE WIRING!
2. Remove junction box cover plate and save screws. The Power Pack will take the place of the junction box
cover (refer to Figure 1).
3. Prepare high and low-voltage wires by stripping 3/4" (1.9 cm) of insulation to expose bare copper at the end
of each wire.
4. LINE VOLTAGE CONNECTIONS: Identify the voltage of your lighting circuit before attempting to install the
Power Pack, either 120 or 277 VAC. In accordance with local wiring codes, connect lead wires of Power
Pack per appropriate WIRING DIAGRAM as follows: Line (BLACK) lead to the Hot (BLACK) circuit
conductor. Connect the Power Pack Neutral (WHITE) lead to the Neutral (WHITE) circuit conductor.
FEATURES
SPECIFICATIONS
DESCRIPTION

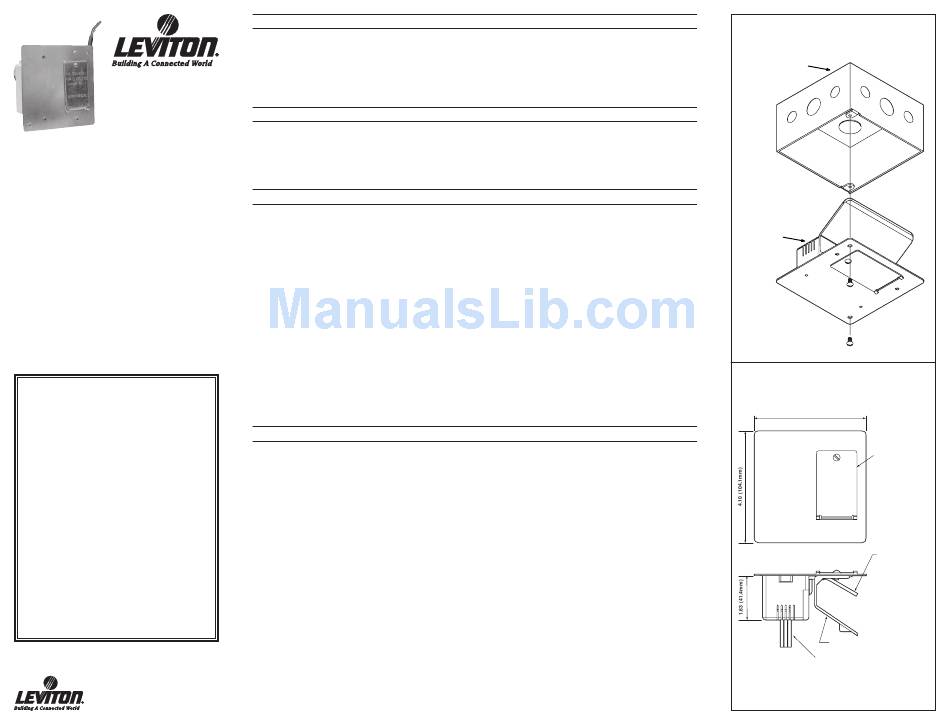

Figure 1 – Mounting
4" SQUARE
ELECTRICAL BOX
CD100
Figure 2 – Wiring Locations
4.10 (104.1mm)
LOW-VOLTAGE
COMPARTMENT
COVER
THIS
COMPARTMENT
FOR CLASS TWO
WIRING ONLY
LOW-VOLTAGE
LEADS
INSULATION BARRIER
HIGH-VOLTAGE LEADS
