MAC TOOLS ET750 Quick Start Manual

en Quick Start Guide
1. Product description

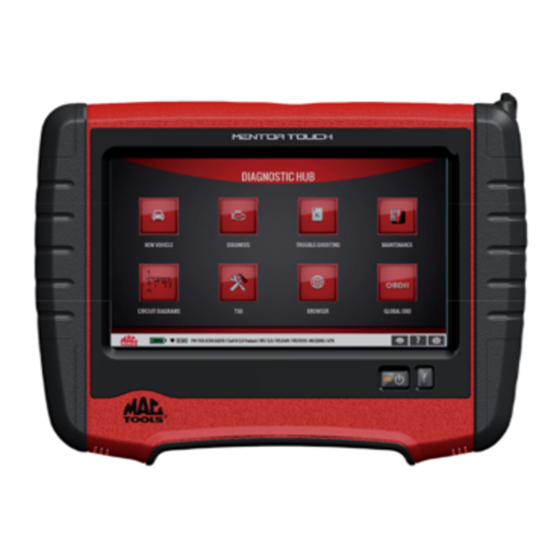

Fig. 1: ET750
1 On/Off button
Briefly pressing the On/Off button sets the ET750 to standby mode or
ends standby mode as applicable.
Pressing the On/Off button for > 2 seconds shuts down the Windows
operating system and switches off the ET750.
2 Function key
Pressing the function key ƒ opens or closes the start menu and task
bar of WIN 10 as applicable.
Pressing the function key ƒ for > 2 seconds opens or closes the virtual
keypad as applicable.
1 2 3
Fig. 2: View of ET750 interfaces
1 RJ-45 network connection (LAN)
2 Monitor connection
3 USB port (2x), USB 3.0, max. 1 A
4 Memory card slot (SD card)
5 Headphone connection
6 Power supply unit connection (12 V DC)
2
1
4 5 6
2. Initial commissioning
¶
Remove the ET750, the ET650, the storage battery and the
power supply unit with power supply cable from the case.
2.1 Fitting the storage battery
1. Loosen the screws in the battery cover (fig. 3, item 3) on
the back of the ET750 and remove the battery cover.
2. Orient the storage battery properly, place it in the bat-
tery compartment and slide it onto the battery connector
(fig. 3, item 1).
3. Fasten the storage battery using the two screws on the
battery (fig. 3, item 2).
4. Reinstall the battery cover and fasten it with the screws.
2
3
Fig. 3: Inserting the storage battery
1 Battery connector
2 Battery screws
3 Battery cover screws
i
It is advisable to charge the storage battery for at least
three hours before running the ET750 off the battery.
2.2 Connection
Prior to the initial commissioning, make sure the mains
voltage coincides with the voltage specified on the power
supply unit (use the power supply cable provided).
ET750
1
2
3
