Summary of Contents for SCUDO NU-022

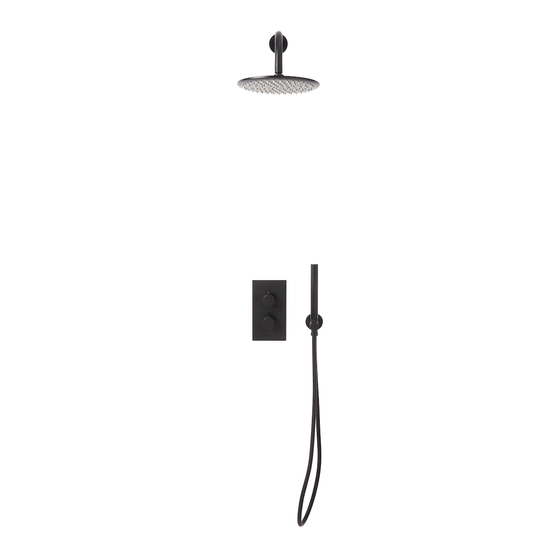

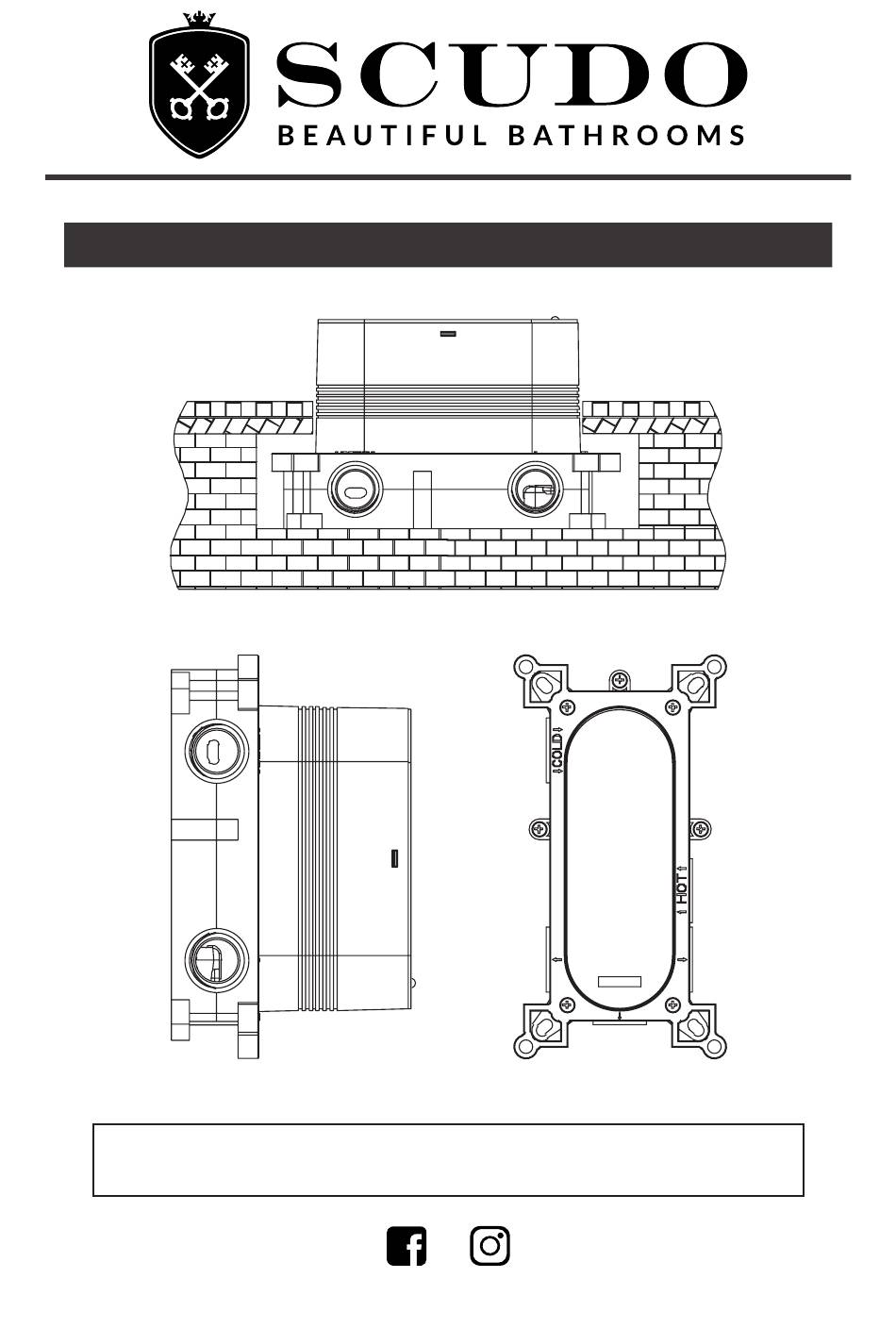

- Page 1 Thermostatic Recessed Dual Control Shower Valve Installation Instructions & User Guide Models Covered: NU-022 / NU-023 / NU-024 NU-028 / NU-029 / NU-030 IMPORTANT: Please keep these instructions for future reference.
-
Page 2: Table Of Contents
Contents: Thank you for choosing Scudo. We have designed this product with our customers in mind. To ensure that it works as we intended, it needs to be fitted by a professional. These fitting instructions give you all of the information you need for installation. Do not hesitate to call our customer service team on 0330 124 7290 for assistance. -
Page 3: Important Safety Information
Important Safety Information: • Please thoroughly read this set of instructions and retain for future use. • All products manufactured and supplied by Scudo are safe provided they are installed, used correctly and receive regular maintenance in accordance with these instructions. -
Page 4: General Information
General Information: This product has been tested to the Water Regulations Advisory Scheme (WRAS) and satisfies the requirements of the Water Supply (Water Fittings) Regulations 1999 and current bylaws. BS7600 recommends the temperature of stored water should never exceed 65ºC. A stored water temperature of 60ºC is considered sufficient to meet all normal requirements and will minimise the build up of lime scale in hard water areas. - Page 5 Pack Contents: NU-022 / NU-023 / NU-024 Concealed Dual Outlet x1 Shower Wall Arm x1 Handle Shrouds x2 Concealed Plate 1x Valve Body Fixings x4 Handle x2 Insert x1 Temperature Control x1 Wall Bracket & fixings x1 10. Slider Bracket x1 11.
- Page 6 Pack Contents: NU-028 / NU-029 / NU-030 Concealed Dual Outlet x1 Shower Wall Arm x1 Handle Shrouds x2 Concealed Plate 1x Valve Body Fixings x4 Handle x2 Insert x1 Temperature Control x1 Wall Outlet/Handset mount x1 10. Handset x1 11. Drench Head 12.
- Page 7 Installation: Shower Valve This shower valve is designed for installations Important: Water supplies to the mixer must where a recessed valve is already installed in be with hot on the left and cold on the right the wall cavity and is to be replaced, or for new when viewed from the front.
-
Page 8: Installation
Installation: Shower Valve 4. Finish wall surface Plasterboard and tile the cavity wall. After cut down plastic case to be flush against the wall. Fit the shrouds after this process. Plaster Tile Cut & Shrouds 5. Fit concealing plate and handles Run a bead of waterproof silicon sealant around the inner edge of the concealing plate. -
Page 9: Operating The Shower
Installation: Wall Arm and Drench Head Wrap PTFE Tape around the thead on the wall arm and screw into the back plate elbow. Screw drench head onto the wall arm. Operating the Shower: 1. Two outlet diverter This outlet allows the user to divert the flow of water from one product to another. Turn the handle one way or the other to turn the flow of water on to your chosen product. -
Page 10: Maintenance
Maintenance General Cleaning Your fitting has a high quality finish and should be treated with care to preserve the visible surfaces. All surfaces will wear if not cleaned correctly, the only safe way to clean your product is to wipe with a soft damp cloth. Stains can be removed using washing up liquid. -
Page 11: Adjusting The Temperature
Maintenance a. Remove the cold water outlet hexagonal nut (4) using a socket wrench. b. Remove cartidge. c. Clean mesh with warm soapy water. d. Repeat the same for warm water outlet (2) Adjusting the Temperature The shower valve has been factory set to 42ºC with equal (balanced) hot and cold water supply pressures, with the hot water supply at 65ºC. -
Page 12: Troubleshooting
Troubleshooting Symtom Cause Remedy No flow or low flow rate and / Check showerhead, hose and filters Clean as necessary, refer to for any blockage. maintenance page. or varying temperatures. Partially closed stop or service valve Open stop or service valve. in water supply pipework to the shower valve. - Page 13 Troubleshooting Symptom Cause Remedy Water temperature too cold - Hot water temperature is Adjust hot water temperature less than 10ºC above the or wait for water to reheat if Maximum water temperature required blend stored system is used. incorrectly set. temperature.
- Page 14 Notes: Please use this space to add any notes you or your installer may have regarding the plumbing system or installation of this product.
- Page 15 Notes: Please use this space to add any notes you or your installer may have regarding the plumbing system or installation of this product.
