Summary of Contents for Bobot NAVI908

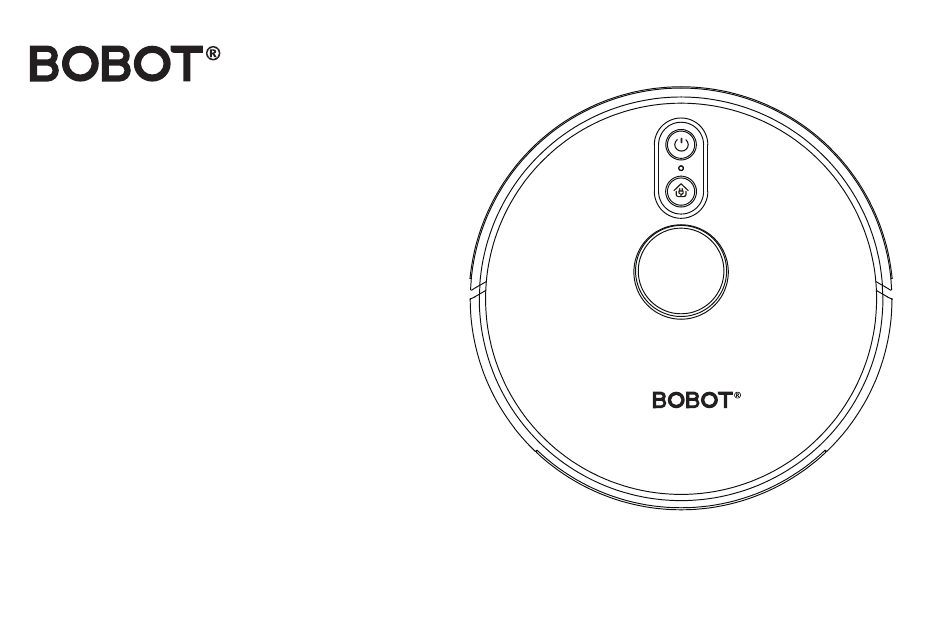

- Page 1 MAKE THE WORLD CLEAN BOBOT NAVI908 Robotic Vacuum Cleaner Instruction Manual please read the instructions carefully before using the product...
-
Page 2: Table Of Contents
CONTENTS BOBOT ROBOTICS INC. 1. Install Application And Log In ·····························································································1 2. APP Functions Introduction ································································································2 ················································································································4 3. Instructions For Use 4. Packing List ·······················································································································5 5. Machine Introduction ··········································································································6 6. Product Operation ············································································································8 7. Product Maintenance ············································································································12 8. Product Parameters ··············································································································15... -
Page 3: Install Application And Log
Install application and log in BOBOT ROBOTICS INC. 6. Adding device, robot vacuum voice prompts " The appliance 1.Scan the QR code, install the robotic vacuum application is starting to bind the user information", and then "Network is connected...", click "Done"... -
Page 4: App Functions Introduction
BOBOT ROBOTICS INC. APP Functions Introduction 1.Click "Smart" to start auto-cleaning (default setting), click 3.Click "Pose" to stop current task. Select the position on the again to pause it. Click "Chargego" for recharging. map you want to clean, click "Go Here" to start point cleaning, click "Back"... - Page 5 BOBOT ROBOTICS INC. APP Functions Introduction 5. Under mopping mode, click "Smart" to start auto-mopping, 2) Click "Manual" to manually control robot vacuum movement. back for recharging after mopping is finished. 3) Click "Looking for machines" to fine where the robot vacuum 6.
-
Page 6: Instructions For Use
Instructions for use BOBOT ROBOTICS INC. 01.The product is only for the cleaning of the floor in the home environment and do not use it outdoors (such as open balcony), non-ground (such as sofa, coffee table, etc.), commercial or industrial environment. -
Page 7: Packing List
Packing List BOBOT ROBOTICS INC. Machine Charging stand Extra Mop Side brush Cleaning brush High efficiency filter Power adapter Single suction port component Instruction Remote control... -
Page 8: Machine Introduction
Machine Introduction BOBOT ROBOTICS INC. Power key: Short press: Sweep/pause Long press: On/off the machine WiFi indication light: Slow flash: Waiting for connection Normally on: WiFi is connected Quick flash: WiFi connection failed Recharge key: Short press: recharge / pause... -
Page 9: Product Operation
Product Operation BOBOT ROBOTICS INC. Anti-dropping sensor Universal wheel Charging pole piece Laser radar Side brush Battery Cover Radar collision Rolling brush senso Rolling brush cover Exhaust pot Driving wheel UV light Infrared sensor Mop component Collision sensor Integrated Dust Bin &... - Page 10 Product Operation BOBOT ROBOTICS INC. Indoor cleaning Please clean up small objects, fragile articles, cables, curtain ropes, etc. scattered on the ground before use to prevent entangle- ment or damage of the property. The users with a duplex structure such as stairs etc. in their homes shall specially note that it is strictly forbidden to use the prod-...
- Page 11 Product Operation BOBOT ROBOTICS INC. Water Tank Installation Side Brush Installation Open the rubber cover on the water tank, fill in water Align the side brush with its bearing on the machine and then install back。 and press firmly to install the left and right brushes.
- Page 12 Product Operation BOBOT ROBOTICS INC. Power On Press power button for 3 seconds and voice prompts powered on. APP Install Connection network for the machine Before connecting the network, please make sure that the mobile phone and the machine are within the WiFi cover-age and as close as possible to the router.
- Page 13 Product Operation BOBOT ROBOTICS INC. Recharging Please make sure that no obstacles in the space of 1 m on both sides and 2m ahead of the charging stand. Charge the robot vacuum cleaner on the charging stand,...
- Page 14 Product Maintenance BOBOT ROBOTICS INC. Dust Bin Cleaning HEPA Filter Cleaning Pull out the dust bin,open the buckle and clean the dust. Open the buckle of HEPA bracket,take out HEPA and clean it.
-
Page 15: Product Maintenance
Product Maintenance BOBOT ROBOTICS INC. Cleaning Of Rolling Brush Side Brush Cleaning Lift the left and right brushes up and pull them out,Clean Turn the machine and press the buckle on the rolling brush cover from both ends to remove the rolling brush.Clean the the windings on the left and right brushes and windings on the rolling brush with the matching cleaning brush. - Page 16 Product Maintenance BOBOT ROBOTICS INC. Replace the battery 1. When replacing the battery, cut off the power and turn off the unit. 2. Remove the screw on the battery cover, pull out battery terminal and take out the lithium battery from the cabinet.
-
Page 17: Product Parameters
Product Parameters BOBOT ROBOTICS INC. Parameters of main machine Dimensions L315*W315*H92mm Battery 5000mAh,LG Lithium battery Host Weight 2.8±0.1KG WiFi connection Connection Method 14.4V Rated Voltage Rated Power Water Tank Capacity 230ml Dust Box Capacity 300ml Parameters of charging stand Dimensions L185*W140*H75mm 100-240V/0.6A,50/60Hz... - Page 18 Product Parameters BOBOT ROBOTICS INC. The name and content of hazardous substances in the product Hazardous substances Component Lead/pb Cr (VI) PBDE Plastic parts Metal parts Circuit board Battery Wire Adapter O indicates that the content of the hazardous substance in all homogeneous materials of the component is below the limit requirement specified in GB/T 26572.
-
Page 19: Trouble-Shooting
Trouble-shooting BOBOT ROBOTICS INC. Voice prompt Cause Trouble-shooting The cleaning is triggered during Re-install the dust box or pause the cleaning task of the The dust box is missing. removing of the dust box. machine. AH OH, the radar on the top seems to... - Page 20 Trouble-shooting BOBOT ROBOTICS INC. Voice prompt Cause Trouble-shooting AH OH, the side brush seems to be The side brush is stuck or entangled. Please check if the side brush is entangled and clean it. stucked. Pls help me. The main battery is too low to return I need battery charging, my master.
-
Page 21: Faq
BOBOT ROBOTICS INC. Failure Trouble-shooting The battery is low, please charge it before use. The ambient temperature is over low or over high, It cannot be turned on. please use it in the range of 0°C-40°C. The charging stand is not powered, please make sure the power is connected successfully. Poor contact It cannot be charged. -
Page 22: Safety Information
Safety Information BOBOT ROBOTICS INC. Safety information Battery and charging 01.Do not use any battery, charging stand or charger from third-party. 02.Please make sure that the voltage used is correct. 03.Do not disassemble, repair or modify the battery or the charging stand. -
Page 23: As Service And Warranty
If product quality problems occurs from the date of purchase,we can provide warranty services according to your local distributors. BOBOT shall not be liable for costs,damages or repairs incurred as a result of: Non-Warranty Policy for NAVI Series: 1. When the validity period of the warranty has expired;... -
Page 24: User Information
BOBOT ROBOTICS INC. User Information User information (please fill in real information, BOBOT promises that user information is only used for after-sales service) Name_____________ Telephone _____________ E-mail_____________ Postal code_____________ Contact Address__________________________ Product Information Name_____________Model______________ Color__________________Packing SN No._______________ Service needed Oreturn...
