Titan EyeX Smart
eyewear
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EyeX Smart eyewear and is the answer not in the manual?

Questions and answers

Anirudh Yadav
April 11, 2025

pairing rejected by titan eyex _AAEO

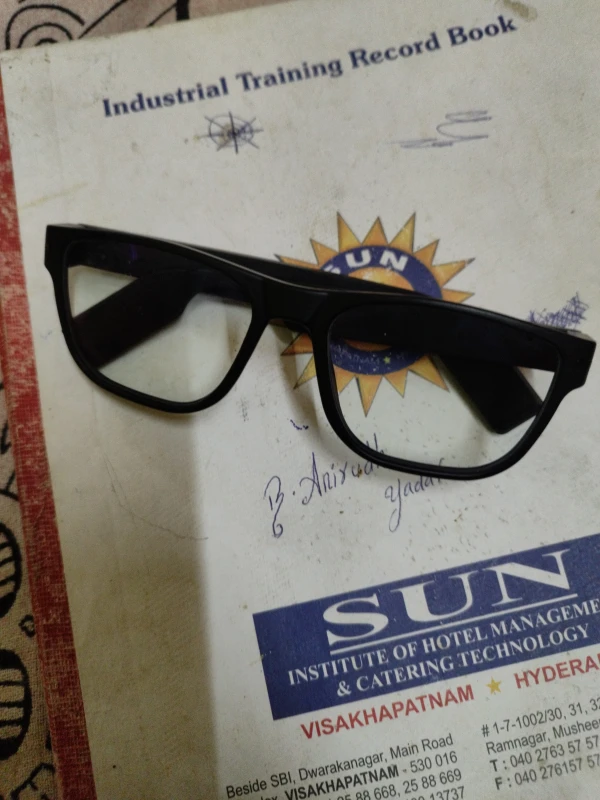

User image 67f8855896800
0
1 comments:
Mr. Anderson
April 11, 2025

To resolve pairing issues with Titan EyeX Smart eyewear:

1. On iPhone, check if the connected EyeX device in the Bluetooth list has an 'i' icon next to it.
- If the 'i' is missing, it means the Bluetooth connection is bad.
- Disconnect and reconnect by unpairing or doing a factory reset.

2. If you see two EyeX connections (one with 'i' and one without), this is normal and not a problem.

3. After successful pairing, the master temple LED will blink green, and an audio message will confirm the connection.

4. Ensure the frames are in an upright position during setup. If upside down, they will power off and not work.

This answer is automatically generated

0

Summary of Contents for Titan EyeX Smart eyewear

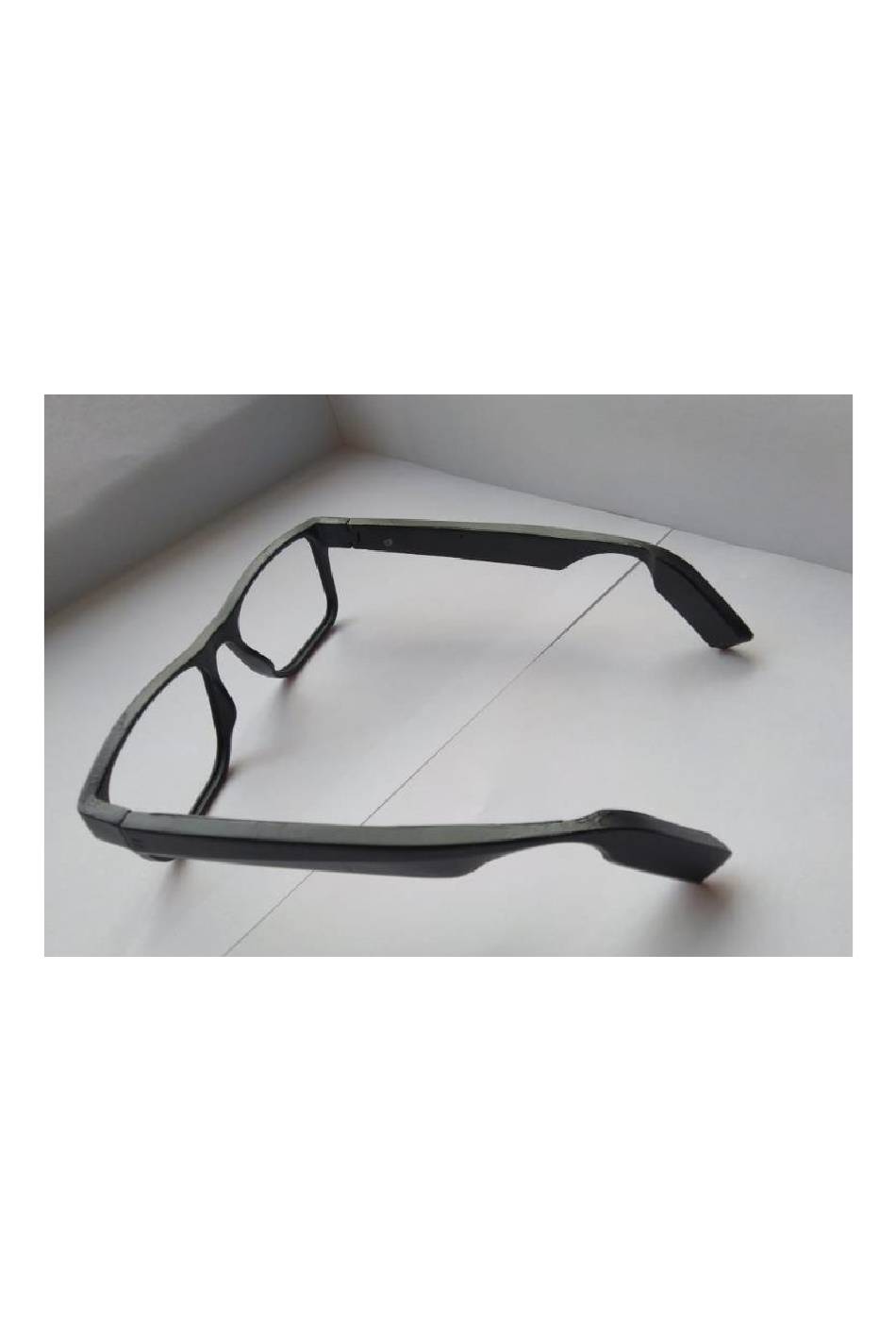

  • Page 1 Titan EyeX Smart eyewear User Guide...

  • Page 2: Table Of Contents

    P a g e TABLE OF CONTENTS Getting Started ………………………………… • Warning …………………………………………....• Charging ……………………………………………………. • Touch Input ………………………………………………… • Power on the Device ……………………………………… • Install the Phone App. ……………………………………. • Connect your Glasses to your Phone …………………. •...
  • Page 3 P a g e TABLE OF CONTENTS Device Reset ……………………………………… • Pairing to Phone or Switching Phones …………………. • Peer to Master connection ………………………………… • Eyecare menu………………………………………………… Touch Operation summary……………………… Specifications …………………………………….. Warranty & Support ……………………………… Regulatory & Notices ……………………………. Note that this manual covers the new swipe-touch based functions and manual connection starting with software version 2.1.0.

  • Page 4: Getting Started

    P a g e Getting Started Warning: The device plastics are fully sealed for waterproofing. Any attempt to tamper will void warranty. Touch Area Right Temple Right is Master Front Rim Speaker Directional Audio Touch Area Left Temple Touch Start Touch End Left is Peer...
  • Page 5 P a g e Getting Started Charging: Charge the unit before first time use. Full charge takes about two hours. Charger cable with magnetic pogo pin is used for charging. The charger comes with Y-Split cable with two connectors having left & right indication. Connect the connectors to the temples (Right, Left).

  • Page 6: Touch Input

    P a g e Getting Started The right side temple is the master device that connects to the phone and has a built-in mic. The left side temple is the peer device that connects to master and gets audio from the master. Touch Input: The touch start and end areas are shown below.

  • Page 7: Power On The Device

    P a g e Getting Started Power on the device Power On: Swipe front on the touch area of the right temple and the left temple. If prompted to swipe again, please do so. Note that if the device is powering on from upside down mode, it will power on with just a touch also The temples will boot up and announce powering on.
  • Page 8 P a g e Power-Off Positions Glasses placed upside down Glasses folding and placed upside down In these two upside-down positions, the glasses will power off after 10 seconds. To power on, you pick up the glasses and touch the touch area on both temples. Please note that the above description is for default off state of “Auto power on (Beta)”...
  • Page 9 • Make sure that your phone’s Bluetooth® is turned on. • Go to the phone’s Bluetooth menu and pair to Titan EyeX-XXXX from the available device list. If you see two devices with same EyeX names, please connect to device with headset icon.
  • Page 10 P a g e • In iPhone, please make sure the connected EyeX device in Bluetooth list has ‘i’ next to it. If this is missing, it has bad Bluetooth connection. You need to disconnect and reconnect again. This can be done by unpairing or by doing factory reset.

  • Page 11: Install The Phone App

    Notification reading, Find glasses, Read time and weather etc. • Note: The app requires an IOS version >10.2 or an Android version >7.0. • On your phone, go to App Store (IOS) or Play Store (Android) to download and install the Titan EyeX app.

  • Page 12: Configure Your Glasses Using The Phone App

    | 11 Getting Started Configure glasses using the phone APP. • Start the Titan EyeX app on the phone, then follow the on-screen instructions to connect app with Glasses. • Accept requested permissions • When given option, switch-on accessibility for Titan EyeX and press back button to go back to app.

  • Page 13: Device Usage

    P a g e | 12 Device Usage Checking battery level and connection status Swipe forward and swipe backward within one second on either temple. The audio message will play the level of the battery and connection status. Yellow LED will blink 1-4 times indicating the battery level of the Glasses.

  • Page 14: Functions Supported By Default Without The App

    P a g e | 13 Device Usage Functions are supported by default without the App. Phone Call - To Answer the call: Swipe forward on the right temple. - To Reject the call: Swipe backward on the right temple - To End the call: Swipe backward on the right temple.

  • Page 15: Voice Assistant (Ok Google Or Siri)

    P a g e | 14 Voice Assistant (OK Google or Siri) - Swipe forward twice (within a 1-second gap) on the right temple. - Start speaking after the beep. - Response from the voice assistant will be heard on the speakers.

  • Page 16: Alexa

    P a g e | 15 Device Usage Alexa The device supports Alexa through the connected phone in Android. Please make sure to install the Amazon Alexa companion app and make sure user settings are configured. Instructions to configure and add device in Alexa - Download Amazon Alexa app.

  • Page 17: App Functionality

    P a g e | 16 App Functionality App Interface Main Screen...

  • Page 18: Functions Provided With The App

    P a g e | 17 App Functionality Functions provided with the App. • Display fitness data: Steps, Distance, Calories and Active time. • Find Glasses: Glasses will beep when the user selects the “Find Glasses” button on the App. •...

  • Page 19: Additional Features With App

    P a g e | 18 App Functionality Additional Features with APP App Main Screen & Fitness Screens The fitness main screen displays current day’s fitness data. It displays target wheel with steps walked and progress to target. The target steps is set to 5000 steps as default.

  • Page 20: Locate Glasses

    P a g e | 19 App Functionality Find My Device Select the “Features” tab in the main screen and select “Find My Device”. The Glasses will beep for 10 seconds. Clicking this button again on app or swiping on left temple will stop the beep on the glasses Step 3 Step 1...

  • Page 21: Play Notifications

    P a g e | 20 based on this location. If Glasses is not connected to the phone, the last location is displayed on App. Note: This feature requires location Permission to be enabled on the phone. App Functionality Play Notification: Note: This feature is available only in Android.

  • Page 22: Calendar Alert

    P a g e | 21 Note: Selecting silent mode on home screen will disable all Notifications. Calendar Alert: The app will send list of calendar (Google calendar or iPhone calendar) events to Glasses. Glasses plays a beep tone at the time of calendar event. If user swipes after the beep, the calendar event details are played.
  • Page 23 P a g e | 22 App Functionality Custom-touch1 (Time, Weather & Camera snap) Swipe forward on left temple will play current time. Second Swipe forward after playing time will play current weather. The weather units (C or F) can be configured from settings screen.
  • Page 24 P a g e | 23 Custom touch2 (Find phone) Swipe backward two times (within a gap of 1 second) on the left temple will activate the Find Phone feature. The phone will beep for 6 seconds. The beep can be stopped by Swipe backward once more.

  • Page 25: Presentation Control

    P a g e | 24 App Functionality Presentation control The presentation on the user’s computer can be controlled using the swipe function on the glasses. This function requires the user’s phone and computer to be on the same Wi-Fi network and the user has installed applicable software on his computer.

  • Page 26: Ppt Control Software On Windows Computer

    P a g e | 25 App Functionality PPT control software on windows computer - Download and install the Desktop/computer software from the below link or from the PPT companion APP pop up https://www.fastrack.in/collections/reflex-wav - Both phone and Computer must have the same network connection.

  • Page 27: Glasses Settings

    P a g e | 26 App Functionality Glasses Settings The settings screen is used to configure user preferences such as target steps, standard-metric units, notification preferences etc. Set Goals/Units • In set goals user can set the Daily target steps and Calorie burn target.

  • Page 28: Notifications

    P a g e | 27 App Functionality Distance format: Display distance on App either in KM or Miles. The default is KM. Google Fit or Apple health: Google fit or Apple health integration on or off. Notifications Notifications can be enabled / disabled for email, Facebook, twitter, SMS, WhatsApp and other categories.
  • Page 29 P a g e | 28 Quit App: Please note that the app will be running in the background even if it is swiped out in Android. To fully quit the app, use the Quit App option in Android app. In iPhone app, swiping app out will fully quit the app Advanced settings: EyeX auto Power on (Beta): If enabled, glasses will...
  • Page 30 P a g e | 29 The Glasses will alert the user with “Idle for XXX time” when the user does not walk for this amount of time during day time (8 am to8 pm). Select CVC: In this option you can select two settings for Microphone.

  • Page 31: Quit App

    P a g e | 30 Device Reconnection Paring to multiple phones or switching phones Device supports phone/computer connections. Disconnect EyeX from the previously connected phone/computer Bluetooth menu. Then EyeX is ready to pair with another phone or computer with blue blinking on the right temple.
  • Page 32 P a g e | 31 Go to phone Bluetooth menu and unpair EyeX device Swipe backward and forward (within 1 second gap) on right temple. Red LED blinks in both the temples. Then swipe backward again on right temple to confirm. Once factory reset is complete, the blue LED will flash stating the Glasses are ready to pair (The factory reset can take up to 10 seconds).
  • Page 33 P a g e | 32 App Functionality Eyecare Menu: • In home screen select the Eyecare menu. • These are set of eye tests, where user can test their eye’s vision. • Contact lens users set notifications (monthly, quarterly, half early, yearly).
  • Page 34 P a g e | 33 Swipe Touch Operations Summary FEATURES OPERATION Power On (master and peer) Swipe forward or backward on both temples. Touch will power on if coming from upside down position Discoverable If no phone/computer is connected, device will be in discoverable mode with blue light blinking.
  • Page 35 P a g e | 34 Specifications Bluetooth: 5.0 Stereo Dual Mode Classic and BLE Audio: Stereo TWS with high resolution audio. Audio features: CVC noise and echo cancellation with dynamic volume control Micro: Integrated SOC with built-in Bluetooth Accel: 3 axis Accelerometer with high accuracy pedometer Touch: Capacitive sliding touch...
  • Page 36 P a g e | 35 Warranty & Support...
  • Page 37 P a g e | 36 Maximum volume in Android and iPhone The EyeX operates in similar maximum volume on iPhone and Android. Please make sure the below settings are default to make sure you get maximum volume from the phone. In iPhone, make sure that Reduce Loud Sounds setting is not enabled.
  • Page 38 P a g e | 37 In Android, make sure Dolby Atmos (or any other audio enhancer settings) is enabled...
