AX-ET-6
Electronic Thermostat – Six stage
Features
● Setpoint range -10
°
C to +110
● Adjustable differential per stage
● LCD display of temperature, setpoint etc
● Setback input
Product specifications
Power Supply
Inputs
LCD Display
Temperature Range
Stage Selection
Setpoint
Offset
Differential
Setback Range
On/Off delay Time
Output Contacts
Terminals
Dimensions & Weight
Ambient temperature range
Country of origin
Order codes
AX-ET-6-24
Six Stage Electronic Thermostat - 24Vac/dc
AX-ET-6-230
Six Stage Electronic Thermostat - 230Vac
Issue 1.1 (1/05/12)
°
C
AX-ET-6-24
24Vac 280mA or 24Vdc 110mA ±15%
AX-ET-6-230
230Vac ±15%
Sensor, 10K3A1 ( See Axio temperature sensor range )
Remote Setpoint, 1-11kΩ ( For ± 4
Setback, volt free timer input (Close contact to activate setback)
2 lines by 8 characters
-20
°
C to +120
°
C
CCCCCC, CCCCCH, CCCCHH, CCCHHH, CCHHHH, CHHHHH, HHHHHH
(C=cooling, H=heating)
°
°
-10
C to +110
C
0 to 50
°
C
0 to 12
°
C
°
0 to 30
C
1 to 250 seconds
6 SPNO volt free relays, rated at 10A, 250Vac, resistive load
Rising clamp for 0.5-2.5mm
AX-ET-6-24
103(W) x 82(H) x 48(D) mm / 125 gms
AX-ET-6-230 160(W) x 82(H) x 55(D) mm / 365 gms
0 to 50
°
C
United Kingdom
Unit 21, Highview, Bordon,Hampshire. GU35 0AX.
Tel: +44(0)1420 487788 Fax: +44(0)1420 487799
Email: sales@annicom.com
© Copyright Annicom 2012. All rights reserved.
Product overview

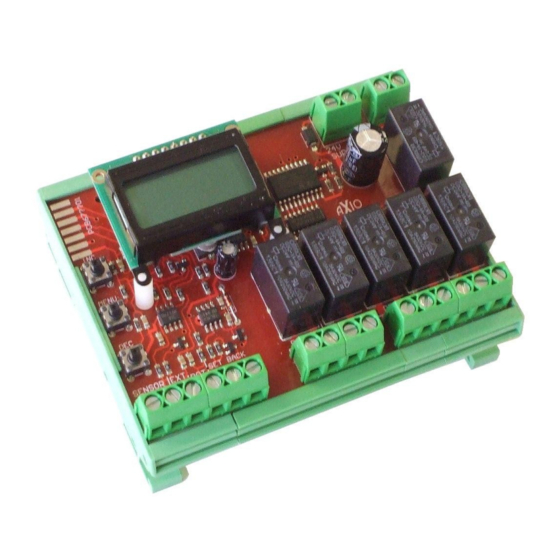

The Axio AX-ET-6 is a six stage electronic thermostat with a two
line LCD display to simplify setting up. The unit controls
temperature between -10
and cooling stages. The set point can be adjusted locally using
push buttons or remotely with a 1-11kΩ potentiometer. A setback
input is provided for use with an external switch. The minimum
and maximum temperatures values are stored for display via the
menu. The AX-ET-6 is provided in a DIN rail carrier and is
available as 24Vac/dc or 230Vac powered versions.
● Adjustable stage on/off delay time
● 24Vac/dc or 230Vac versions
● DIN rail carrier as standard
● High quality rising clamp terminals
°
C or ±20
°
C )
cable
2
Annicom Ltd
www.annicom.com
°
C to +110
°
C using configurable heating
Order online at:
www.annicom.com
Email orders and enquiries to:
sales@annicom.com
1 of 4
1 of 4
