Summary of Contents for Aleko PYRAMID SQUARE

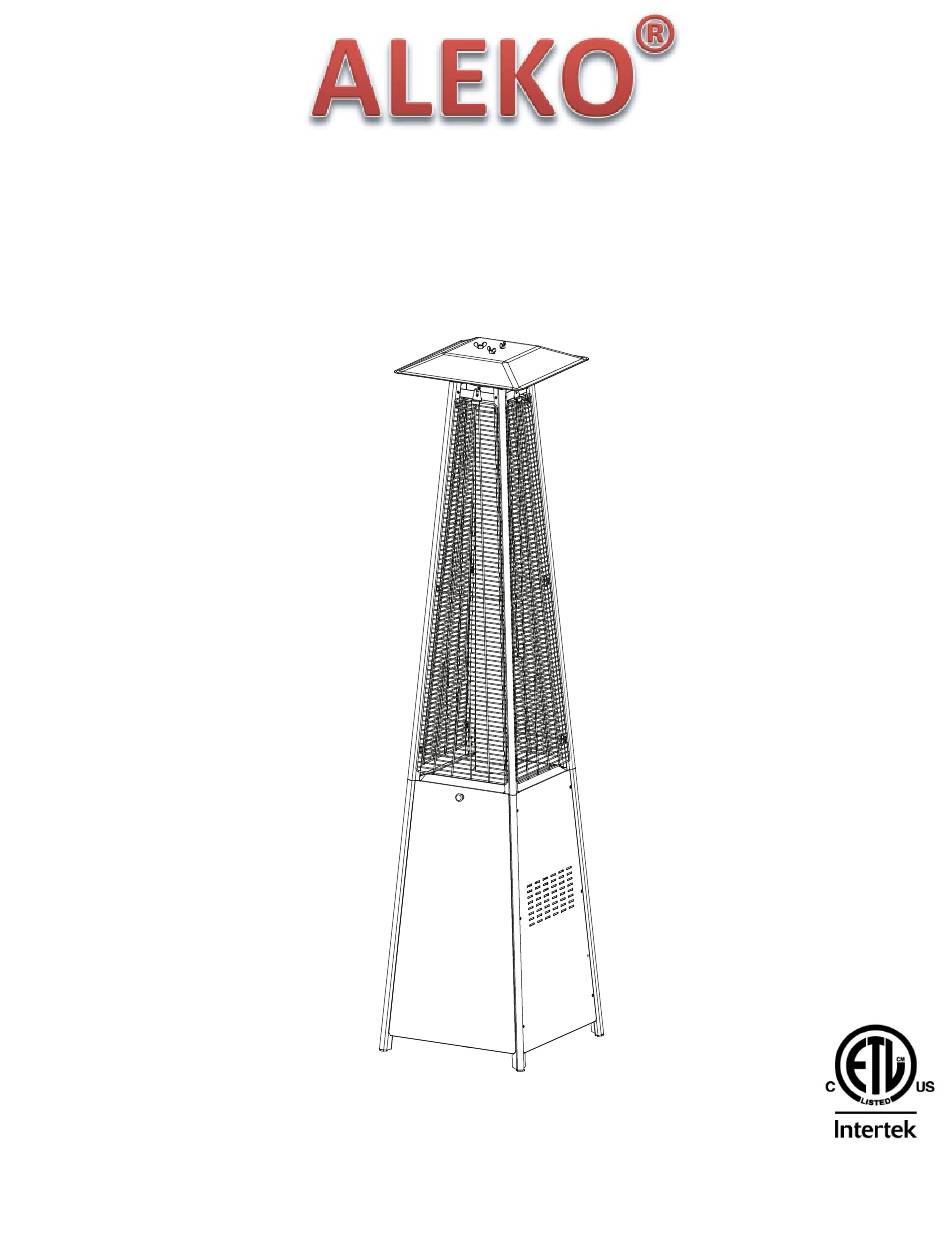

  • Page 1 PATIO HEATER MODEL# PYRAMID SQUARE & Owner's Manual 87IN He 5016039 ANSI 83.26-2014 CSA 2.37-2014 Keep this manual for f...
  • Page 3: Safety Information

    SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. This manual contains important information about the assembly, operation and maintenance of this patio heater. General safety information is presented in these first few pages and is also located throughout the manual. Keep this manual for future reference and to educate new users of this product.
  • Page 4: Service Safety

    DANGER DANGER • EXPLOSION - FIRE HAZARD • CARBON MONOXIDE HAZARD • Never store propane near high heat, open • This heater is a combustion appliance. flames, direct sunlight, other ignition sources All combustion appliances produce carbon or where temperatures exceed 120 degrees monoxide (CO) during the combustion F (49°C).
  • Page 5 Assembly Instruction & User's Manual WARNING WARNING ITEM NO. 13684811 • Alert children and adults to the hazards • This product is fueled by propane gas. of high surface temperatures. Stay away Propane gas is invisible, odorless and 87IN Height LP Patio Heater from these surfaces to avoid burning skin flammable.
  • Page 6: Parts And Specifications

    Parts List PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents above. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts. Estimated Assembly Time: 60 minutes Tools Required for Assembly (not included): Phillips screwdriver w/ medium blade.
  • Page 7: Package Contents

    Parts List PACKAGE CONTENTS PART DESCRIPTION QUANTITY Reflector Reflector Flame Screen Flame Screen Glass Tube Upper Support Protective Guard Black Silicone Ring Glass Tube Side Panel Front Panel Upper Support Gas Hose Control Box Assy Lower Support Protective Guard Block Belt Wheel Assembly Black Silicone Ring Bottom Plate...
  • Page 8 Assembly Instructions 1. Assemble the wheel assembly to the bottom plate. Fix the wheel assembly to the bottom plate using 4pcs bolt M6X12 and 4pcs flange nut M6. Hardware Used Bolt M6 x12 Bolt Flange Nut Wrench 2. Unscrew the switch button, insert AA alkaline battery, tighten the switch button.
  • Page 9 Assembly Instructions 3. Assemble the middle support. Insert the 4pcs upper support to the lower support. Secure them with 8pcs screw 3/16". Hardware Used 3/16" Screw Philips screwdriver 4 4. Assebmle the flame screen to the upper support. Secure the flame screen to the upper support using 8pcs screw 3/16”.
  • Page 10 Assembly Instructions 5. Assemble the reflector onto the flame 5 screen. Screw the 3pcs stud on the flame screen, put 3 washers onto the top of stud, then put the reflector onto the stud, secure them with 3 washers and 3 wing nuts. Hardware Used Wing nut Washer...
  • Page 11 Assembly Instructions 7. Assembly the protective guard. Hang the hooks of the protective guard onto the holes in supports. Secure the protective guards with fixing brackets with 4pcs 3/16" screws. Hardware Used 3/16" Screw Philips screwdriver Fixing Bracket 8. Install the knob to M4X6 screw. Hang the chain to the hole on the control box assy and put the pothook of front panel to the holes of bottom plate.
  • Page 12 Assembly Instructions 9. Connect the gas hose and regulator after that connect the regulator to the gas cylinder. WARNING Ensure the hose does not contact any high temperature surfaces, or it may melt and leak causing a fire. After the cylinder is placed inside the heater, secure the cylinder with block belt tightly.
  • Page 13: Cleaning And Care

    Operating & Storage TO TURN ON THE HEATER 1. Turn on the valve on the gas supply cylinder completely. 2. Press and turn the variable control knob to PILOT position (counter-clockwise 90º). 3. Press down the variable control knob and hold for 30 seconds. While holding down the variable control knob, press the igniter button several times until the pilot flame lights.
  • Page 14: Troubleshooting

    Troubleshooting & Warranty TROUBLESHOOTING PROBLEM PROBABLE CAUSE CORRECTIVE ACTION Gas valve may be OFF Turn the gas valve ON Pilot will not light Tank fuel empty Refill LPG tank Note: heater operates at reduced Opening blocked Clean or replace opening efficiency below 40º...
