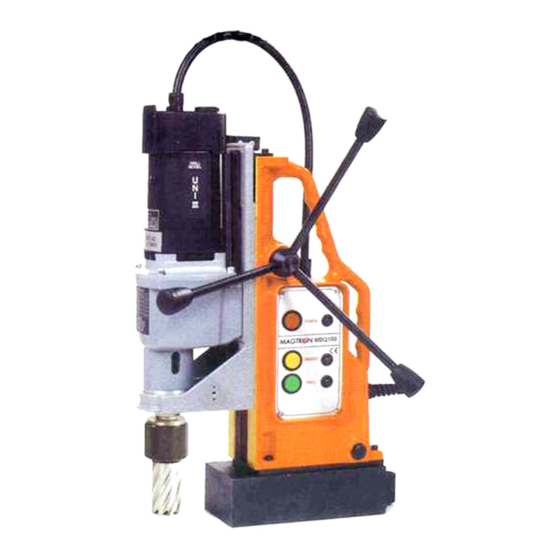

MAGTRON MBQ100 Assembly & Parts List

MBQ100 Assembly & Parts List
14
32
18
65
QUICK RELEASE ARBOR ASSEMBLY
INLUDES ITEMS 33 TO 41
CONTROL PANEL ASSEMBLY
INCLUDES ITEMS 47 TO 57
3 67 7 4
8 31
11
12
2
27
5 6 43 46
ITEM NO PART NO
1 M0005F MT50 BODY (ORANGE)
2 M0033 MAGNET BASE (LARGE)
3 20355 EIBENSTOCK CRADLE
4 M0103 BRASS RAIL (MT50)
5 M0442 G.F.S. (MT50)
6 M0813 TOP PLATE (MAGTRON DOVETAIL)
7 M0833 RACK (MT50)
8 M0042 PINION - MAGTRON (LARGE)
9 M0071 PINION END CAP (SHALLOW)
10 M0081 BUSH (PINION)
11 20346 HANDLE (12mm LARGE)
12 10082 HANDLE KNOB (12mm KNOCK ON)
13 M0224 WARNING PLATE (MT50)
14 M0443 CONDUIT (MAGTAP M13)
42
15 10231 M16 STRAIN RELIEF CABLE GLAND
16 40026 M16 PUSH FIT GLAND
15
17 10237-1 CABLE YELLOW (110V)
18 EIB03 EIBENSTOCK UNI111 DRILL - 110V
44
19 STRAP01 POLYESTER WEBBING SAFETY STRAP
20 KEY01 ALLEN KEY 2.5MM
66
21 KEY03 ALLEN KEY 4MM
22 KEY04 ALLEN KEY 5MM
45
23 DRIF02 DRIFT (No.3 M/TAPER)
24 CASE14 CARRYING CASE UNIBOR - PLASTIC
58
25 BOX01 BOX (UNIBOR SLEEVE)
26 VISO10 SAFETY GUARD ( UNI 3 )
59
27 M0242N LARGE MAGTRON SWITCH PLATE NEW
9 28 10093 M6 X 35 GUARD THUMB SCREW
29 10094 M6 GUARD SPACER
10 30 10089 LARGE 2 LEG GUARD GUIDE
31 MM1-17 PCB SUPPORT PLATE
60 32 40025 PG9 PUSH FIT GLAND
33 ARBQR03-A EIBENSTOCK Q/R UNI3 ARBOR BODY
13
34 10205A ARBOR EJECTION PLUG (M/TAPER)
35 SPRI01 ARBOR SPRING (M/TAPER)
36 ARBQR-02
37 ARBQR-03
38 ARBQR-04 Q/RELEASE COLLAR SPRING
39 ARBQR-05
40 ARBQR-06 20MM O/D X 4MM NITRILE O RING
41 CCP-38V 38OD V INTERNAL CIRCLIP
1
42 30046 LARGE OIL CUP ASSEMBLY
43 10076C OILFEED BRACKET
68
44 50015C 1/8" BSP - 6MM PUSH FIT CONNEC
45 BD029 6mm OIL PIPE (OIL FEED ASSY)
14
46 10076 OIL CUP RETAINING CLIP
47 MM1-1 MM1 MAGNET BUTTON - YELLOW
17
48 MM1-2 MM1 MOTOR BUTTON - GREEN
49 MM1-10 MM1 POWER BUTTON - RED
50 MM1-3 MM1 L.E.D. GROMMET
51 MM1-4 MM1 LED BOARD - C/W LEDs
52 MM1-5 MM1 REPLACEMENT PCB
53 MM1-6 MM1 3 PIN PLUG
54 MM1-7 MM1 4 PIN PLUG
55 MM1-11 MM1 HEAT CONDUCTOR
56 MM1-16 STAND OFF CLIP FOR NEW PANEL
57 MM1-13 NEW PANEL INSULATING BUSH
58 M5-NUT M5 NUT
59 SC620CAP M6 x 20 CAP SCREW
60 SC3TAP M3 SELF TAPPING SCREW
DESCRIPTION QTY
1
1
1
2
1
1
1
1
1
2
3
3
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
1
1
1
1
1
QUICK RELEASE ARBOR COLLAR 1
QUICK REL ARBOR LOCK SHOE 1
1
QUICK REL ARBOR TOR SPRING 2
1
1
1
1
2
1
1
1
1
1
3
1
1
1
1
3
3
2
5
9
8
