TAMA12 MANUAL
User Manual
Tama 12
Thank you and congratulations for your purchase of
the Hexdevices Tama12
move. You are now the owner of a 12db pure analog
lowpass filter, with crazy resonance harmonics.
The brain inside the shell
This filter is based on transconductance amplifiers and it's a
pure analog second order lowpass filter.

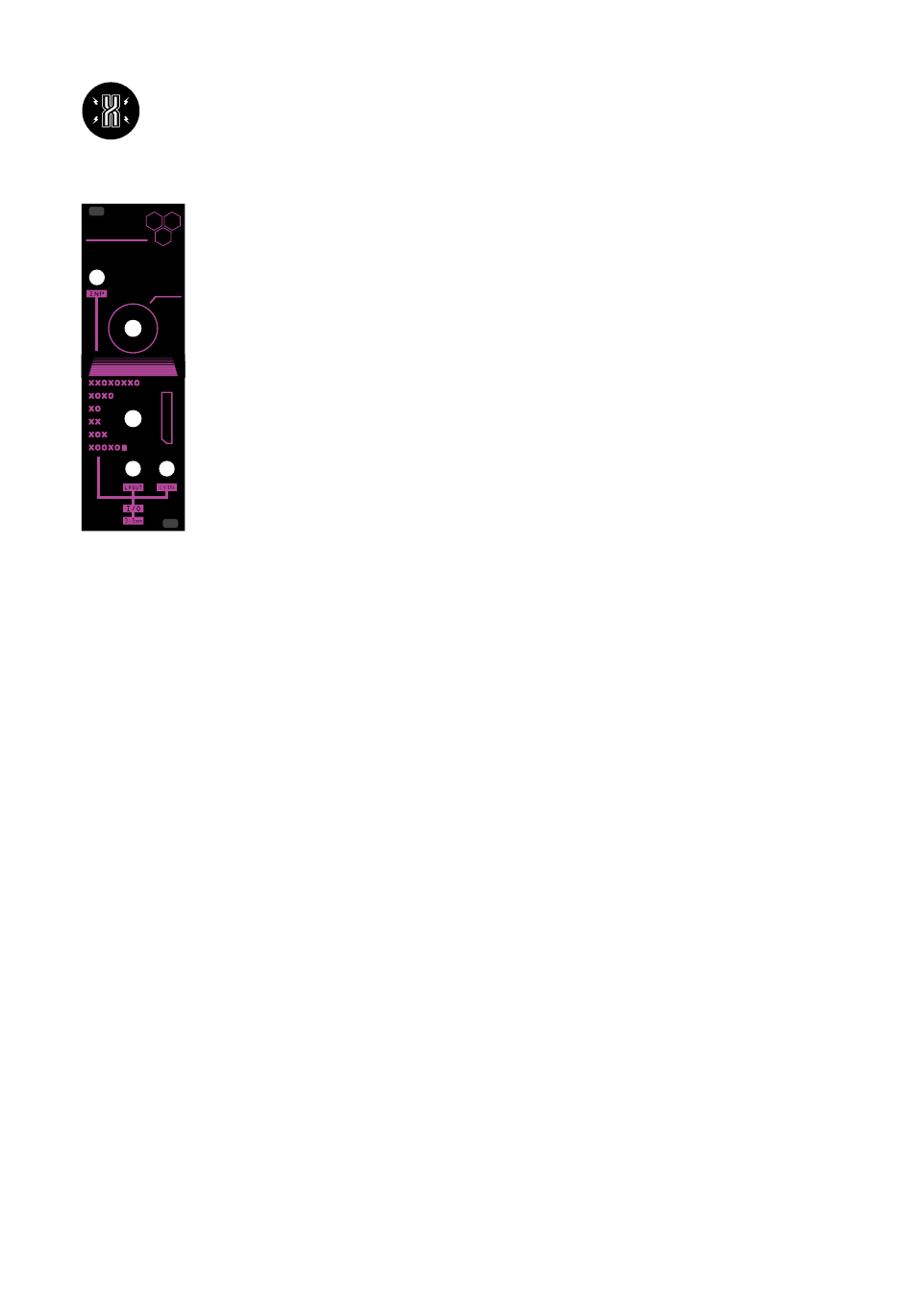

How to use (Check modular pic.)
A. INP: Stands for the line input of the module. With the use
of a 3.5mm TS mono jack, you can plug any of your audio
sources into the module. Input impedance is 200kΩ.
B. FRQNC: The frqnc is the cutoff frequency knob.
By doing changes to this knob you actually change the
cutoff frequency.
C. RSNC: This knob sets the resonance level of your sound.
As you increase that, you increase the sound level of your
cutoff frequency. And by turn it to maximum you force the
filter to self- oscillate.
D. LPOUT: This is the line out of your lowpass filter. With the
use of a 3.5mm TS mono jack you can take your out-pro-
cessed signal.
TM
Module! That was a smart
TM
