Summary of Contents for MIDA MIDA-EVSE-PA16S

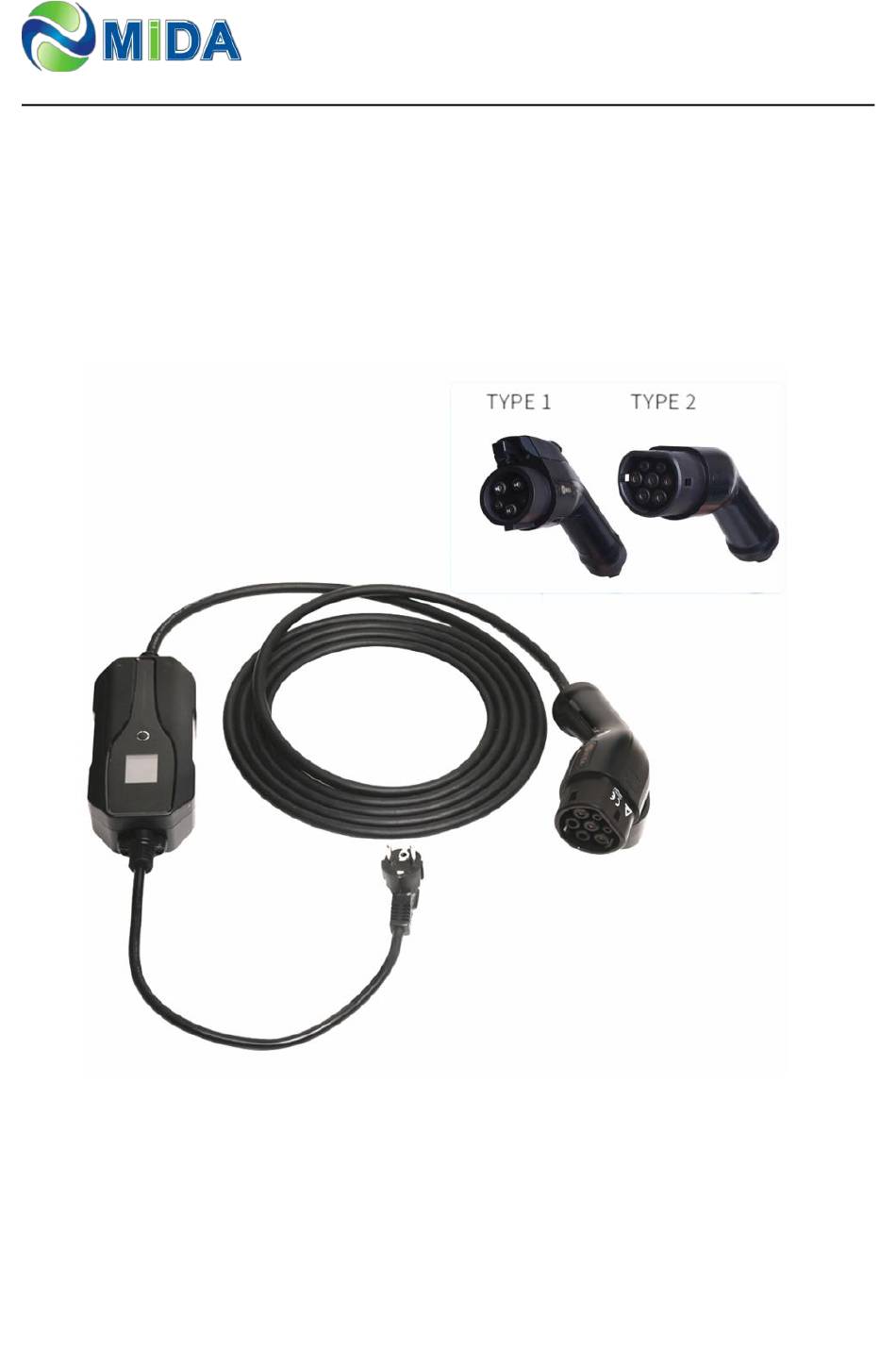

- Page 1 Shanghai Mida EV Power Co., Ltd -----Charge for Life, Change for Future----- Portable EV Charger Level Product Manual Please read all instructions before using, operating or maintaining. www.midapower.com...
-
Page 2: Table Of Contents
Shanghai Mida EV Power Co., Ltd -----Charge for Life, Change for Future----- Manual PRODUCT DESCRIPTION............3 APPEARANCE..............3 SPECIFICATION..............4 LED DISPLAY..............5 HOW TO CURRENT SETTING ...........6 OPEARATING INSTRUCTION..........7 CONNECTING How to start charging........................7 How to stop charging..........7 SECURITY STATEMENT..........7 WARRANTY...............8... -
Page 3: Product Description
PRODUCT DESCRIPTION Portable EV Charging Cable is so convenient, portable, and plug-and-play. This product is independently researched and accordance with the latest national standards. They can apply to all the EV cars. It has good performance when charging. There are more electric protections and direct human-computer interaction interface. -
Page 4: Specification
SPECIFICATION Item Mode 2 EV Charger Cable Model MIDA-EVSE-PA16S , MIDA-EVSE-PE16S Install Portable, plug and Play Output Current 6A ,8A ,10A ,13A ,16A Max. (UK Max 13A) Rated power 3.6kW Max Input Voltage AC 110V~250V 50Hz/60Hz Waterproof Degree IP67 1.Short circuit protection 2.Over and under frequency protection... -
Page 5: Led Display
LED DISPLAY LED Display Status Condition Green(One) Green (Two) Green (Three) Fault (Red) Light on Lights Out Lights Out Lights Out Waiting Connection Charging Mode Racing light Racing light Racing light Lights Out Charging Completed Light On Racing light Light Off Light Off Fault Mode Light Off... -
Page 6: How To Current Setting
HOW TO CURRENT SETTING Use the current switch button to select the maximum charging current. Select the charging current before inserting the charging plug(car side). www.midapower.com... -
Page 7: Opearating Instruction
OPEARATING INSTRUCTION How to start charging Step 1. Take out the charger and firmly insert the plug into socket-outlet. Step 2. Pull cap ,completely plug the vehicle connector into vehicle inlet. Step 3. The device start charging automatically while the READY/CHARGE, POWER indicators are all green. -
Page 8: Warranty
WARRANTY MIDA Group company, ensure the production of portable charging line are through strict quality inspection, within one year from the date of purchase under the correct use of caused by product quality problems, the company will give users the quality maintenance. -
Page 9: Caution
CAUTION a. Please check if the device is intact and items are accordance with the packing list when you receive the package. If there are any abnormalities, please contact the sales timely or reject the goods. b. Power-supply side input cable should be at least 3x6mm ² It is suggested that the power distribution is done by the professionals. - Page 10 Shanghai Mida EV Power Co., Ltd -----Charge for Life, Change for Future----- Shanghai Mida EV Power Co., Ltd. Attn: Mr Michael Hu Tel: + 86-21-60278206 ,Phone: +86-18221956895 Email: sales@midapower.com Website: www.midapower.com , www.midaevse.com Address: NO.377 of Chengpu Road,Nanqiao Town,Fengxian District Shanghai,China.
