U s e r M a n u a l

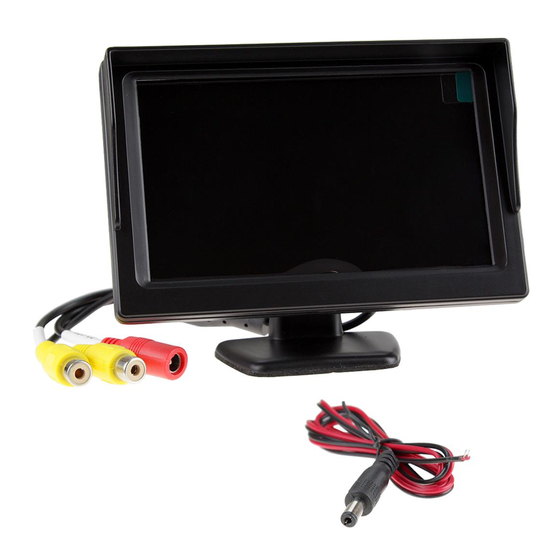

RVM5-CVBS
5" Digital TFT LCD Colour Monitor
PRODUCT FEATURES:
5" TFT LCD colour monitor with AV signal auto detect switch-on, reverse signal
sensing switch-on, integrated stand and 2x video inputs.
• Display Format: 16:9
• TV System: PAL/NTSC (auto switch)
• Pixels: 1200 x 680
• Contrast: 350:1
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +85°C
• Operating Voltage: 9V-16V DC (Negative Ground)
• Power Supply: 12V DC
DISCLAIMER:
Prior to Installation
Read the manual prior to installation. Technical knowledge is necessary for installation.
Please ensure you use the correct tools to avoid damage to the vehicle or product.
Connects2 can not be held responsible for the installation of this product.
Technical Support
Connects2 want to provide a fast and suitable resolution should you encounter any
technical issues. With this in mind, when contacting Connects2, try to provide as
much Information as possible. This will speed up the process and help us to help you.
Please use our dedicated online technical support centre: support.connects2.com
Advertisement
Table of Contents
Summary of Contents for Connects2 Vision RVM5-CVBS
- Page 1 Connects2 can not be held responsible for the installation of this product. Technical Support Connects2 want to provide a fast and suitable resolution should you encounter any technical issues. With this in mind, when contacting Connects2, try to provide as much Information as possible.
- Page 2 3. When the reversing camera is triggered, the screen automatically switches to AV2. When no signal is received from both front and rear cameras, the monitor will go into stand-by mode. Subscribe to our YouTube Channel for installation guides and tips... www.youtube.com/connects2 www.connects2.com...
