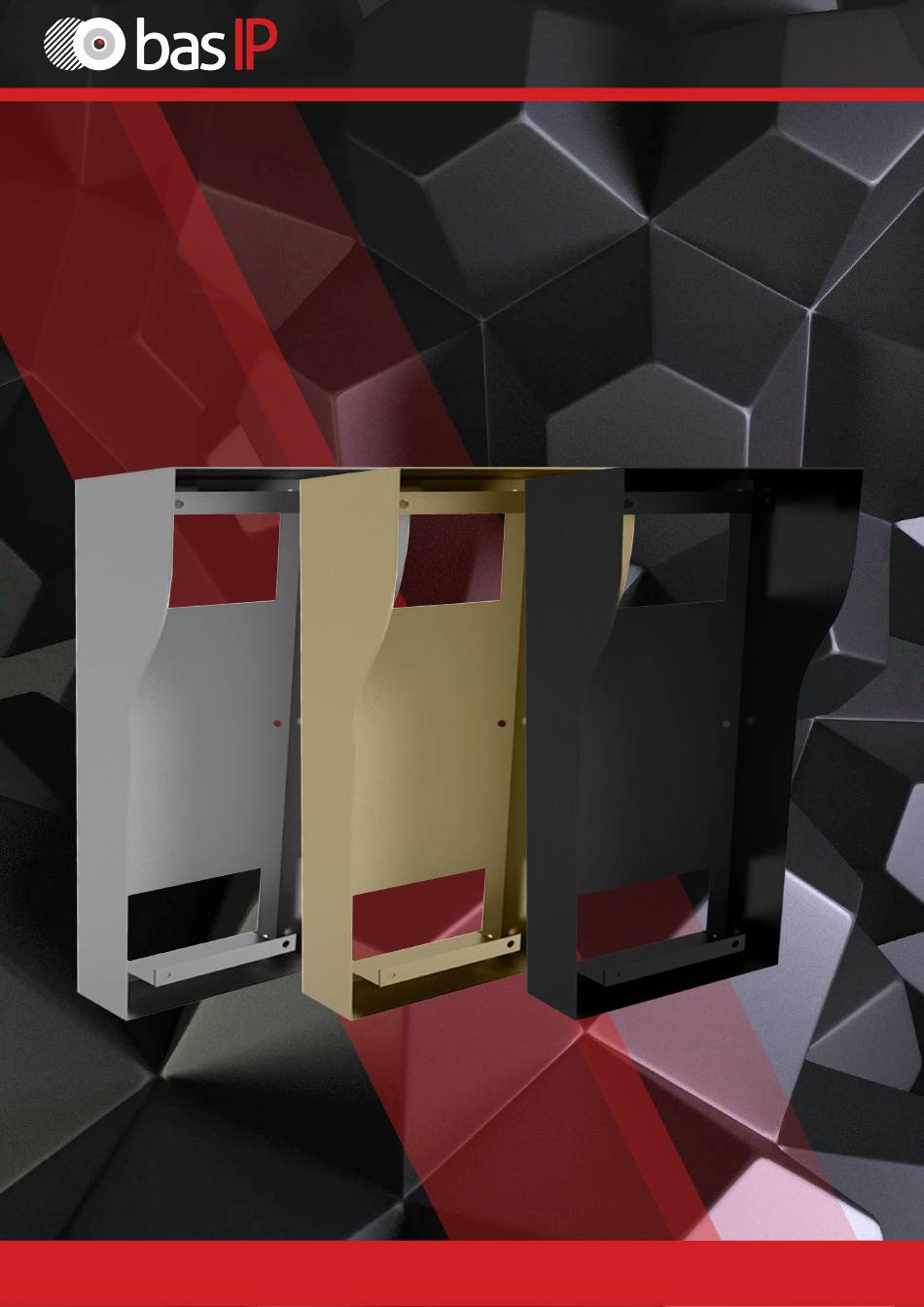

- Page 1 USER MANUAL BR-AA14 BRACKET...
-
Page 2: Main Features
A bracket for wall mount dedicated to AA-14FB multi-apartment outdoor panel. BR-AA14 bracket. Wall mount. Measure the dimensions of the bracket needed to mark the location of the intended installation on the wall for further mounting the bracket. 185 mm... - Page 3 BR-AA14 screws connection cords On the wall, draw a rectangle Place the wall mount bracket according to the dimensions on the wall and outline places done in the previous step.
- Page 4 Wire all the necessary cables for Place the wall mount bracket panel connection and switching to the installation place on the (for Ethernet, an exit button, wall and fasten it with screws a lock, panel power, a door sensor, through the mounting holes. a fire alarm, RS485, and Wiegand At the same time, pass all the interfaces) out of the wall within...
- Page 5 EAN: 5060514913659 (BLACK) EAN: 5060514913673 (GOLD) EAN: 5060514913666 (SILVER) Switch and connect the Join all the resulting connectors protruding from the wall at the ends of the wires to their and passing through the corresponding response parts insulating rectangle wires to the on the panel rear side.
- Page 6 Apply a 3-4 mm layer of silicone sealant around all wires coming out of the slots in the insulating rectangle. The sealant must be applied to the top of the joint between the wire and the insulating rectangle. Silicon sealant Put all connected to the panel wires on the bottom of the surface mount bracket.
- Page 7 EAN: 5060514913659 (BLACK) EAN: 5060514913673 (GOLD) EAN: 5060514913666 (SILVER) Install the entrance panel inside the surface mount bracket. Important! Hold the wiring bundle on the bottom of the bracket so that some wires do not fall on the sharp edges and are not pressed by the panel.
- Page 8 www.bas-ip.com...
