Summary of Contents for Maxcare MAX-J02QB917G
- Page 1 User Manual MAX-J02QB917G...
- Page 2 COMPANY PROFILE After two decades of experience in the health industry, founder utilized his knowledge and expertise in massage therapy from an Asian-Pacific perspective to establish our brand - Our massage therapy business was expanded to Hong Kong in 2012 and is conferred 2017 Hong Kong Top Brand Award. Based in Hong Kong, we are specializing in design &...
-
Page 3: Table Of Contents
Thank you for purchasing the Maxcare products. Before using the product, please read this manual thoroughly, particularly the Safety Precautions section, for the correct use of the product. This manual should be well kept for easy reference. It enables you to perform a safe and efficient operation. -
Page 4: Safety Precautions
Safety Precautions 1. Important safety warning • Please read this manual instruction carefully before operation. • Don’t use accessories which are not recommended. • Any other usage that is not listed in this manual instruction is forbidden. • Please don’t use it if the cover or accessories is damaged. •... - Page 5 Safety Precautions People who have the below symptoms, please consult a doctor before use • People who are receiving medical treatment, especially physically unfit, are not suitable to use this product. • People who have cancers, acute illnesses, heart diseases, or severe high blood pressure, etc.
- Page 6 Safety Precautions • Hold the handle when both getting on and off the machine, keep your body balanced. • Don’t use other therapy devices while using this product. • This product is not to be used for medical treatment purpose. •...
-
Page 7: Name And Function Of Components
Name and Function of Components Kit List Semi-round Arc washer flat washer Arc washer head screw (M6) (M6) (M8) (M6×12) Carriage bolts Cap nut Semi-round M8 lock nut (M8×65) (M8) head screw (M8) (M8×35) Semi-round Spring washer flat washer Outer hexagonal head screw (M8) (M8) - Page 8 Name and Function of Components Part List Name QTY. NO. Name QTY. NO. Name QTY. M8*45 carriage 19 M6*12 Semi round 10 Seat holder bolts head screw Back stator Adjustment Knob 20 Φ6.2 Arc screw M8*40 Semi-round 12 Pedal(right) 21 Handlebar head screw 22 Frame regulating Back armrest...
-
Page 9: Product Installation

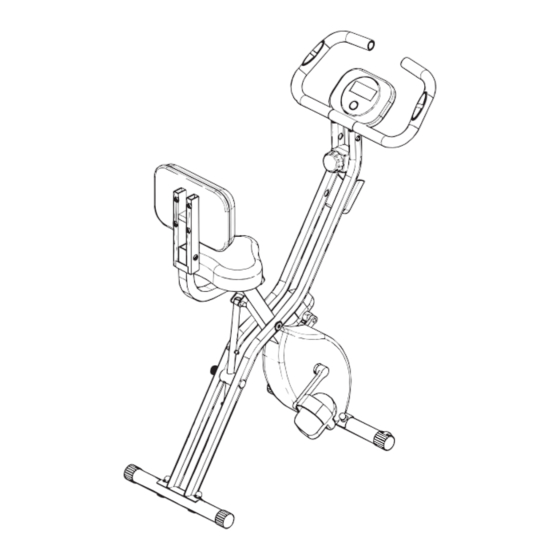

Product Installation Installation Drawing Diagram Part Name Arc washer (M8) Cap nut (M8) carriage bolt (M8×65) Step1 Align the hole of the foot tube (14) with that of the main frame (17), use the carriage bolts (15) , arc washers (8) and cap nuts (13) to fix the two parts together, and then tighten the nuts (13). - Page 10 Product Installation Diagram Part Name flat washer (M8) Lock nut (M8) carriage bolt (M8×65) Step3 Align the hole of the back (5) and that of the seat holder (10), pass a M8*45 carriage bolt (1) through them, place a M8 flat washer (6) on top, and then tighten the lock nut (7).
- Page 11 Product Installation Diagram Part Name Adjustment Knob Step5 Insert the seat holder (10) into the main frame (17) as shown in the figure, fix it with the adjustment knob (11), which is used to adjust the height of the seat after installation.
- Page 12 Product Installation Step7 Please do not mix up the left and right pedals. And attach them correctly to the corresponding side of the main frame (there are labels on the pedals). P.09...
- Page 13 Product Installation How to adjust the bike angles The bike can be adjusted to 2 cycling positions or folded up for storage. Upright cycling or recumbent cycling position or storge size: Twist the round knob on the main unit to Round the left to loosen the bolt (do not fully Knob...
- Page 14 Product Installation FUNCTIONS ‧ POWER ON/OFF : Press the button once or start to pedal to power on. The power will automatically switch off after 4 minutes of inactivity. ‧ SCAN : Press the button until the screen displays SCAN. The monitor will automatically scan each function: SPEED, TIME,DISTANCE, CALORIES and PULSE RATE, every 6 seconds.
-
Page 15: Cleaning And Maintenance
Cleaning and Maintenance Cleaning • Use a vacuum cleaner or soft cloth to clean the surface of the product and the surrounding area to extend its expected lifespan. • Do not use corrosive cleaning agents like benzene or thinner to clean the product. Maintenance •... -
Page 16: Technical Specifications
Technical Specifications Product Name : MAX Bike Product Model : MAX-J02QB917G Batteries for the digital screen : AAA*2 Product Gross Weight : 22KGS Product Net Weight : 21KGS Max. Loading Capacity : 150KGS Product Size - Stretched out 1 (L*W*H) : 800mm*495mm*1050mm...
