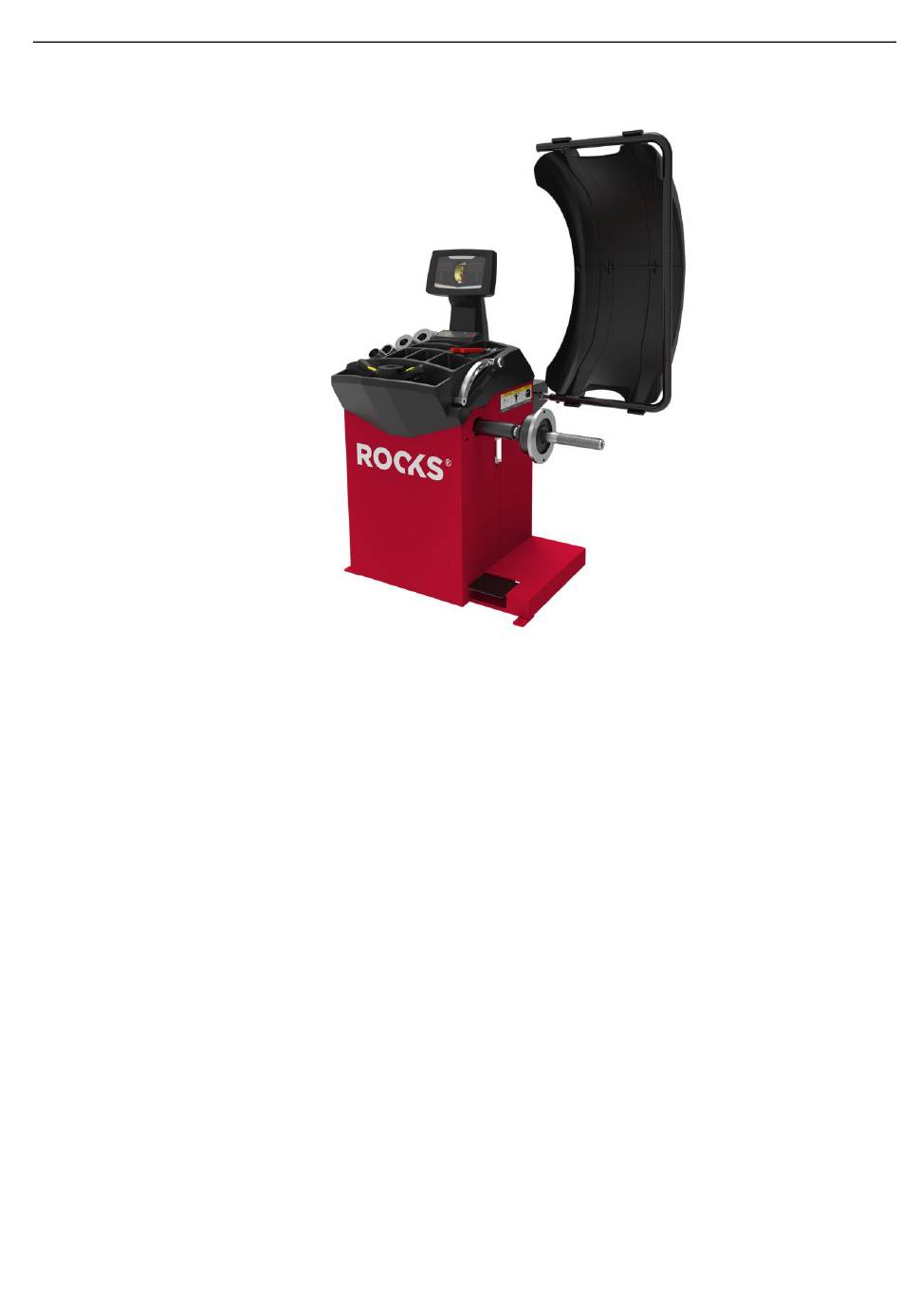

- Page 1 Automatic wheel balancer OK-08.3100 Distributor: Auto Partner SA Ul. Ekonomiczna 20 43-150 Bieruń www.rooks.pl...
- Page 2 Warning ⚫ This manual is a necessary part of the product. Please read carefully. ⚫ Keep the manual for later use when maintaining the machine. ⚫ This machine can only be used for the designated purposes. Never use it for any other purpose. ⚫...
-
Page 3: Table Of Contents
Contents 1. General-----------------------------------------------------------------------------------------------------------------1 2. Machine assembly----------------------------------------------------------------------------------------------------1 3. Controls and components--------------------------------------------------------------------------------------------3 4. Indication and use of wheel balancer------------------------------------------------------------------------------6 5. Machine Self-calibration-------------------------------------------------------------------------------------------13 6. Errors------------------------------------------------------------------------------------------------------------------19 7. OPT function --------------------------------------------------------------------------------------------------------20 8. Spare parts list and Exploded drawings -------------------------------------------------------------------------21... -
Page 4: General
1. General 1.1. Technical data： ⚫ Max wheel weight：65kg ⚫ Power：0.2kw;0.37kw ⚫ Power supply: 220v;230v;240v;110v;50hz;60hz ⚫ Balancing accuracy： ⚫ 8 balancing modes: DYN, ALU1, ALU2,ALU3, ALU4,ALU5,ALUS, ST ⚫ Balancing speed：180r/min ⚫ Cycle time：8s ⚫ Rim diameter：10〃～24〃(256mm～610mm) ⚫ Sound pressure level during work cycle：<70db 1.2. - Page 5 2.2. Install ⚫ The equipment should be installed on the stable ground, not wooden pallet, otherwise not accurate. ⚫ Keep the back panel 0.6M away from the wall for good ventilation. Enough room should be left on both sides for convenient operation. 2.3.
-
Page 6: Controls And Components
Main shaft-wheel— Main shaft-suitable cone(big head towards inside) —wheel—quick handle nut suitable cone( small head towards inside)—quick handle nut Attention：May add a wheel, and hold the wheel to help install the thread hub. When installing or taking off wheel, do not let wheel move on the shaft, to avoid scratching shaft. 3．Controls and components Standard/Option Item... - Page 7 Display screen (G) 1. inside amount of unbalance 2. dimension 3. outside amount of unbalance 4. Digital readout, inside position of unbalance 5. Digital readout, outside position of unbalance 6. Indicator bar for ruler when pull out ruler for outside position 7.
- Page 8 1. Turn on machine Clip on weight on 2. Input a,b,d value inside rim edge, add ALU4 3. Press ALU button, indicator lit up adhesive weight on 4. Start spin, after spin stop outside rim shoulder 1. Turn on machine Add adhesive weight 2.
-
Page 9: Indication And Use Of Wheel Balancer
(if provided) *electronic brakes * Icon Function Icon Function Automatic brake switch / can be Looking for imbalances used to load and unload tires 4. Indication and use of wheel balancer 4.1．DYN (Standard/Default) mode 4.1.1. Clean wheel, take off counterweights, check pressure of wheel.Choose the way of installation according to the type of wheel. - Page 10 Fig.1 Fig.2 a Fig.2 b 4.1.4. Put down the guard and press to perform a measuring spin. 4.1.5. In a few seconds the wheel is brought to operating speed and begin measuring unbalance, the unbalance values remain on instruments 1 and 3 when the wheel stopped. Press may check the real unbalance value under threshold.
- Page 11 4.2.3. Put down the guard and press to perform a measuring spin. 4.2.4. In a few seconds the wheel is brought to operating speed and begin measuring unbalance, the unbalance values remain on instruments 1 and 3 when the wheel stopped. Press may check the real unbalance value under threshold.
- Page 12 ⚫ Set “aE”: pull gauge out let the gauge head touch the position of FE for 4 seconds ，may press to change ⚫ Set “dI”: read from rim, may press to change ⚫ Set “dE”: read from rim, may press to change Fig.
- Page 13 Fig. 12 Fig. 13 Pull out gauge until there is a square comes in the middle window (Fig. 14) Fig. 14 Release the counterweight and let it stick on rim (Fig. 15) Fig. 15 Anticlockwise moving wheel slowly, until the left LED lit up full (Fig.16) Fig.16 Take off proper counterweight to be hold by the gauge head as Fig.
- Page 14 Fig. 17 Release the counterweight and let it stick on rim (Fig. 18) Fig. 18 Then turn down safe guard and press to start spin, comes (Fig. 19)means the wheel is balanced. Fig. 19 Laser helping mode( 9o’clock position to add weight, Set LAS=ON as 5.2 instruction) 4.3.3 Anticlockwise moving wheel slowly, until the right LED lit up full, add weight on laser position ( 9 o’clock ) (Fig.20) Fig.
- Page 15 Fig. 21 ，to perform balancing spin again, if After finishing mounting the counterweights, put down the guard and press comes out 00 00，means balancing succeed. (Fig.22) Fig. 22 4.4. ALUS split function Note: Only ALU-S mode can use this function. And Operator must be experienced. comes In ALU-S mode, press ＞...
-
Page 16: Machine Self-Calibration
comes ， after spin Put down safe guard and press ＞ stop SP succeed 5.Machine Setting and Self-calibration Press goes to set machine, press to change， Confirmation of entry, press Cancel Reasons Solution Step Self diagnosis Machine setting Rim distance gauge calibration Calibration of diameter gauge Calibration of width gauge Calibration of laser... - Page 17 Diameter turn ruler to left window data is 327-340, potentiometer another direction, data changes Width left window data is 327-340, turn ruler to potentiometer another direction, data changes Use hand to press main shaft, 4X-4X 6X-6X Pressure sensor changes 5.2 Machine setting press keys to enter press...
- Page 18 5.2.1For motorcycle wheel ★ Use the motorcycle adapter for wheel balancer we provide★ Step 1 Step 2 Step 3 Install part No.1 through No.9 1． Take off the standard gauge head for 1． Take off standard thread for car Lock and fix in position C and D 2．...
- Page 19 pull gauge to position “15” and hold, press operation＞ Calibration finished 5.4.1 Radar Calibration of width gauge (No tyres need to be installed) press keys to enter. select Select press keys to enter comes＞ Keep the protective cover in position Auto complete comes＞...
- Page 20 A value must be entered explain＞ We're aiming the radar at the tires explain＞ Press at the same time to explain＞ modify the known tire width Put down the key to save automatically 5.5.Calibration of diameter gauge(Install a tire) press keys to enter.
- Page 21 5.6 Calibration of laser (If have) press keys to enter press keys to enter. select Select keys to confirm. , the laser is aligned keys to confirm. Calibration finished...
-
Page 22: Errors
Self-calibration 5.7.1 Self-calibration of wheel balancer Turn on balancer, install a medium size wheel (14″-18″)which can use clip-on weight, set “a b d” value, 5.7.2 then Do the self-calibration whenever you think the balancer is not accurate. The 100g weight must be accurate. Step comes Press... -
Page 23: Opt Function
1. Micro switch problem 1.Check or change Micro switch 2. Computer board problem 2.Check or change computer board 1. Power board problem 1.Check or change power board 2. Computer board problem 2.Check or change computer board 1. Program lost 1.Self calibration 2. -
Page 24: Spare Parts List And Exploded Drawings
Then put down safe guard and press comes＞ Rotate wheel until four indicators lit up (two on both sides, the dark spot reference＞ in the right side picture), mark the position C with chalk on rubber Rotate wheel until two indicators lit up (one on both sides, the dark spot reference＞...
