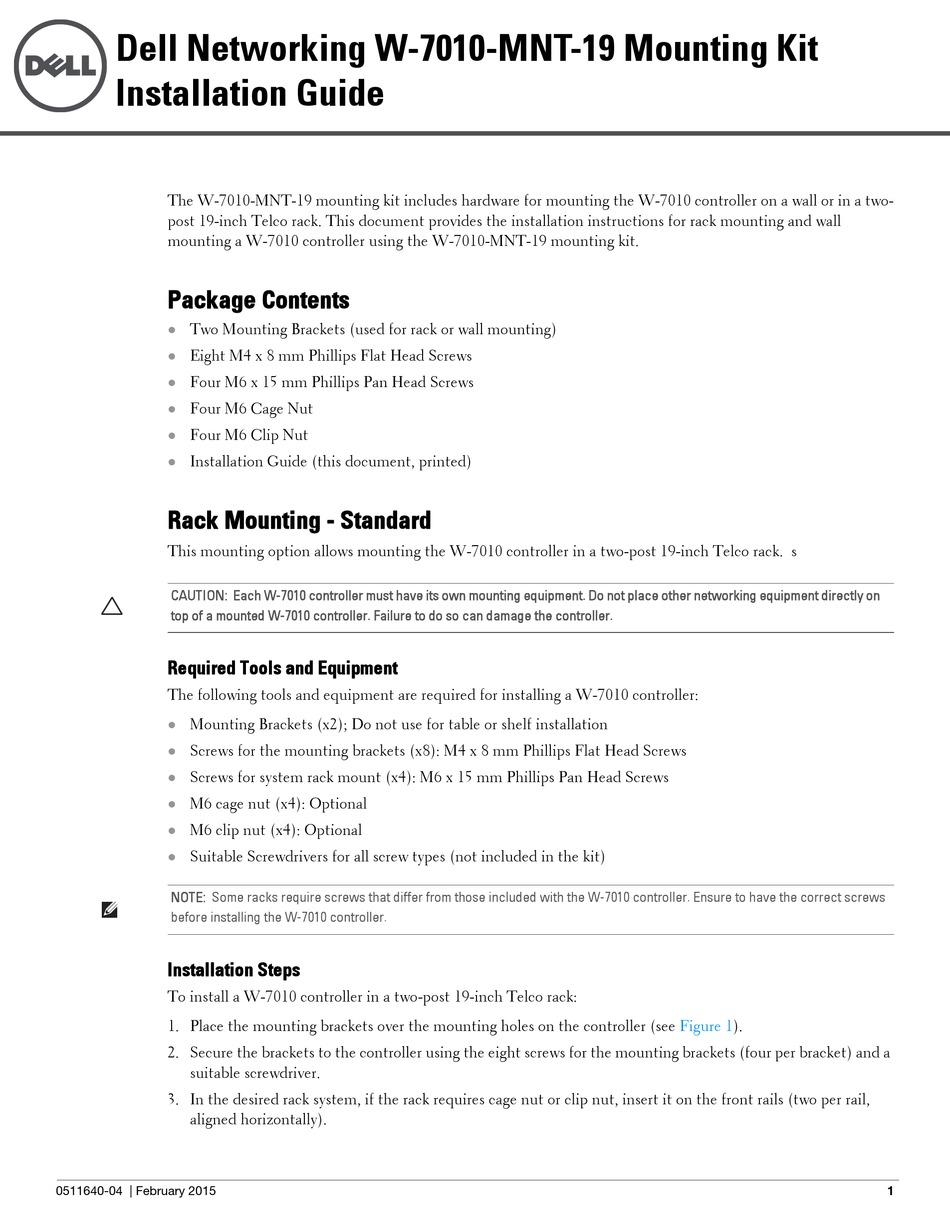

Dell Networking W-7010-MNT-19 Mounting Kit
Installation Guide
The W-7010-MNT-19 mounting kit includes hardware for mounting the W-7010 controller on a wall or in a two-
post 19-inch Telco rack. This document provides the installation instructions for rack mounting and wall
mounting a W-7010 controller using the W-7010-MNT-19 mounting kit.
Package Contents
Two Mounting Brackets (used for rack or wall mounting)
Eight M4 x 8 mm Phillips Flat Head Screws
Four M6 x 15 mm Phillips Pan Head Screws
Four M6 Cage Nut
Four M6 Clip Nut
Installation Guide (this document, printed)
Rack Mounting - Standard
This mounting option allows mounting the W-7010 controller in a two-post 19-inch Telco rack. s
CAUTION: Each W-7010 controller must have its own mounting equipment. Do not place other networking equipment directly on
top of a mounted W-7010 controller. Failure to do so can damage the controller.
Required Tools and Equipment
The following tools and equipment are required for installing a W-7010 controller:
Mounting Brackets (x2); Do not use for table or shelf installation
Screws for the mounting brackets (x8): M4 x 8 mm Phillips Flat Head Screws
Screws for system rack mount (x4): M6 x 15 mm Phillips Pan Head Screws
M6 cage nut (x4): Optional
M6 clip nut (x4): Optional
Suitable Screwdrivers for all screw types (not included in the kit)
NOTE: Some racks require screws that differ from those included with the W-7010 controller. Ensure to have the correct screws
before installing the W-7010 controller.
Installation Steps
To install a W-7010 controller in a two-post 19-inch Telco rack:
1. Place the mounting brackets over the mounting holes on the controller (see
2. Secure the brackets to the controller using the eight screws for the mounting brackets (four per bracket) and a
suitable screwdriver.
3. In the desired rack system, if the rack requires cage nut or clip nut, insert it on the front rails (two per rail,
aligned horizontally).
0511640-04 | February 2015
Figure
1).
1
Advertisement
Table of Contents
Summary of Contents for Dell Networking W-7010-MNT-19
- Page 1 Dell Networking W-7010-MNT-19 Mounting Kit Installation Guide The W-7010-MNT-19 mounting kit includes hardware for mounting the W-7010 controller on a wall or in a two- post 19-inch Telco rack. This document provides the installation instructions for rack mounting and wall mounting a W-7010 controller using the W-7010-MNT-19 mounting kit.
- Page 2 Wall Anchors: Optional accessory (not included in the kit) Wall Mounting Screws: The type of screw depends on the installation surface (not included in the kit) Suitable Screwdrivers for all screw types (not included in the kit) Dell Networking W-7010-MNT-19 Mounting Kit | Installation Guide...
- Page 3 3. Create the holes and insert wall anchors if the installation requires them. 4. Align the mounting bracket holes with the holes created in the wall (see Figure 5. Use appropriate screws to secure the W-7010 controller. Figure 4 Wall Mounting Dell Networking W-7010-MNT-19 Mounting Kit | Installation Guide...
- Page 4 VPN client devices constitutes complete acceptance of liability by that individual or corporation for this action and indemnifies, in full, Aruba Networks, Inc. from any and all legal actions that might be taken against it with respect to infringement of copyright on behalf of those vendors. Dell Networking W-7010-MNT-19 Mounting Kit | Installation Guide...
