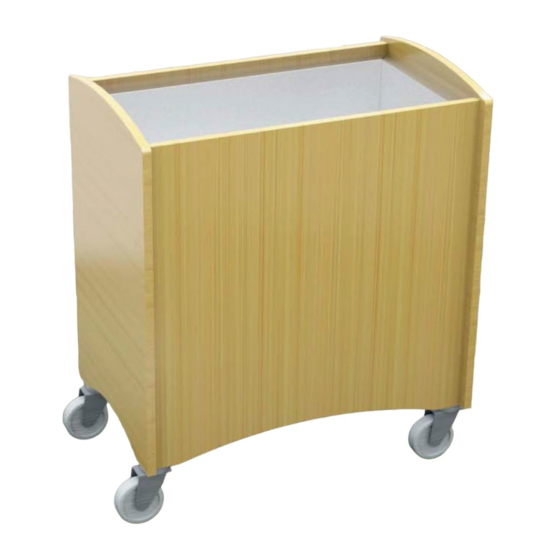

Summary of Contents for Bond Abigail's ABI REFRIGERATED COT MK2

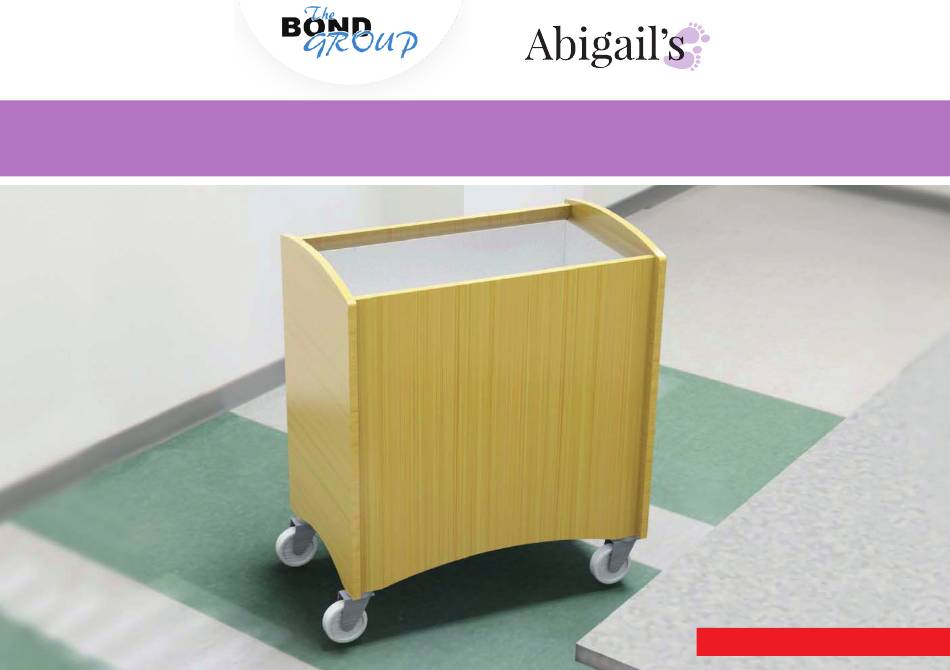

- Page 1 ABI REFRIGERATED COT O P E R A T I O N & M A I N T E N A N C E M A N U A L ISSUE 3 | November 2020 THIS IS NOT A MEDICAL DEVICE...
-
Page 2: Table Of Contents
Contents General Information • User Guide • Handling and Transport • Installation • Service Instructions • Case Cleaning Case Information • Model • Cot Features • Colour • Technical Data • Profile • Footprint Drawing Spare Parts List Parameters that are not Default EC Declaration of Conformity... -
Page 3: General Information
General Information Start Up Guide • Connect the plug to a 240V standard UK socket Abi Cots are designed to allow bereaved • Switch the unit on at the mains and confirm that the parents to spend a larger amount of LED light in the bottom corner of the unit is on to indicate that the unit is receiving power. -
Page 4: Handling And Transport
General Information Shut Down Guide Handling and Transport • Switch off at socket and remove plug. The refrigerated cot is transported on a pallet and • Allow 2 hours for cot to defrost. can be moved by fork truck with amply boarded and •... -
Page 5: Case Cleaning
You need to be able to see through the condenser for the unit to function at maximum capacity. If you are unsure of any of these maintenance/ cleaning issues contact your sales person or the Bond service desk. -
Page 6: Case Information
Case Information 230V / 50Hz) Watts / Amps 322/1.4 10//0.04 322/1.4 ing Load for Cabinet 332/1.44 10//0.04 Cot Features Model Bond Abi ing Load for Cabinet 332/1.44 • Wooden Panels • Stainless Internal Refrigerated Cot Description • Brass Fittings •... -
Page 7: Spare Parts List
Spare Parts List Part Number Description Colour Quantity Per Cabinet 250029 Cot End Egger Light Winchester Oak H3382 250030 Fixed Side Panel Egger Light Winchester Oak H3382 250031 Removable Side Panel Egger Light Winchester Oak H3382 UEMT6144Z Embraco Condensing Unit 130165 LAE Controller EX5ACA104... -
Page 8: Parameters That Are Not Default
Cabinet Controller LAE AT1-5 Information Sheet Refrigerant R134A Set Up Data Chicago - LAE Param Unit Default Actual Description °C/°F (1) Minimum Limit for Set Point °C/°F (1) Maximum Limit for Set Point °C/°F (1) Set Point REF / HEA °C/°F (1) OFF / ON Thermostat Differential Compressor Rest Time... -
Page 9: Ec Declaration Of Conformity
www.abigailsfootsteps.co.uk...
