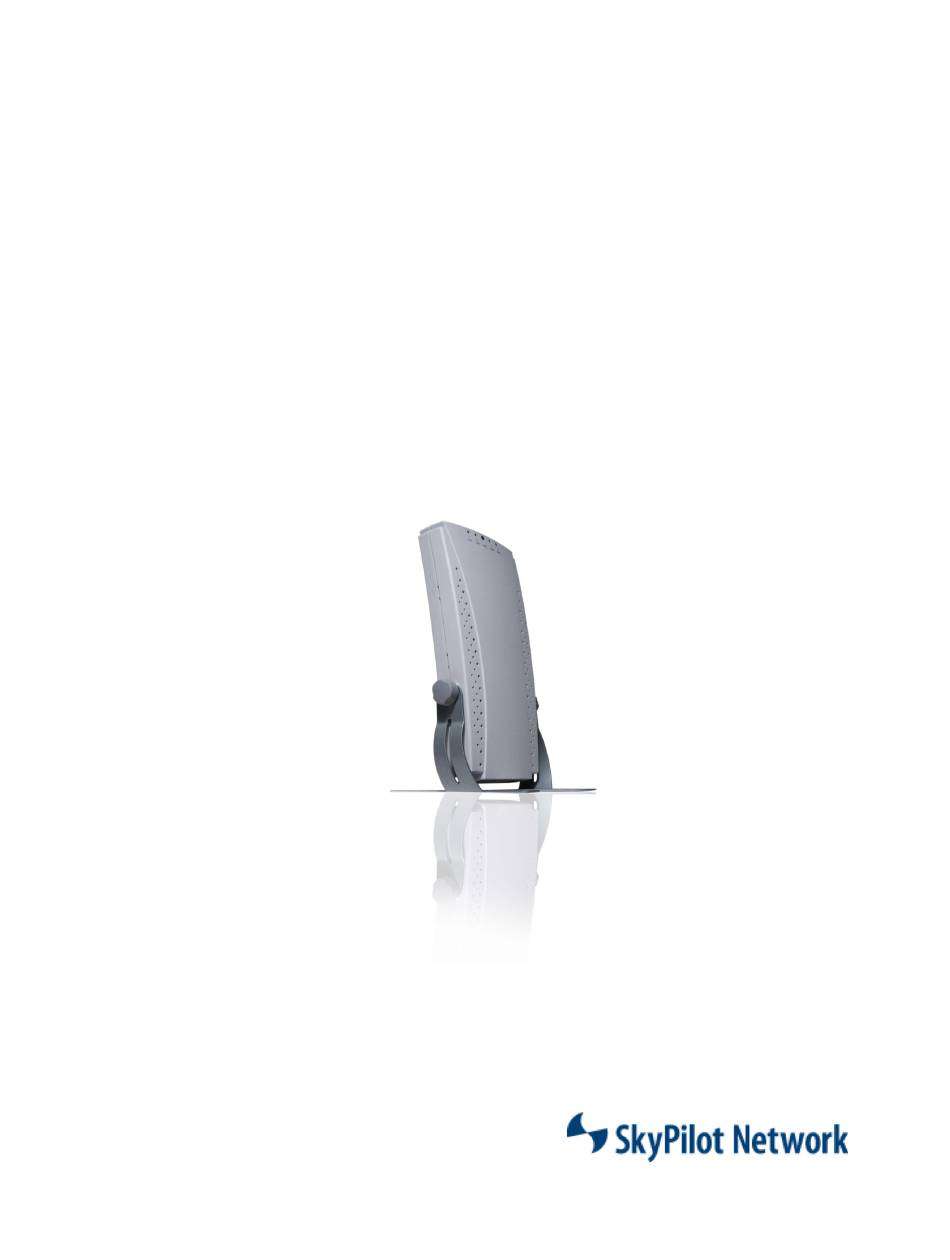

- Page 1 SkyConnector Indoor Installation Guide 670-00003-01 Version 1.0 September 2004...
- Page 2 © 2004 SkyPilot Network, Inc. All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of SkyPilot. SkyConnector, SkyPilot, SkyPilot Network, the SkyPilot logo, and other designated trademarks, trade names, logos, and brands are the property of SkyPilot Network, Inc.
-
Page 3: Table Of Contents
Contents 1 Getting Started..............................4 2 Power the SkyConnector ............................5 3 Locate the Best Signal............................6 4 Mount the SkyConnector ............................8 5 Connect to Your Computer..........................10 6 Product Specifications............................11 Communications Regulations Information........................12 SkyConnector Indoor Installation Guide... -
Page 4: Getting Started
Getting Started Your SkyConnector has been designed so that you can set it up quickly and start using it right away to access the Internet through your service provider. Read this section for instructions on getting started and where to get more information. -
Page 5: Power The Skyconnector
3. Insert one end of the 25-foot CAT5 cable (H) into the CPE port of the Power Injector (B). 4. Insert the other end of the 25-foot CAT5 cable (H) into the RJ-45 port on the back of the SkyConnector. If connected properly, the Power (PWR) and Wide Area Network (WAN) lights on the SkyConnector will appear and the WAN lights should blink and turn off. -
Page 6: Locate The Best Signal
Locate the Best Signal The ideal location for your SkyConnector is a location close to your computer that also provides access to a window with an unobstructed view. Your service provider may have included specific instructions for the best possible reception based upon coverage in your area. - Page 7 WAN Act When illuminated, indicates SkyConnector is online and authorized for use on a service provider’s wireless network. When blinking, indicates SkyConnector is within coverage area of a service provider’s wireless network and the strength of the signal. Table 1 – SkyConnector Lights and Functions...
-
Page 8: Mount The Skyconnector
Desk Stand Mount. 3. Place the SkyConnector in the Desk Stand Mount with the lights at the top. Be sure to align the cutouts in the Desk Stand Mount with the notches on the sides of the SkyConnector. - Page 9 SkyConnector and Window Sill Mount in the location you determined had the best reception. 4. Place the SkyConnector on the Window Sill Mount with the lights at the top. Be sure to align the screw hole on the bottom of the SkyConnector with the single hole on the top of the Window Sill Mount.
-
Page 10: Connect To Your Computer
CAT5 cable that is connected to the CPE port on the Power Injector into any device other than the SkyConnector or plug the CAT5 cable that is connected to the Computer port on the Power Injector to into any device other than your computer. -
Page 11: Product Specifications
Warranty Every effort has been made to ensure that the information in this manual is accurate. SkyPilot is not responsible for printing or clerical errors. Product specifications are subject to change without notice. This material is provided for informational purposes only. SkyPilot assumes no liability related to its use and expressly disclaims any implied warranties of merchantability or fitness for any particular purpose. -
Page 12: Communications Regulations Information
EMC compliance and negate your authority to operate the device. This device was tested for EMC compliance. The radiated output power of the SkyConnector is far below the FCC radio frequency exposure limits. Nevertheless, it is advised to use the wireless equipment in such a manner that the potential for human contact during normal operation is minimized.
