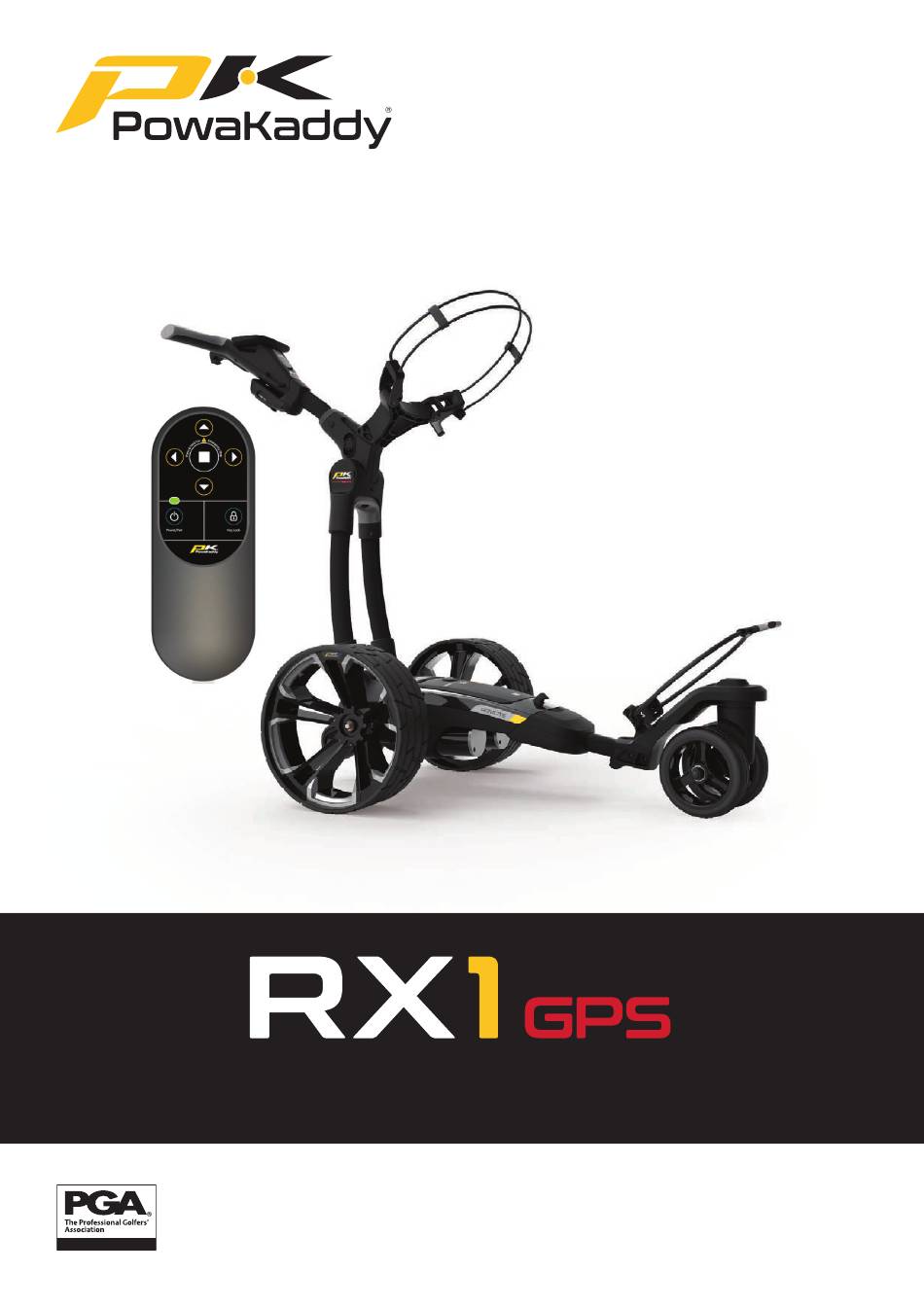

- Page 1 OWNERS MANUAL PGA is a registered trade POWAKADDY.COM mark of the Professional Golfers’ Association Partner Limited.
-
Page 2: Safe Use Of Your Trolley
SAFE USE OF YOUR TROLLEY Before heading out on course, it is highly advisable to first use your brand new RX1 GPS in a wide-open area to familiarise yourself with the remote characteristics of the trolley. Preferably use on grass with your golf bag secured to the trolley. -
Page 3: Product Warranty
Scan to open the registration page or visit: powakaddy.com/my-powakaddy *Terms and conditions apply. See powakaddy.com for details. GETTING STARTED Remove the front wheel assembly, wheels, and frame from the box. Slide the front wheel assembly into the frame and secure using the two hex screws and washers provided in the pack. - Page 4 UNFOLD YOUR TROLLEY First, rotate the anti-tip wheel from under the PowaFrame until it locks into place, sticking out from the rear of the trolley. Secondly, unfold the frame. Press the grey main lock button (highlighted in blue) and lift the handle until the rear and upper joints click into place.
- Page 5 HANDLE HEIGHT ADJUST The handle height is pre-set to suit most users but can be adjusted to one of five positions. You only have to adjust this once. To adjust: 1. With the trolley fully open, remove the locking bolt from the height adjust plate using the 4mm hex key supplied in your manual pack.
-
Page 6: Lithium Battery
Failure to do so will reduce the life of your battery. See Section 14, Battery Care for detailed instructions. Your PowaKaddy trolley features an innovative Plug’n’Play™ battery system including sprung terminals and a locking feature to maintain power connection over uneven terrain. Once your... -
Page 7: Remote Operation
REMOTE OPERATION - (Electronic Braking System) Activated. Good for: Fairways, around the greens or when you are in the rough. Not for: Car parks, bridges, paths or negotiating hazards. • In Remote mode the trolley will attempt to move in a straight direction. If you try and steer the trolley manually it will counteract your input. -
Page 8: Forward Arrow
Charging your remote handset: Your remote handset can be used for up to 5 rounds of golf on a single charge depending on use and duration. For optimum performance and prolonging the life of the battery, we recommend charging after every use. To charge the handset: 1. -
Page 9: Manual Controls
MANUAL CONTROLS Once your battery is fully charged, and connected, your trolley is ready to use. The control functions are detailed below. Note: Your trolley includes a power save mode to extend the life of your battery. After 5 minutes of sitting idle, the trolleys display will turn off. - Page 10 5v/1.5A suitable for most USB devices* *USB output voltage 5v/1.5A compatible with most USB portable devices, please check device manufacturers instructions before use. PowaKaddy International Ltd accepts no liability for loss of data or damage from using the charging port with incompatible device.
-
Page 11: Gps Functions
Your trolley is pre-loaded with over 40,000 course maps. You Course Highlighted can update any map using a smartphone via the PowaKaddy App. See Section 15 for detailed instructions. Demo Mode: Will allow the user to explore the display screens and trolley function without requiring a GPS signal lock. - Page 12 Navigate the GPS functions: Par & Stroke Index • Swipe across the screen from right to left to navigate between the Active Green View, Hazard display, Shot Measure function and the Enter Score screen. • Swipe a fourth time to loop back to the Active Green View screen.
- Page 13 Hazard Descriptions Fairway Hazards Green Side Hazards: BGB - BACK GREEN BUNKER LFB - LEFT FAIRWAY BUNKER Distance taken from the FRONT of the hazard Distance taken from the FRONT of the hazard MFB - MIDDLE FAIRWAY BUNKER FGB - FRONT GREEN BUNKER Distance taken from the FRONT of the hazard Distance taken from the FRONT of the hazard RFB - RIGHT FAIRWAY BUNKER...
-
Page 14: Competition Mode
Scorecard: Back to Enter Score Press the ‘VIEW SCORECARD’ graphic located at the top of the Enter Score screen to view the full scorecard. Scores that you have selected on the Enter Score screen will populate the scorecard. Note: A ‘0’ on the Enter Score screen is left as blank entry on the Full Scorecard. -
Page 15: Settings Options
Information displayed: Return to the Settings Menu • Course: The current course selected. Change course by selecting ‘END ROUND’ on page 3 of the Settings Menu and then re-select ‘PLAY GOLF’. • Round Time and Round Distance: Displays the “on” time of the trolley and the distance the trolley has travelled during the round. -
Page 16: Demo Mode
Software version of the handle and motor speed controller. GPS VERSION: Pair Handset GPS Firmware version installed on the handle. (Required in the PowaKaddy GPS App). REMOTE HANDSET: Shows handset connection status. If paired the software version and battery voltage are also displayed. -
Page 17: Battery Care
The battery was not turned on when connected to the charger. The charge cycle has finished, and the battery has turned off. There may be a fault with the battery or charger, please contact PowaKaddy technical support. Battery Safety •... -
Page 18: Charging Safety
• Do not incinerate the battery even if damaged. • Only use a PowaKaddy Battery with a compatible PowaKaddy Trolley. Use of the battery pack on other products may create risk of injury or fire. Charging Safety •... - Page 19 • Only use approved PowaKaddy parts for repairs. Your serial number can be found in the cavity of the rear joint, please make a note for future reference. Should you experience a problem with your PowaKaddy product, please visit www.powakaddy.com/support...
- Page 20 The POWAKADDY name and PK logo are registered trade marks of PowaKaddy International Limited and are protected in the UK and other countries and regions. In addition, Powakaddy International Limited owns various design registrations, patents and other IP rights in connection with their products.
