Daemyung WEBGATE TDM08-SDI-TX Manual

Hs video multiplexer
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

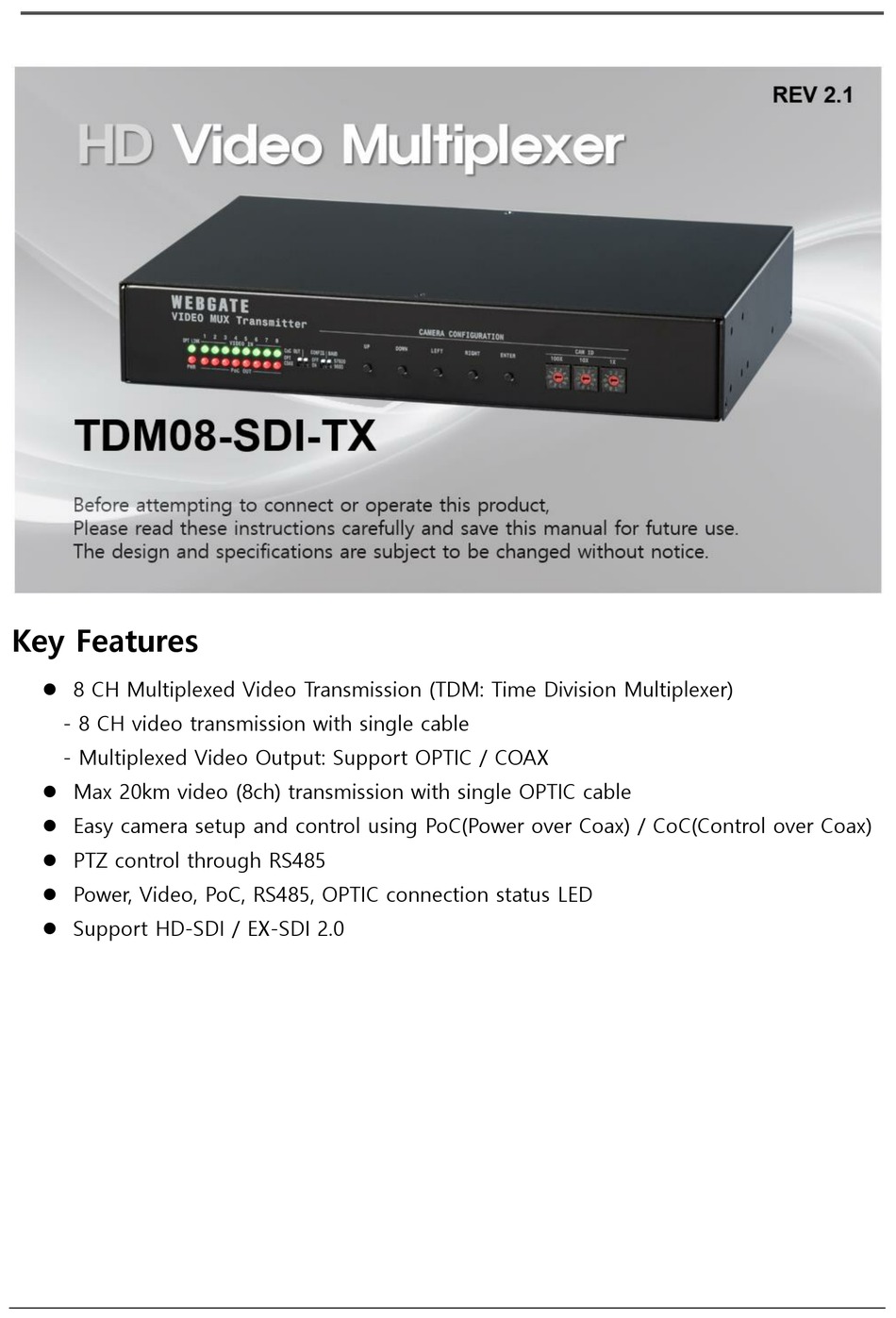

Key Features
 8 CH Multiplexed Video Transmission (TDM: Time Division Multiplexer)
- 8 CH video transmission with single cable
- Multiplexed Video Output: Support OPTIC / COAX
 Max 20km video (8ch) transmission with single OPTIC cable
 Easy camera setup and control using PoC(Power over Coax) / CoC(Control over Coax)
 PTZ control through RS485
 Power, Video, PoC, RS485, OPTIC connection status LED
 Support HD-SDI / EX-SDI 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WEBGATE TDM08-SDI-TX and is the answer not in the manual?

Questions and answers

Summary of Contents for Daemyung WEBGATE TDM08-SDI-TX

  • Page 1 Key Features  8 CH Multiplexed Video Transmission (TDM: Time Division Multiplexer) - 8 CH video transmission with single cable - Multiplexed Video Output: Support OPTIC / COAX  Max 20km video (8ch) transmission with single OPTIC cable  Easy camera setup and control using PoC(Power over Coax) / CoC(Control over Coax) ...

  • Page 2: Warranty

    3) In case user repair unit at their own. 4) Any damage comes from natural disaster (Fire, Flood, etc) 5) Consumable parts replacement. WEBGATE, Daemyung Corporation Co., Ltd. 6F, Hanlim Venture Town B/D, 284, Gondan-ro, Gunpo-si, Gyeonggi-do, Korea (15809) TEL: +82-31-428-9300 FAX: +82-31-455-3955 sales@webgateinc.com...

  • Page 3: Dimension (Unit: Mm)

    Dimension (unit: mm) Description Front Item Description OPT LINK ON when Optic cable is connected. ON when the power is supplied. VIDEO IN ON when each camera video is input. PoC OUT ON when TDM08-SDI-TX supplies the power to each PoC camera. 2 CoC OUT SW Select the port for CoC (OPT(FIBER) or COAX) OFF: Normal Mode...

  • Page 4: Specification

    Rear Item Description 1 VIDEO IN Connect to camera using COAX cable. 8 CH video is muxed into single channel output. 2 MUX OUT Video is output to COAX and FIBER (OPTIC) simultaneously, but CoC can be performed only at the port which is selected by CoC OUT SW. 3 RS485 OUT Connect to camera’s RS485.

  • Page 5: Connection Diagram

    Connection Diagram 1. Connect camera and TDM08-SDI-TX’s VIDEO IN using coax cable. - If non PoC Camera: Supply the individual power to camera. To control the camera’s PTZ and/or OSD, connect the RS485 line between camera and TDM08-SDI-TX. - If PoC Camera: Don’t require any other cables except COAX cable. (non PoC DVR can use PoC camera because TDM08-SDI-TX is PoC device.) 2.
  • Page 6 1. Connect camera and TDM08-SDI-TX’s VIDEO IN using coax cable. - If non PoC Camera: Supply the individual power to camera. To control the camera’s PTZ and/or OSD, connect the RS485 line between camera and TDM08-SDI-TX. - If PoC Camera: Don’t require any other cables except COAX cable. (non PoC DVR can use PoC camera because TDM08-SDI-TX is PoC device.) 2.
  • Page 7 CAMERA CONFIG Mode Operation 1. Connect camera to TDM08-TX’s CH1 (VIDEO IN) using COAX cable. - Only ch 1 can be used as CAMERA CONFIG mode. - If non PoC Camera: Supply the individual power to camera. To control the camera’s PTZ and/or OSD, connect the RS485 line between camera and TDM08-TX.

  • Page 8: Coax Cable

    CAUTION Connections 1. To control camera, all camera’s (which are connected to TDM08-SDI-TX) ID (CAM ID or RS485 ID) must not be overlapped. 2. EX-SDI 1.0 is not supported. (support HD-SDI and EX-SDI 2.0) 3. Please refer the DVR’s manual for DVR’s TDM configuration and usage. 4.
