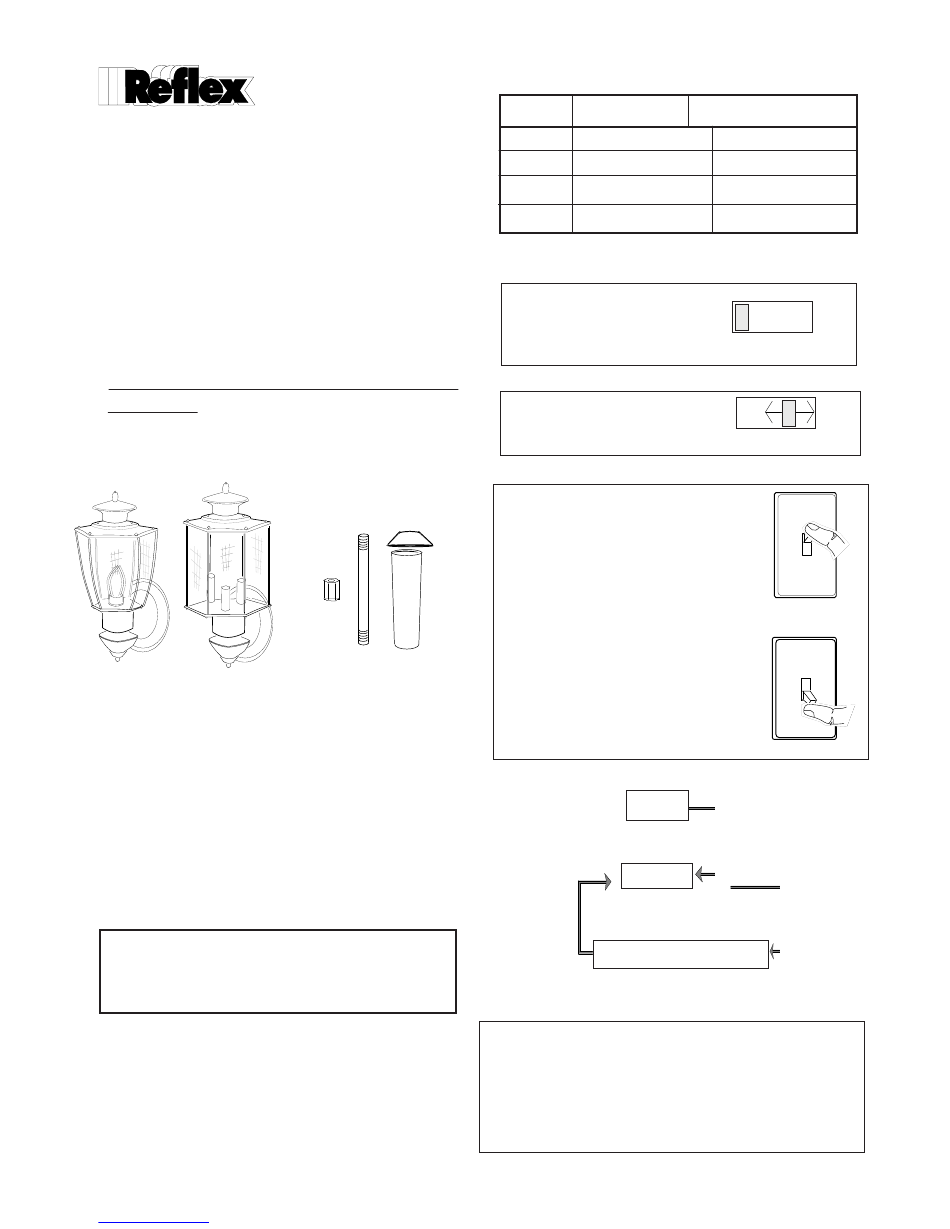

Dual Brite™
Motion Sensing
Coach Light
Models SL-4180/84 - A
• Light comes on when motion is detected.
• Automatically turns light off.
• Dusk Accent lighting.
• Photocell keeps the light off during day-
light hours.
This package includes:
Grand
or
Manor
• The Light Control requires 120 volts AC.
• If you want to use Manual Override, the
control must be wired through a switch.
• Some codes require installation by a
qualified electrician.
Questions? Call 1-800-858-8501
8:00 AM to 4:45 PM Eastern Time,
Lo sentimos, pero no podemos contestar
preguntas en español por teléfono.
© Heath Company
Get user manuals:
See SafeManuals.com
®
T M
Features
Mounting screws
and wire
connectors
Tail Assembly
Candelabra
(Lantern & Coach)
Requirements
weekdays.
OPERATION
Mode:
Test
Auto
Manual
Accent 3,6 Hr, to Dawn
* resets to Auto Mode at dawn.
Set the ON-TIME switch
on the bottom of the cover
plate to TEST.
Set ON-TIME switch to 1,
5 or 10 minutes.
Flip the light switch off for
one second then back on.
Manual override works
when the ON-TIME switch
is in any position.
Manual override only works
at night because daylight
returns the sensor to AUTO.
Mode Switching Summary
Turn
light
switch
off for 10
seconds
then
back on*
* Wait one minute for sensor to warm up.
Light comes on half bright for selected time
after dusk (Off, 3 hr., 6 hr., until dawn). If
motion is sensed, the light turns on full bright
for the ON-TIME (1, 5 or 10 minutes) then
returns to dim mode.
Printed in Hong Kong
On-Time
Works: Day Night
5 Sec
1, 5 or 10 Min
To Dawn*
For TEST
TEST 1 5 10 MIN
For AUTO
TEST 1 5 10 MIN
For MANUAL OVERRIDE
1 Second OFF
... back on.
ON-TIME
TEST
Switch at
1, 5 or 10
minutes
AUTO
MANUAL OVERRIDE
Dusk Accent Mode
595-5578
x
x
x
x
x
then...
Flip light
switch
off for 1
second
then on
