Summary of Contents for Tonka ELF Informer
- Page 1 ELF Informer Tonka Products, LLC ELF Informer User Manual Tonka Products, LLC Rev 1.1...
-
Page 2: Feature List
(GUI). In addition it will also automatically turn off the turn signals so you never have to worry about leaving them on again! The ELF Informer also adds a USB port so you can charge your portable devices. -
Page 3: Main Screen Features

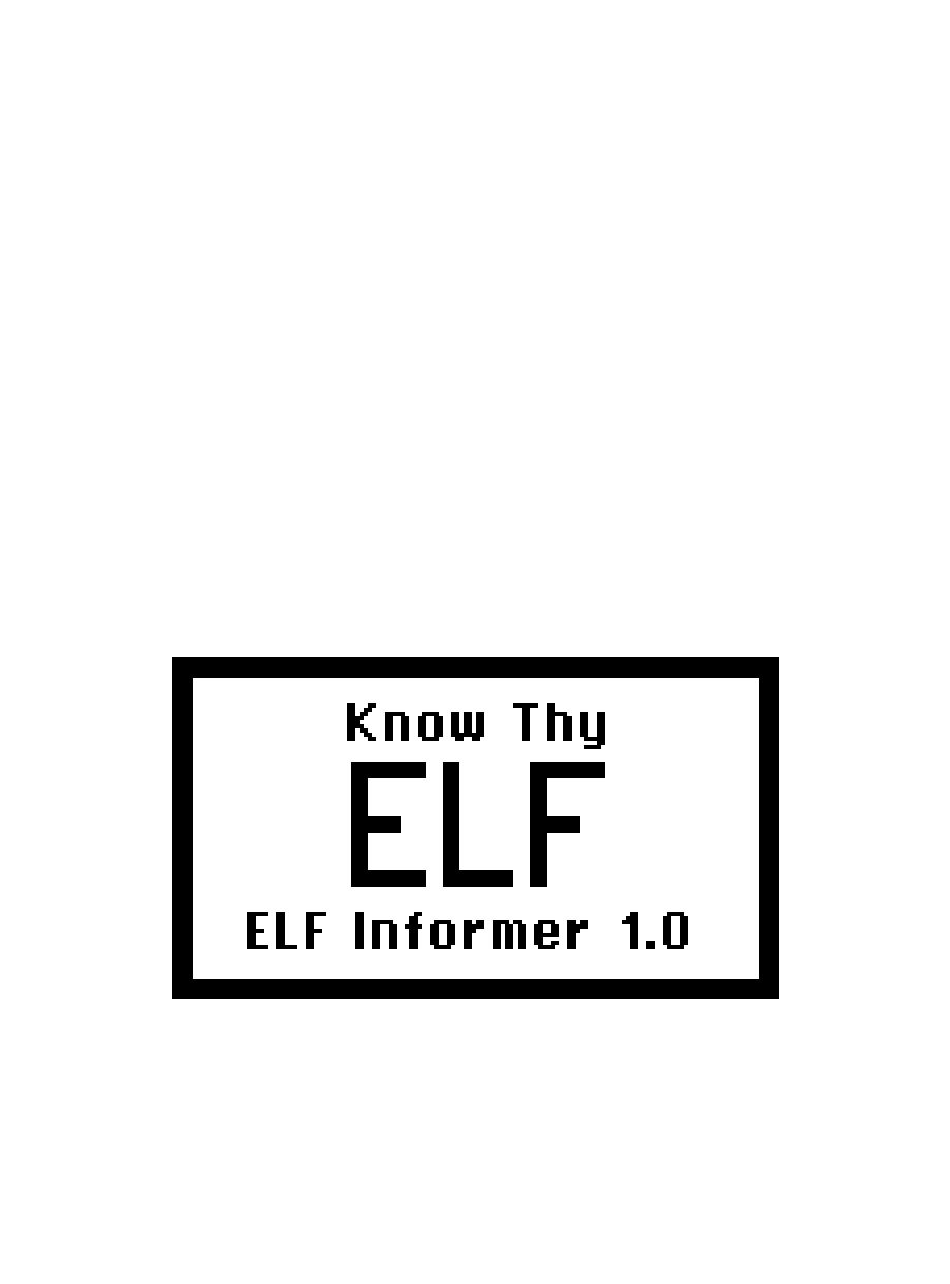

ELF Informer Main Screen The operation of the ELF Informer is based on a Graphical User Interface. All menus and settings are accessed by the Touch Screen. Motor Solar Panel Bar-graph Bar-graph Press here to access the Battery option menu... -
Page 4: Option Menu
This is a function of the headlights and can vary depending on the style of headlights. Config – Press this to select the Config menu to make changes to the operation of the ELF Informer. Tonka Products, LLC... - Page 5 ELF Informer Time Odometer Screen Press here to START or STOP the timer Press to return to the Main screen Press to reset the time Press for the Option menu Press to reset the Non-resetable TRIP odometer odometer Trip odometer The Time Odometer screen displays the Stopwatch feature, Odometer and Reset-able Trip Odometer.
- Page 6 Option Menu – This will select the Option menu to quickly access frequently changed items and the Config Menu. Config – This will select the Config menu to make changes to the operation of the ELF Informer. Tonka Products, LLC...
-
Page 7: Configuration Screen
Press to adjust the Horn settings The Configuration screen is used to adjust the settings of the ELF Informer. Configuration Screen features: Units Menu– Select this to adjust the units of measurement. Eco Mode Menu – This feature is not implemented at this time. -
Page 8: Units Screen
Main Screen – Press this to return to the Main screen. Option Menu – Select this to return to the Option menu to quickly access frequently changed items. Config – This will select the Config menu to make changes to the operation of the ELF Informer. Tonka Products, LLC... - Page 9 Main Screen – Press this to return to the Main screen. Option Menu – Select this to return to the Option menu to quickly access frequently changed items. Config – This will select the Config menu to make changes to the operation of the ELF Informer. Tonka Products, LLC...
-
Page 10: Battery Screen
Option Menu – Select this to return to the Option menu to quickly access frequently changed items. Config – This will select the Config menu to make changes to the operation of the ELF Informer. The minimum battery voltage is the voltage when the battery pack will automatically shut itself down to prevent damage to the battery pack. - Page 11 Main Screen – Press this to return to the Main screen. Option Menu – Select this to return to the Option menu to quickly access frequently changed items. Config – This will select the Config menu to make changes to the operation of the ELF Informer. Tonka Products, LLC...
- Page 12 Main Screen – Press this to return to the Main screen. Option Menu – Select this to return to the Option menu to quickly access frequently changed items. Config – This will select the Config menu to make changes to the operation of the ELF Informer. Tonka Products, LLC...
- Page 13 Main Screen – Press this to return to the Main screen. Option Menu – Select this to return to the Option menu to quickly access frequently changed items. Config – This will select the Config menu to make changes to the operation of the ELF Informer. Tonka Products, LLC...
- Page 14 Main Screen – Press this to return to the Main screen. Option Menu – Select this to return to the Option menu to quickly access frequently changed items. Config – This will select the Config menu to make changes to the operation of the ELF Informer. Tonka Products, LLC...
- Page 15 Main Screen – Press this to return to the Main screen. Option Menu – Select this to return to the Option menu to quickly access frequently changed items. Config – This will select the Config menu to make changes to the operation of the ELF Informer. Tonka Products, LLC...
- Page 16 Main Screen – Press this to return to the Main screen. Option Menu – Select this to return to the Option menu to quickly access frequently changed items. Config – This will select the Config menu to make changes to the operation of the ELF Informer. Tonka Products, LLC...
-
Page 17: Programming Screen
USB connector. The ELF Informer must be off when the USB flash drive is inserted. Power on the ELF Informer and the above screen will appear. Do not remove the flash drive or turn off the ELF Informer while the message above is displayed. - Page 18 ELF Informer Programming Complete Screen Once the programming has been completed the above screen will appear. The ELF Informer can now be powered down. After the power has been removed the flash drive can be removed. Tonka Products, LLC Rev 1.1...
-
Page 19: Warranty
ELF Informer Specifications: The ELF Informer is NOT water resistant or water proof. Do not allow the ELF Informer to get wet. Operating Temperature Range: 10°F – 110°F At temperatures below 45°F the display will respond slower. This is normal and does not effect the operation of the ELF Informer Power Input Voltage Range: 14 VDC –...
