Table of contents Notice to user ...................1 Online documentation..............1 Support .................. 1 About this manual ..............1 Declaration of conformity ............1 Safety information ................2 Camera parts ..................4 Quick start guide ................5 Handling the camera ................6 General information..............6 Charging the battery .............. -
Page 3: Notice To User
1.1 Online documentation Our manuals are continuously updated and published online. To access the FLIR ONE Edge series user manual and other product documentation, go https://support.flir.com/resources/99yx. To access the manuals for our other products, as well as manuals for our discontinued products, go to https://support.flir.com/resources/app. -
Page 4: Safety Information
Safety information WARNING Applicability: Class B digital devices. This equipment has been tested and found to comply with the limits for a Class B digital device, pur- suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 5 Safety information CAUTION Do not apply solvents or equivalent liquids to the camera, the cables, or other items. Damage to the camera and injury to persons can occur. CAUTION Be careful when you clean the infrared lens. The lens has an anti-reflective coating which is easily dam- aged.
-
Page 6: Camera Parts

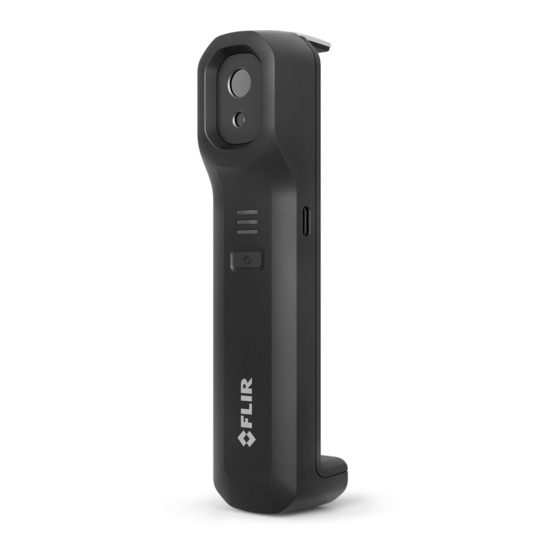

Camera parts Figure 3.1 View from the front and from the bottom 1. On/Off button 2. Indicator LEDs 3. USB-C charging port 4. Visual camera 5. Thermal camera 6. Extending arm #T810603; r. AC/88067/88067; en-US... -
Page 7: Quick Start Guide
Quick start guide 1. Install the FLIR ONE app, developed by FLIR Systems, from your preferred app store. 2. Attach the FLIR ONE Edge camera to the back of your mobile device by pulling out the extending arm until the camera is clamped around the device. As an alternative, place the FLIR ONE Edge camera close to your mobile device. -
Page 8: Handling The Camera
Handling the camera 5.1 General information • When the FLIR ONE Edge camera is connected to your mobile device, it may have impact on the signal strength, compass accuracy, and NFC signaling distance of the device. • When the FLIR ONE app is paired with the FLIR ONE Edge camera, the mobile de- vice can only connect to the internet via mobile data (not via Wi-Fi). -
Page 9: Performing A Factory Reset
Handling the camera 5.5 Performing a factory reset If you have forgotten the camera password, you need to perform a factory reset. A reset can also be performed if the camera is not working as expected, for example due to per- sistent connection problems. -
Page 10: Using The Flir One App
Using the FLIR ONE app 6.1 Camera view When the FLIR ONE Edge camera is connected to the FLIR ONE app, you can see the live view from the camera and take an image or record a video. The camera view contains functionality to modify the live view: •... -
Page 11: Drawer Menu
Using the FLIR ONE app 6.5 Drawer menu In the drawer menu you find: • Settings and account information related to FLIR Ignite. • Information related to the camera. • Settings for the FLIR ONE app. • Help on how to use the app. •... -
Page 12: Using A Thermal Camera
Using a thermal camera 7.1 Measurements Measurements in thermal cameras show the temperature on the surface of an object. The measurement accuracy depends on many factors, including the distance from the object, the ambient temperature, and the emissivity of the material being observed. Users are encouraged to learn more about the science of thermography from https://www.flir.com/support-center/training. -
Page 13: Cleaning The Camera
Cleaning the camera 8.1 Camera housing, cables, and other items Use one of these liquids: • Warm water • A weak detergent solution Equipment: • A soft cloth Follow this procedure: 1. Soak the cloth in the liquid. 2. Twist the cloth to remove excess liquid. 3. -
Page 14: Disposal Of Electronic Waste
Disposal of electronic waste Waste of Electrical and Electronic Equipment (WEEE) poses a risk to human health and the environment when not disposed of properly. This product should not be discarded as unsorted waste but must be sent to separate collection facilities for recovery and recy- cling. -
Page 15: Disclaimers
Disclaimers 10.1 Legal disclaimer For warranty terms, refer to https://www.flir.com/warranty. 10.2 U.S. Government Regulations This product may be subject to U.S. Export Regulations. Send any inquiries to export- questions@flir.com. 10.3 Patents This product is protected by patents, design patents, patents pending, or design patents pending. - Page 16 last page Website http://www.flir.com Customer support http://support.flir.com Copyright © 2022, FLIR Systems, Inc. All rights reserved worldwide. Disclaimer Specifications subject to change without further notice. Models and accessories subject to regional market considerations. License procedures may apply. Products described herein may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions. Ihr Ansprechpartner / dataTec AG Your Partner:...
