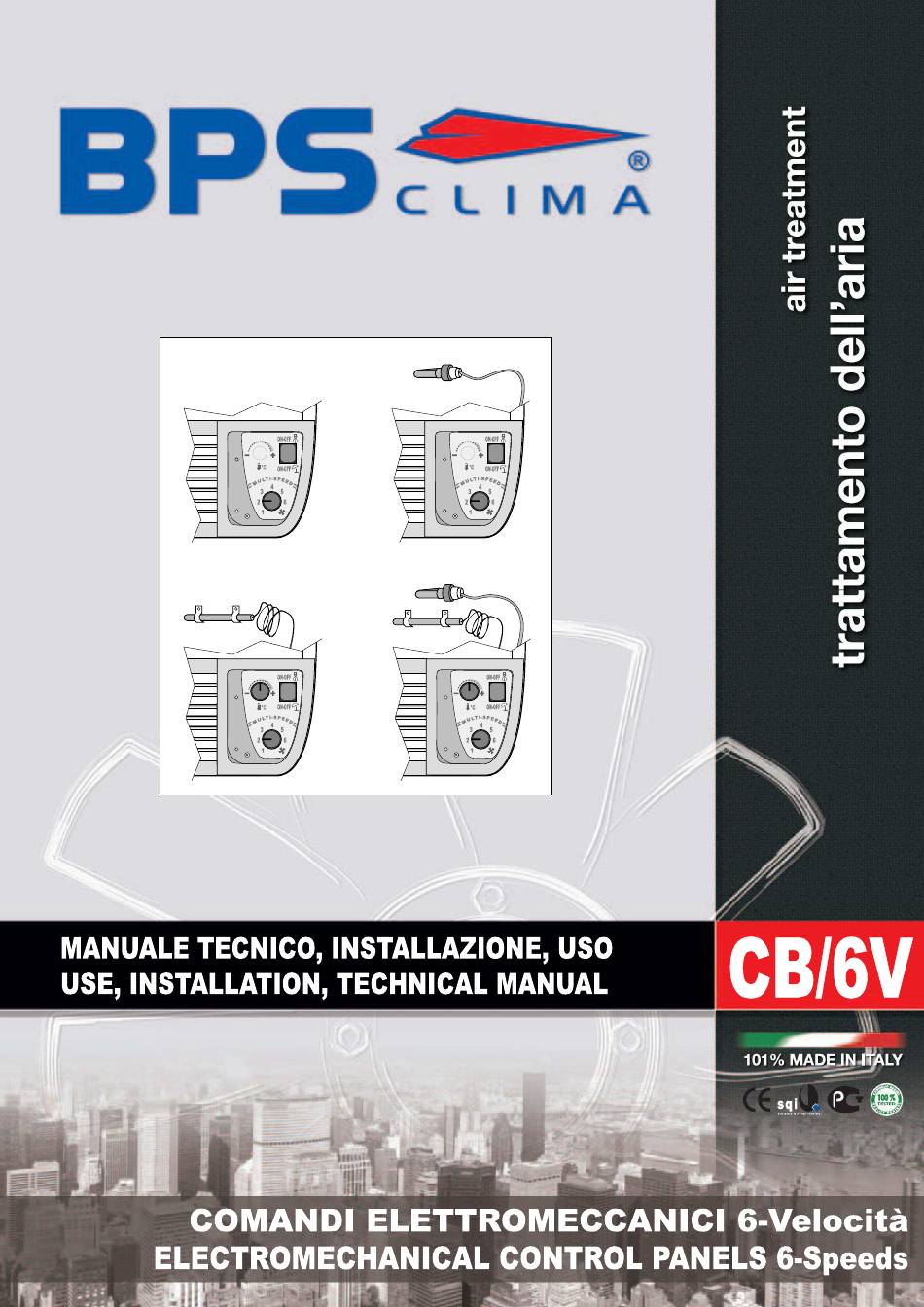

BPS CLIMA CB/6V Technical Manual

Electromechanical control panels 6-speeds
Hide thumbs

Advertisement

Quick Links

Download this manual
MT-CB_6V/08/1911-R00

Advertisement

loading
Need help?

Need help?

Do you have a question about the CB/6V and is the answer not in the manual?

Questions and answers

Summary of Contents for BPS CLIMA CB/6V

  • Page 1 MT-CB_6V/08/1911-R00...

  • Page 2: Componenti Forniti

    CB/6V Manuale tecnico – Technical manual Code: MT-CB_6V/08/1911-R00 Page 1/3 COMPONENTI FORNITI Quadro comando (a seconda del modello ordinato: CB11, CB12, CB13, CB14) A+B+C 3 viti (A+B+C) per fissaggio staffa comando sull’unità 2 Clip (D+E) per fissaggio sensore temperatura sull’unità (solo per i CB13-CB14)
  • Page 3 CB/6V Manuale tecnico – Technical manual Code: MT-CB_6V/08/1911-R00 Page 2/3 FUNZIONAMENTO OFF – SPENTO OPERATING IN OFF MODE Posizionare il doppio deviatore (D) sulla posizione “0” (centrale) per avere Position the double switch (D) on the position “0” (central) in order to have l’unità...
  • Page 4 CB/6V Manuale tecnico – Technical manual Code: MT-CB_6V/08/1911-R00 Page 3/3 FUNZIONAMENTO OFF – SPENTO OPERATING IN OFF MODE Posizionare il doppio deviatore (D) sulla posizione “0” (centrale) per avere Position the double switch (D) on the position “0” (central) in order to have l’unità...
  • Page 5 Page 1/1 Ref.: 1x MVC-AUTR6-6V-230V Schema elettrico interno - Internal wiring diagram Allegati – Attachments: / Code: CB11-A001-80021131-R00 Schema elettrico N° – N° Wiring diagram CB11 (standard/base) CB11-A001 DISPOSITIVI A CORREDO DELL’UNITÁ - EQUIPMENTS INCLUDED ON THE UNIT DISPOSITIVI E MONTAGGIO A CURA DELL’INSTALLATORE EQUIPMENTS TO BE INSTALLED BY THE INSTALLER...
  • Page 6 Page 1/1 Ref.: 1x MVC-AUTR6-6V-230V Schema elettrico interno - Internal wiring diagram Allegati – Attachments: A2 Code: CB11-A002-31026050-R00 Schema elettrico N° – N° Wiring diagram CB11 + EV-CF-230V CB11-A002 DISPOSITIVI A CORREDO DELL’UNITÁ - EQUIPMENTS INCLUDED ON THE UNIT DISPOSITIVI E MONTAGGIO A CURA DELL’INSTALLATORE EQUIPMENTS TO BE INSTALLED BY THE INSTALLER...
  • Page 7 Page 1/1 Ref.: 1x MVC-AUTR6-6V-230V Schema elettrico interno - Internal wiring diagram Allegati – Attachments: / Code: CB12-A001-90022040-R00 Schema elettrico N° – N° Wiring diagram CB12;TM (standard/base) CB12-A001 DISPOSITIVI E MONTAGGIO DISPOSITIVI A CORREDO DELL’UNITÁ - EQUIPMENTS INCLUDED ON THE UNIT A CURA DELL’INSTALLATORE EQUIPMENTS TO BE INSTALLED BY THE INSTALLER...
  • Page 8 Page 1/1 Ref.: 1x MVC-AUTR6-6V-230V Schema elettrico interno - Internal wiring diagram Allegati – Attachments: / Code: CB13-A001-80022050-R00 Schema elettrico N° – N° Wiring diagram CB13;TA (standard/base) CB13-A001 DISPOSITIVI E MONTAGGIO DISPOSITIVI A CORREDO DELL’UNITÁ - EQUIPMENTS INCLUDED ON THE UNIT A CURA DELL’INSTALLATORE EQUIPMENTS TO BE INSTALLED BY THE INSTALLER...
  • Page 9 Page 1/1 Ref.: 1x MVC-AUTR6-6V-230V Schema elettrico interno - Internal wiring diagram Allegati – Attachments: A2 Code: CB13-A002-90021130-R00 Schema elettrico N° – N° Wiring diagram CB13;TA + EV-CF-230V CB13-A002 DISPOSITIVI E MONTAGGIO DISPOSITIVI A CORREDO DELL’UNITÁ - EQUIPMENTS INCLUDED ON THE UNIT A CURA DELL’INSTALLATORE EQUIPMENTS TO BE INSTALLED BY THE INSTALLER...
  • Page 10 Page 1/1 Ref.: 1x MVC-AUTR6-6V-230V Schema elettrico interno - Internal wiring diagram Allegati – Attachments: A2 Code: CB13-A003-31026031-R00 Schema elettrico N° – N° Wiring diagram CB13;TA + TDV + EV-CF-230V CB13-A003 DISPOSITIVI E MONTAGGIO DISPOSITIVI A CORREDO DELL’UNITÁ - EQUIPMENTS INCLUDED ON THE UNIT A CURA DELL’INSTALLATORE EQUIPMENTS TO BE INSTALLED BY THE INSTALLER...
  • Page 11 Page 1/1 Ref.: 1x MVC-AUTR6-6V-230V Schema elettrico interno - Internal wiring diagram Allegati – Attachments: A2 Code: CB13-A004-31026031-R00 Schema elettrico N° – N° Wiring diagram CB13;TA + EV-F-230V + EV-C-230V CB13-A004 DISPOSITIVI E MONTAGGIO DISPOSITIVI A CORREDO DELL’UNITÁ - EQUIPMENTS INCLUDED ON THE UNIT A CURA DELL’INSTALLATORE EQUIPMENTS TO BE INSTALLED BY THE INSTALLER...
  • Page 12 Page 1/1 Ref.: 1x MVC-AUTR6-6V-230V Schema elettrico interno - Internal wiring diagram Allegati – Attachments: / Code: CB14-A001-80020182-R00 Schema elettrico N° – N° Wiring diagram CB14;TA;TM (standard/base) CB14-A001 DISPOSITIVI E MONTAGGIO DISPOSITIVI A CORREDO DELL’UNITÁ - EQUIPMENTS INCLUDED ON THE UNIT A CURA DELL’INSTALLATORE EQUIPMENTS TO BE INSTALLED BY THE INSTALLER...
  • Page 13 Page 1/1 Ref.: 1x MVC-AUTR6-6V-230V Schema elettrico interno - Internal wiring diagram Allegati – Attachments: A2 Code: CB14-A002-80020182-R00 Schema elettrico N° – N° Wiring diagram CB14;TA;TM + EV-CF-230V CB14-A002 Alimentazione elettrica 230V – 1Ph – 50Hz Power supply DISPOSITIVI A CORREDO DELL’UNITÁ - EQUIPMENTS INCLUDED ON THE UNIT DISPOSITIVI E MONTAGGIO A CURA DELL’INSTALLATORE AUTR...
  • Page 14 Page 1/1 Ref.: 1x MVC-AUTR6-6V-230V Schema elettrico interno - Internal wiring diagram Allegati – Attachments: A2 Code: CB14-A003-80020182-R00 Schema elettrico N° – N° Wiring diagram CB14;TA;TM + EV-F-230V + EV-C-230V CB14-A003 Alimentazione elettrica 230V – 1Ph – 50Hz Power supply DISPOSITIVI A CORREDO DELL’UNITÁ...
