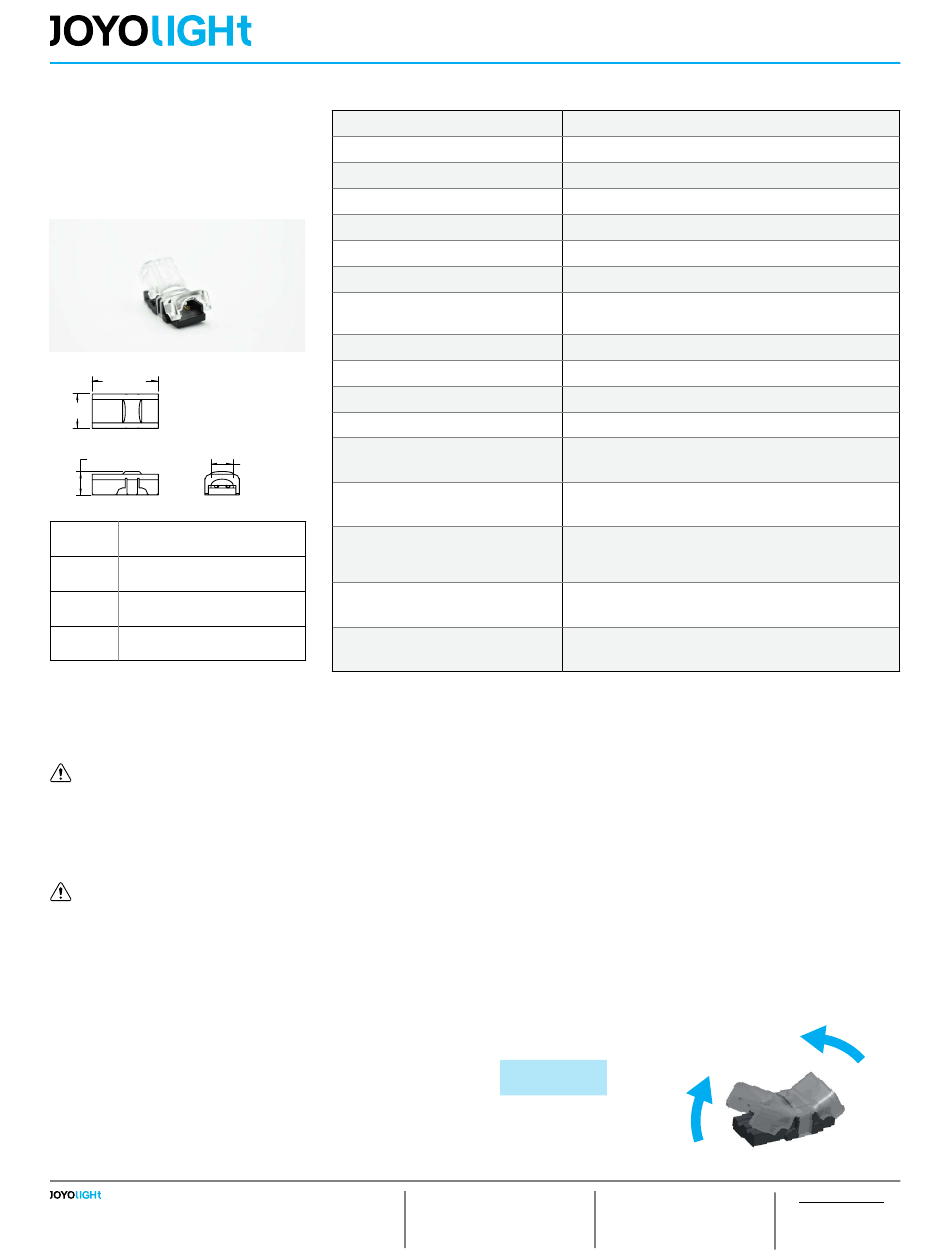

Joyolight LC2P-IP55 Installation Manual

LC2P-IP55
Connect LED strip and 2-Pin Cable.
24mm
12.5mm
8.5mm
Project
Qty
Date
Client
INSTALLATION GUIDE
WARNING
Failure to comply with the following installation instructions may result in death or serious injury.
• This product must be installed by a professional familiar with the construction and operation of the product and the hazards involved, in
accordance with applicable national and local electrical and construction codes.
• To avoid electrical shock, make sure to disconnect power before install or service.
• Do not use parts that are damaged.
CAUTION
• If received with missing or damaged parts, please contact Joyolight
at 647-496-8107 (CA) or 1-877-849-1942 (US).
• Handle with care throughout the installation in case of damages.
• Unauthorized field repairs will void warranty.
STEP 1:
Lift up the transparent plastic covers up to 90 degrees.
Joyolight reserves the rights change our products and specifications
at anytime without prior notice and such modification shall be effective
immediately. Contact Joyolight for the latest product information.
Rated current
Rated voltage
Number of contacts
Contact pitch
Color
Contact surface
Shell material
Contact sheet
Contact sheet surface treatment
Working environment
Temperature resistance
Flame retardant rating
Suitable wire
8mm
Suitable wire diameter
(including insulating layer)
Applicable lamp strip specifications
Flexible light strip with flexible PCB
process
IP Grade
5A
0-36V
2
3.6 mm
Black & Transparent
Cu
Polycarbonate
Environmental protection hardware material high
precision copper
Environmental protection and anti-corrosion treatment
-20°C~50°C
Shell 105°C
UL-94-V0
Stranded cable AWG22~AWG18
(0.35 mm²~0.75 mm² )
Φ1.5 mm ~ Φ 2.1mm
"8 mm width, bare board light strip & glue (silicone
material) light strip, monochrome.
lamp beads is 30~120 / m"
"Electroplating plate (not suitable for hard plate)
Thickness is 0.25mm~0.35mm"
"IP55
Can be used for glue strips (silicone technology)"
LC2P-IP55
Five-year warranty
Contact us for complete terms
and conditions.
SPEC 2019-01
LC2P-IP55
The number of
JOYOLIGHT GROUP INC.
#12, 5200 Dixie road
Mississauga, ON, L4W 1E4
www.joyolight.ca
info@joyolight.com
1-877-849-1942 (US)
647-496-8107 (CA)
