CAB-CAM 6
PAN-CAM User Manual
www.choochoovision.com
1
Released 12/15/2021

Advertisement

loading
Need help?

Need help?

Do you have a question about the PAN-CAM and is the answer not in the manual?

Questions and answers

Summary of Contents for Choo Choo Vision PAN-CAM

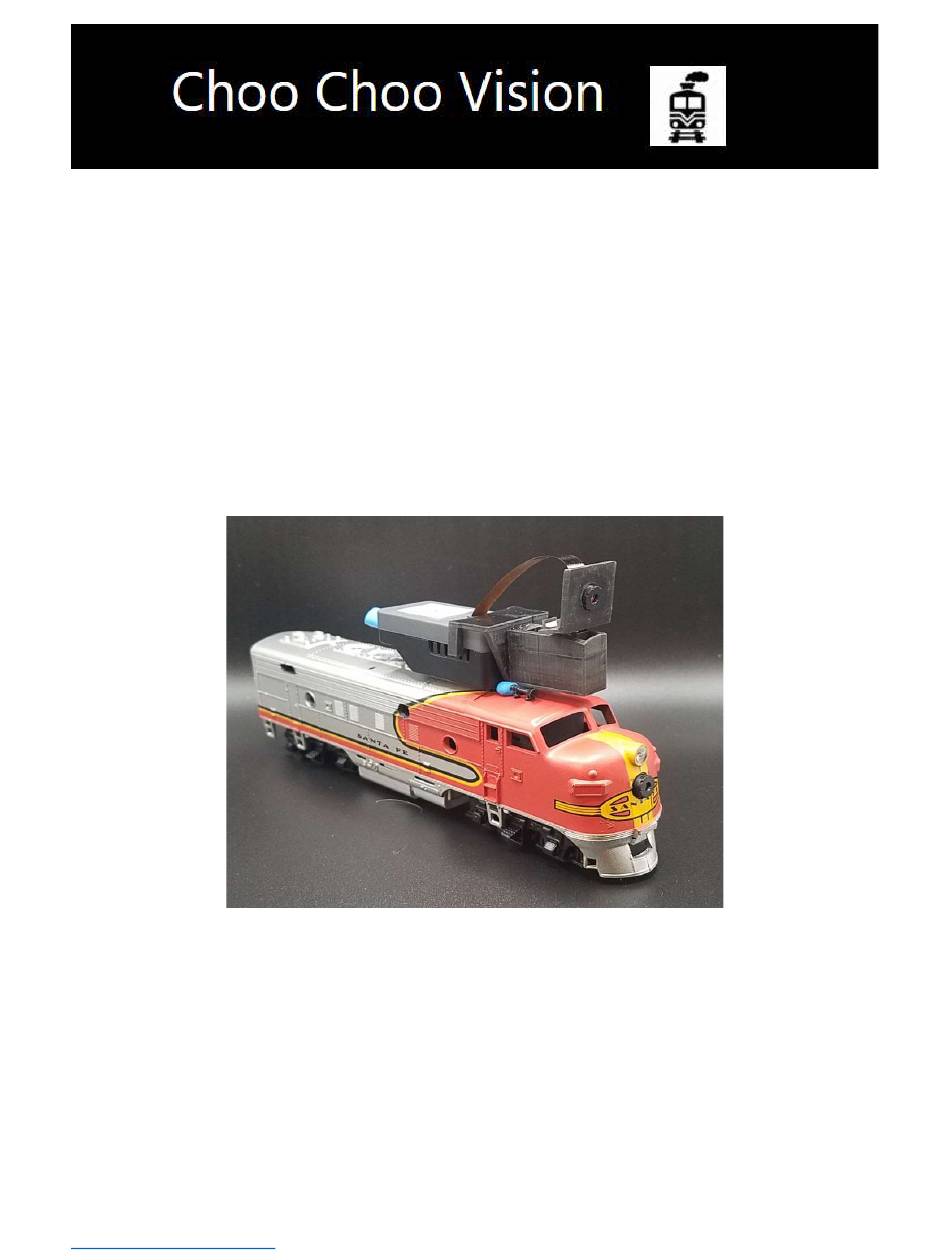

  • Page 1 CAB-CAM 6 PAN-CAM User Manual www.choochoovision.com Released 12/15/2021...

  • Page 2: Table Of Contents

    Congratulations! You have purchased a unique technological advancement for Model Railroading that immerses you into the world of your layout. The PAN-CAM accessory allows you to rotate the view of your CCV Camera. It easily attaches to CCV Trackside and CAB-CAMs...

  • Page 3: Using Your Choo Choo Vision Camera

    Using your Choo Choo Vision Camera: Menus: The Choo Choo Vision cameras is controlled by two menu screens, the Main User Screen, and an Admin Screen. The Choo Choo Vision Admin screen allows you to manage camera settings and control what types of controls are displayed on the User Screen.

  • Page 4: Admin Screen

    Admin Screen The Choo Choo Vision Admin screen allows you to manage camera settings and control what types of controls are displayed on the Main User Screen. Accessing the Choo Choo Vision Admin Screen To access the Admin Screen: ...
  • Page 5 Servo instead of the default PAN-CAM nano servo. Video Settings  Display Video Settings: Displays additional video image controls on the Choo Choo Vision User Screen (AEC Sensor, ASP, AE Level, etc)  Enable Video Stream and Photo: IMPORTANT: This setting enables / disables the video and photo capabilities on the main page.

  • Page 6: User Screen Controls And Operation

    The User Screen is the primary screen for controlling the camera. The Choo Choo Vision user screen allows you to view the video feed, take still images, and manage camera settings. This page also is remotely viewable via the internet (with firewall port forwarding enabled on your router).
  • Page 7 Choo Choo Vision User Screen Camera Main User Screen Controls The Choo Choo Vision Main User Screen contains controls for adjusting camera settings, open a JMRI throttle, run the PAN-CAM and start/stop the video feed, and take still images. Adjusting Camera Image Settings ...
  • Page 8  WiFi Meter: Displays the strength of the WiFi signal received by the camera. The WiFi Meter can help you identify areas on your layout with poor WiFi coverage.  Video Stream URL: Displays the raw video feed without the control panel. Enter the IP address into a web browser to view the camera control screen and display the video.

  • Page 9: Connecting Your Pan-Cam Accessory

    Attach the PAN-CAM unit to the front of the camera body. o Slide the PAN-CAM accessory it touches the end of the camera. o Ensure the clips on the PAN-CAM accessory are seated to the camera body.  Plug the PAN-CAM accessory into the camera: o Locate the wires and connector plug on the PAN-CAM accessory.
  • Page 10 Insert PAN-CAM plug into the white connector on the back of the camera Insert lens into mounting hole www.choochoovision.com Released 12/15/2021...

  • Page 11: Product Support

    Once you have set the appropriate angle, you can secure the servo to the PAN-CAM body using blue mounting putty. If you decide to use the PAN-CAM for trackside viewing or railfanning, you can adjust the position of the servo to an appropriate angle.
