ATS1190 and ATS1192 Smart Card Readers

Installation Sheet

EN DA DE ES

ATS1190

(1)

(2)

Cable

Red

12V

12V 12V

Black

D−

Green

White

D+

—

Yellow

—

Brown

—

Blue

—

Violet

NL NO PL PT SV

ATS1192

Door 1, 2, 3, 4

Comms

12V

D−

D+

—

With 4K7 (in series)

—

to Alarm Input 3

EN: Installation Sheet

Introduction

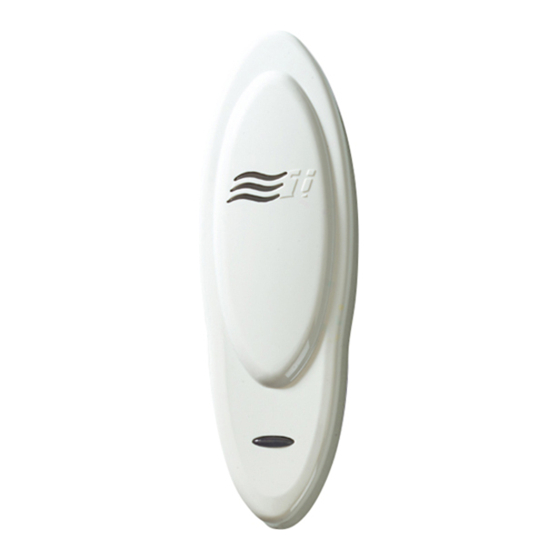

The ATS1190/1192 Smart Card Reader is a multifunction, all-

purpose proximity card reader suitable for all locations

requiring a short-range reader. The reader can be connected

directly to the ATS Control Panel (see figure 2). It is

configurable through a Menu system accessible via the BUS or

by Configuration cards programmed through Titan and the

Smart Card Programmer (ATS1621/22) or the ATS1481

Programming card.

The reader operates from 9 to 14 VDC. It has a quiescent

current consumption of less than 25 mA and less than 80 mA

when reading a card. The ATS1190 is supplied standard with

a white removable dress cover, which can be interchanged

with one of four other colours available.

The ATS1192 is a heavy-duty version designed for standard

door frames.

Both the ATS1190 and ATS1192 are waterproof.

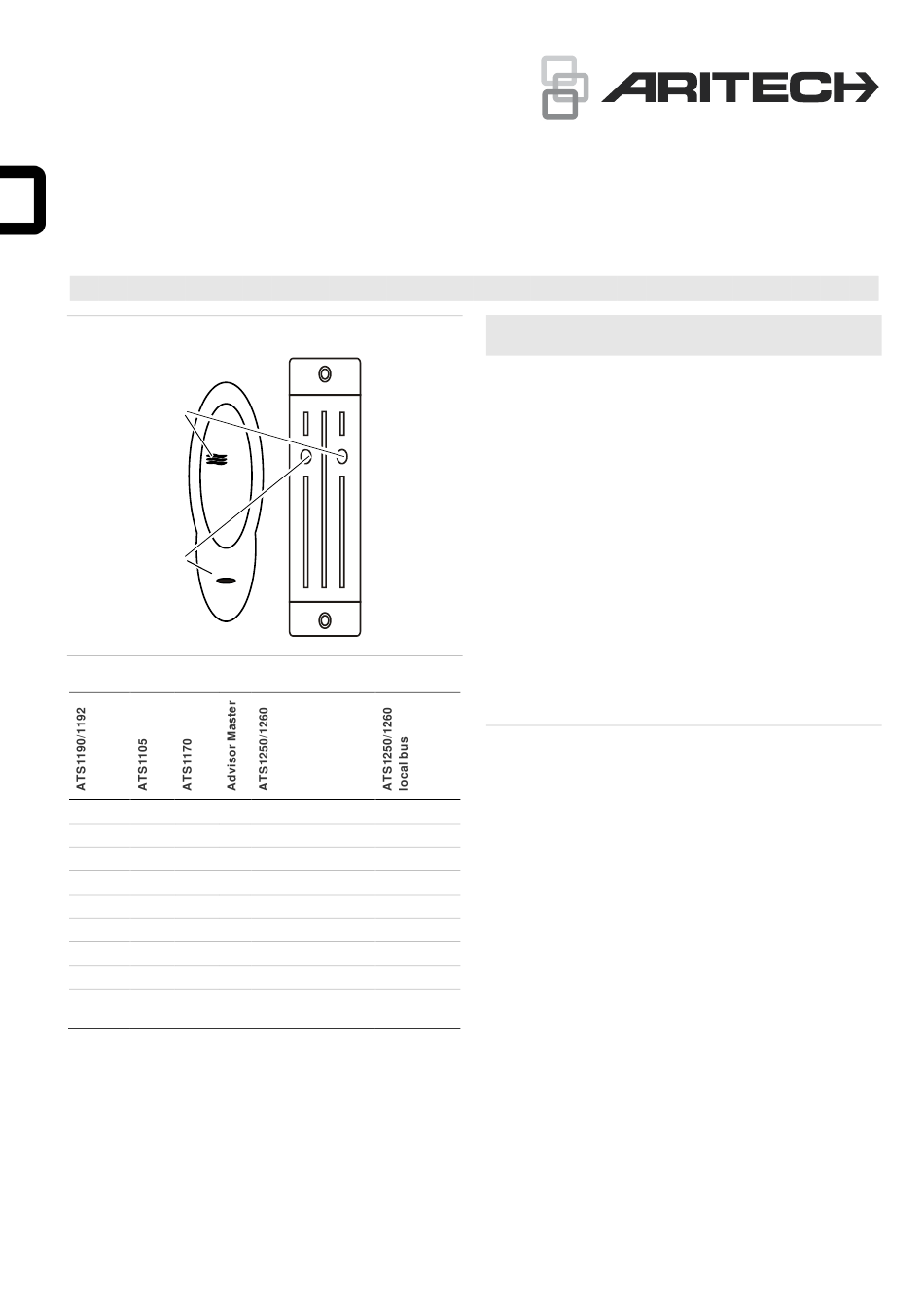

Figure 1

(1) Blue LED:

Door open

Disarmed

Mounting

The reader can be mounted on any flat surface by two pan

head screws, 3.0 to 3.5 mm diameter, located under the dress

cover. A slightly reduced range will be experienced when

mounted on metal surfaces. If mounting in an outdoor

environment, ensure that the blue LED is at the top.

It is not recommended to use countersunk screws.

For the ATS1190 the dress cover can be removed to expose

the mounting screw by gently prizing the sides away from the

main body to release the retaining clips and gently pulling on

the connection cord. Do not use excessive force or the reader

can be irreparably damaged.

After mounting, gently press the cover over the main body until

it locks into place.

RAS addressing

The address of the reader for BUS operations is set to the

default address RAS 16. Using a configuration card or

P/N MAINST-ATS1190 • REV E • ISS 14DEC20

1 / 22

(2) Red LED:

Door open

Armed
