TM 9-N
SAFETY TRIPOD
EN 795/B
TS 16415/B
Notified body which supervises the production of the equipment
APAVE SUDEUROPE SAS - BP 193 - 13322 MARSEILLE
CEDEX 16 - FRANCE

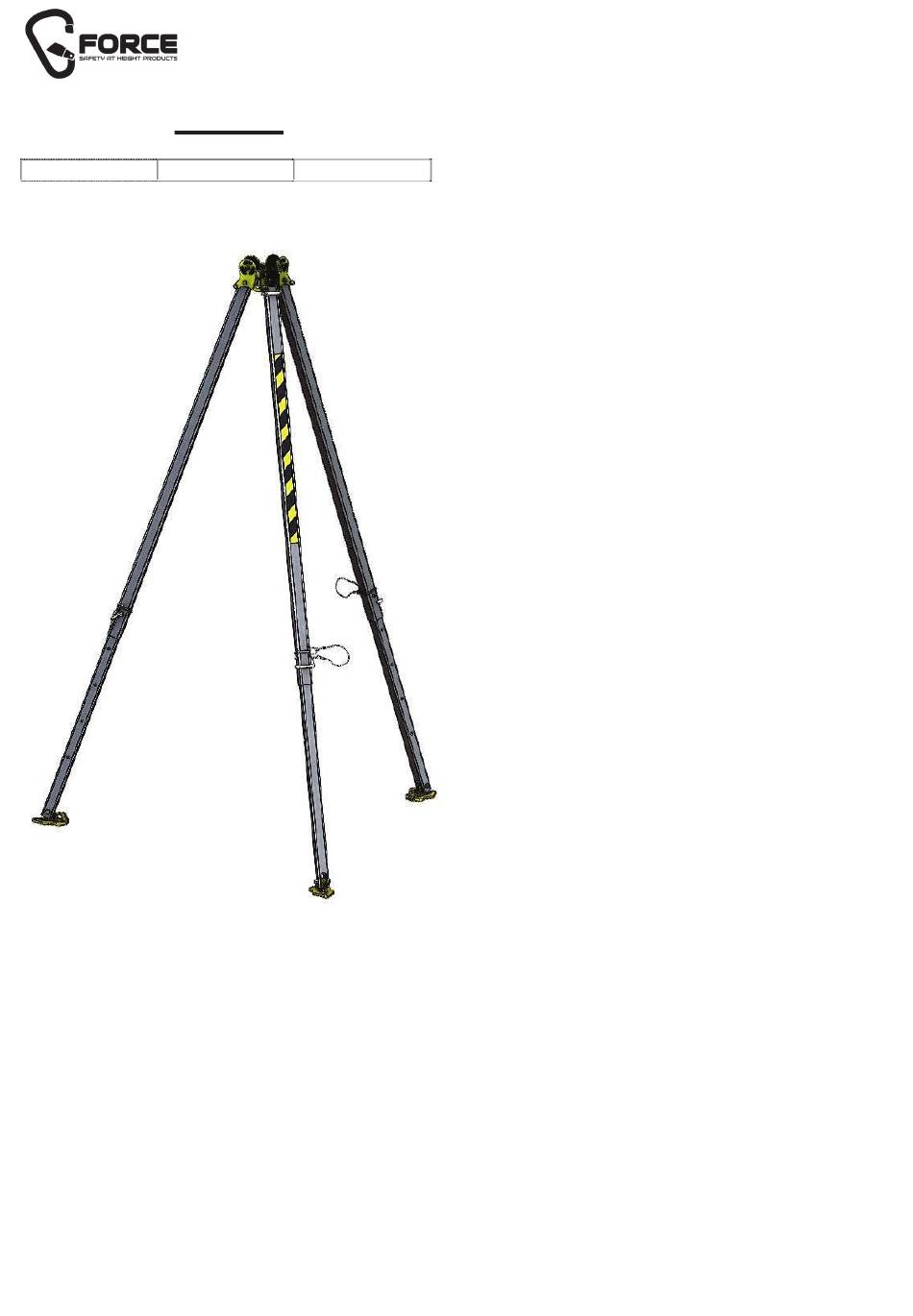

Figure 1 - General view of device
USE AND INSTALLATION MANUAL

TABLE OF CONTENTS:

1.
GENERAL DESCRIPTION .......................................... 2
2.
LOAD LIMIT AND STRENGTH .................................... 2
3.
TRANSPORT AND WEIGHT ....................................... 3
4.
MAINTENANCE AND STORAGE ................................ 3
5.
GENERAL DIMENSIONS ............................................ 4
6.
TIME OF USAGE ......................................................... 5
7.
PERIODIC INSPECTIONS .......................................... 5
8.
MARKING OF DEVICE ................................................ 5
9.
INSTALLATION OF TRIPOD ....................................... 6
10.
INSTALLED ON TRIPOD LEG ............................................. 7
11.
EQUIPMENT
12.
(AT017-300) ......................................................................... 7
13.
14.
15.
WARRANTY ................................................................ 9
16.
IDENTITY CARD ....................................................... 10
edition: 1/05.10.2020
HOLDER
....................... 8
............... 7
UTB
7
Page 1 of 10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TM 9-N and is the answer not in the manual?

Questions and answers

Summary of Contents for G-Force TM 9-N

  • Page 1: Table Of Contents

    USE AND INSTALLATION MANUAL edition: 1/05.10.2020 TABLE OF CONTENTS: TM 9-N GENERAL DESCRIPTION .......... 2 SAFETY TRIPOD LOAD LIMIT AND STRENGTH ........2 EN 795/B TS 16415/B Notified body which supervises the production of the equipment TRANSPORT AND WEIGHT ........3 APAVE SUDEUROPE SAS - BP 193 - 13322 MARSEILLE CEDEX 16 –...

  • Page 2: General Description

    USE AND INSTALLATION MANUAL edition: 1/05.10.2020 FOR PERSONAL PROTECTIVE EQUIPMENT (PPE) mounted to anchor points located on the head: GENERAL DESCRIPTION Maximum 3 users at the same time. Whereas one user is Safety tripod TM9-N is an anchor point compliant with connected to one anchor point.

  • Page 3: Transport And Weight

    USE AND INSTALLATION MANUAL edition: 1/05.10.2020 TRANSPORT AND WEIGHT Weight of complete device: 15.45kg. Personal fall protection equipment must be transported in a package (e.g.: bag made of moisture-proof textile or foil bag or cases made of steel or plastic) to protect it against damage or moisture MAINTENANCE AND STORAGE Personal protective equipment should be cleaned without...

  • Page 4: General Dimensions

    USE AND INSTALLATION MANUAL edition: 1/05.10.2020 GENERAL DIMENSIONS Figure 4 – General dimensions of device – front view Figure 5 – General dimensions of device – bottom view Page 4 of 10...

  • Page 5: Time Of Usage

    USE AND INSTALLATION MANUAL edition: 1/05.10.2020 TIME OF USAGE Maximum time of usage of correctly operating devices is unlimited. The device must be withdrawn from use immediately and destroyed if it has been used to arrest a fall or there are any doubts concerning its function.

  • Page 6: Installation Of Tripod

    USE AND INSTALLATION MANUAL edition: 1/05.10.2020 INSTALLATION OF TRIPOD Tripod TM9-N can be installed by one person. Place the tripod vertically in the lowest position on a level, stable and hard surface. The legs should be turned outside to their maximum. Make sure that feet are placed on a hard surface and can bear the load.

  • Page 7: Installation Of Work Rope Of Device Installed On Tripod Leg

    USE AND INSTALLATION MANUAL edition: 1/05.10.2020 Secure tripod legs against accidental moving apart with a chain. Chain ends must be connected with a carabiner. The chain should be well tensioned between tripod legs. If necessary remove any excess clearance. Instead of chain, special strip (delivered with tripod) can be used.

  • Page 8: Essential Principles For Use Of Personal Fall Protection Equipment

    USE AND INSTALLATION MANUAL edition: 1/05.10.2020 14. ESSENTIAL PRINCIPLES FOR USE OF in connectors (snap hooks): load-bearing body, rivets, main pawl, locking mechanism functionality. PERSONAL FALL PROTECTION EQUIPMENT at least once a year, after each 12 months of use, Anchor point AT150 must be used in accordance with personal fall protection...

  • Page 9: Warranty

    USE AND INSTALLATION MANUAL edition: 1/05.10.2020 in full body harness use only attachment points (buckles, loops) marked with capital letter “A” to attach a fall protection system. 15. WARRANTY The manufacturer grants a warranty for 12 months from the date of purchase of the device. If a defect is found in any part, the warranty and guarantee period for this part is extended by the time of repairs and effective removal of the defect found.

  • Page 10: Identity Card

    USE AND INSTALLATION MANUAL edition: 1/05.10.2020 16. IDENTITY CARD IDENTITY CARD………….. ( in accordance with EN365 ) Reference number of TM 9-N (ref. AT011-N) ………………………. Serial number: device Date of first use ( installation ) …………………. Date of manufacture: ………………………..
