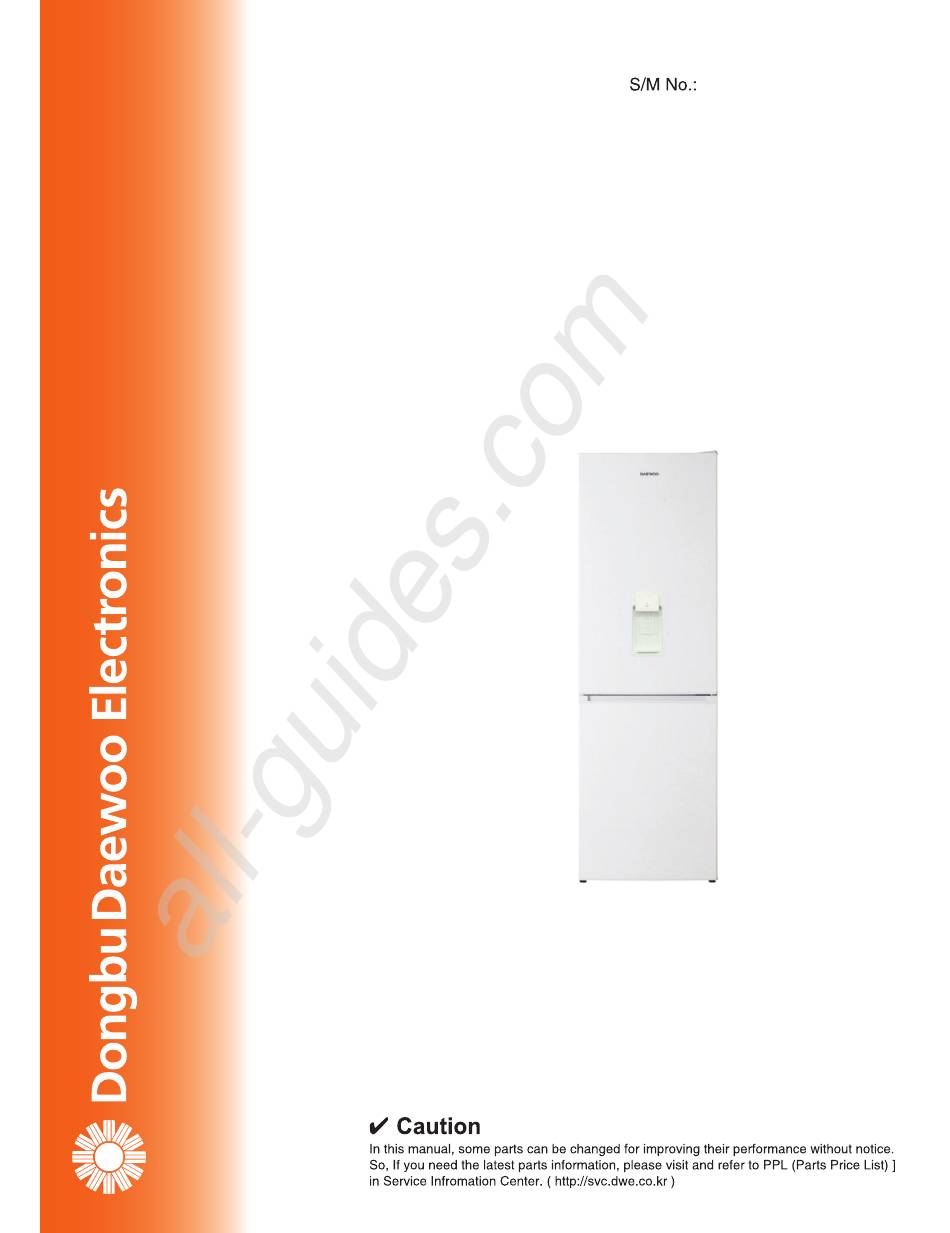

Service Manual
~ Ballista Dispenser ~
RFP301DCP8
F/Model : FRP-301D..
B/Model: RF-331D..
RN-331D..
● Notice )
RF : R-134a (Refrigerant)
RN : R-600a (Refrigerant)
Ver. 1.0
Dec. 2014.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRP-301D Series and is the answer not in the manual?

Questions and answers

Related Manuals for DONGBU DAEWOO ELECTRONICS FRP-301D Series

Summary of Contents for DONGBU DAEWOO ELECTRONICS FRP-301D Series

  • Page 1 All manuals and user guides at all-guides.com RFP301DCP8 Service Manual ~ Ballista Dispenser ~ F/Model : FRP-301D.. B/Model: RF-331D.. RN-331D.. ● Notice ) RF : R-134a (Refrigerant) RN : R-600a (Refrigerant) Ver. 1.0 Dec. 2014.

  • Page 2: Warnings And Precautions For Safety

    All manuals and user guides at all-guides.com WARNINGS AND PRECAUTIONS FOR SAFETY Please observe the following safety precautions in order to use safely and correctly the refrigerator and to prevent accident and danger during repair. 1. Be care of an electric shock. Disconnect power cord from wall outlet and wait for more than three minutes before replacing PCB parts.

  • Page 3: Specifications

    All manuals and user guides at all-guides.com 1. SPECIFICATIONS 1-1. Model Information * is the Door Type Buyer No. RN-33*D Factory No. RFP-30*D*P8N Total Gross Vol. ISO 15502 Freezer (unit: L) Refrigerator Total Storage Vol. ISO 15502 Freezer (unit: L) Refrigerator Net Width (Packing) 595(634)
  • Page 4 All manuals and user guides at all-guides.com 1. SPECIFICATIONS 1-2. Interior Parts 8. Refrigerator Pocket "J" 1. Refrigerator Shelves 9. Freezer Shelves 2. Lamp Window 10. Freezer Case "A" 3. Multi Duct 11. Freezer Case "B" 4. Knob R Control 12.
  • Page 5 All manuals and user guides at all-guides.com 1. SPECIFICATIONS 1-3. Machine (Compressor) Compartment View - Features are model dependent 8. Suction Pipe As 1.Box Power As (Capacitor Run) 9. Dryer As 2. Power Cord 10. Case vaporization As 3. Switch P Relay As 11.Pipe connector A 4.
  • Page 6 All manuals and user guides at all-guides.com 1. SPECIFICATIONS 1-4. Refrigerant Cycle Suction Pipe ⑦ Evaporator ⑥ ⑧ ③ ② ④ ① Compressor Pipe connector A Dryer ⑤ - Welding Point Copper Welding ( Ag 5%) 5 Point Silver Welding ( Ag 30%) 3 Point...
  • Page 7 All manuals and user guides at all-guides.com 1. SPECIFICATIONS 1-5. Temperature Diagram Refrigerator Dial Mode MIN: 5 ~ 8℃ MID: 2 ~ 5℃ MAX: -1 ~ 2℃ Vegetable compartment : 1 ~ 5℃ Freezer Mode LOW: -17 ~ -19℃ MID: -19 ~ -22℃ HIGH: -22 ~ -25℃...
  • Page 8 All manuals and user guides at all-guides.com 1. SPECIFICATIONS 1-6. Wiring Diagram...
  • Page 9 All manuals and user guides at all-guides.com 1. SPECIFICATIONS 1.7. Main PCB Circuit Diagram...

  • Page 10: "Pcb Volume" Control

    All manuals and user guides at all-guides.com 2. FUNCTIONS 2-1. "PCB VOLUME" Control INPUT CONTROL OBJECT - Turn 'DIAL KNOB' on the 'COVER M/FLOW -PCB Volume DUCT'. - Temperature is controlled by "PCB Volume" assembled with "Dial Knob". - 16step(0step ~ 15step) mode of successive temperature mode - Each model is diffrent using range.

  • Page 11: Temperature Control Of Refrigerator Compartment

    All manuals and user guides at all-guides.com 2. FUNCTIONS 2-2. Temperature Control of Refrigerator Compartment INPUT CONTROL OBJECT - Turn 'DIAL KNOB' - COMPRESSOR - R sensor - FAN A. COMP and FAN will be controlled by the on/off condition of each mode. B.

  • Page 12: Defrost Mode

    All manuals and user guides at all-guides.com 2. FUNCTIONS 2-3. Defrost Mode INPUT CONTROL OBJECT - Compressor - Accumulated Compressor Run Time - F Fan - Running Time Ratio of Compressor - Defrost Heater - Accumulated Door Open Time - Ambient temperature (RT) A.
  • Page 13 All manuals and user guides at all-guides.com 2. FUNCTIONS 2-3. Defrost Mode D. Flow chart of How to Start Defrost Mode ※ A.C.R.T. : Accumulated Compessor Run Times ※ R.R.O.C. : Running Rate of Compressor ※ RT: Ambient temperature Start A.C.R.T.= 6,8,10,12hours Any Error R.R.O.C.(per 2hrs of A.C.R.T.)≥90%...
  • Page 14 All manuals and user guides at all-guides.com 2. FUNCTIONS 2-4. Function of Low Ambient Temperature (RT) INPUT CONTROL OBJECT - R HTR - COMP A. Condition of LOW RT - RT sensor below 20.7℃ - When the RT sensor is over 21.7℃, the system comes to be “General Operation Mode”. - When the RT sensor is between 20.7°C to 21.7°C, the system keeps the previous mode.
  • Page 15 All manuals and user guides at all-guides.com 2. FUNCTIONS 2-7. Time Saving Function INPUT CONTROL OBJECT ”FAST KEY” Buzzer A. How to Save - 1 min : Click FAST KEY one time on MAIN PCB. - 30 min : If you press FAST KEY continuously, you can reduce 30 minutes on each 2.5 seconds with buzzer.

  • Page 16: Control Of R-Sensor Off Point

    All manuals and user guides at all-guides.com 2.FUNCTIONS 2-8. Control of R-sensor OFF Point INPUT CONTROL OBJECT Control Resistance of R sensor OFF Point ”J1” , “J2” On Main PCB - When the refrigeration of refrigerator is poor or weak though Fan and COMP are working continuously, the following actions are recommended for service.
  • Page 17 All manuals and user guides at all-guides.com 2. FUNCTIONS 2-9. Error Display INPUT CONTROL OBJECT Sensor Error LED Lamp - ERROR DISPLAY - If appliance has any errors, LED on the Main PCB is flickering. - If the appliance is normal (no error), LED IS off. A.
  • Page 18 All manuals and user guides at all-guides.com 3. DISASSEMBLY 3-1. Tank water as 18 (2)
  • Page 19 All manuals and user guides at all-guides.com 3. DISASSEMBLY 3-2. Door Switch...
  • Page 20 All manuals and user guides at all-guides.com 3. DISASSEMBLY 3-3. Cover Multi-Flow Duct As (in Fresh food Compartment)
  • Page 21 All manuals and user guides at all-guides.com 3. DISASSEMBLY 3-4. Louver F As (in Frozen Food Compartment)
  • Page 22 All manuals and user guides at all-guides.com 3. DISASSEMBLY 3-5. DOOR F/R...
  • Page 23 All manuals and user guides at all-guides.com 3. DISASSEMBLY 3-5. DOOR F/R...

  • Page 24: Refrigerator Door

    All manuals and user guides at all-guides.com 4. How To Change Door Position Features 1-1> Tilt down the appliance to the rear. (Watch out for "Pipe Wire Condensor" damage.) 1-2> Disassemble following parts in order. - 'Top Cover Hinge' and 'Top Hinge'(a) 'Refrigerator Door'(b) - 'Middle Hinge'(c) - 'Middle Cover Hinge'(d)

  • Page 25: How To Charge R-600A Refrigerant

    All manuals and user guides at all-guides.com 5. How To Charge R-600a Refrigerant 5-1. Safety Warning ( R-600a Refrigerant Models Only) his appliance contains a certain amount of isobutane refrigerant (R600a) a natural gas with high environmental compatibility that is, however, also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.
  • Page 26 All manuals and user guides at all-guides.com 5. How To Charge R-600a Refrigerant 5-3. Process Summary 1st Step. 2nd Step. 3th Step. R-600a ref. Removing Exchanging comp. discharging the remaning refrigerant & dryer / pipe welding - Connect the dis- - For removing of - Exchange Comp.
  • Page 27 All manuals and user guides at all-guides.com 5. How To Charge R-600a Refrigerant...
  • Page 28 All manuals and user guides at all-guides.com 5. How To Charge R-600a Refrigerant...
  • Page 29 All manuals and user guides at all-guides.com 5. How To Charge R-600a Refrigerant...
  • Page 30 All manuals and user guides at all-guides.com 6. PART LIST DOOR DOOR F RFP-241 / RFP-301 RFP-242 / 243/ 302 / 303 DOOR RFP-305 RFP-306 RFP-30V (HIDDEN HINGE TYPE) *Some parts can be changed for improving without notice. Date Note...
  • Page 31 All manuals and user guides at all-guides.com Cabinet Cabinet / Condenser Cabinet compartment PART-CODE PART NAME SPEC. Q'ty ASSY CAB URT WHITE / SILVER/BLACK 3012937900 HINGE *T AS RFP-301 3001448500 PP, WHITE 3001448510 COVER HI *T PP,SILVER 3001448520 PP, BLACK 30143KW0A0 ENERGY A+ , NORAML PCB MAIN AS...
  • Page 32 All manuals and user guides at all-guides.com Machine Compartment Cabinet PART-CODE PART NAME SPEC. Q'ty 3010365500 BASE COMP AS RFP-301 3010103410 ABSORBER COMP RUBBER 301119VJ01 CASE VAPORI AS PP,SEAL,ABSORBER 3956188C50 LZ88CY 220-240V 50HZ , A+ COMPRESSOR 3956182M80 LR82CY 230V 50HZ, A++ 4019H09031 SPECIAL WASHER SWRH...
  • Page 33 All manuals and user guides at all-guides.com Refrigerator & Freezer Compartment Cabinet PART-CODE PART NAME SPEC. Q'ty RFP-301(230V 130W) 3017070000 EVA AS RFP-301(DC MOTOR),230V,130W 3017070020 RFP-301(AC MOTOR), 230V, 130W 3012831200 32-1 HEATER SHEATH AS RFP-301(DC MOTOR),230V,130W 3012831220 32-2 HARNESS D SENS RFP-340(NBC-K43-24) 3012764100 RFP-301(AC 230V 50HZ)
  • Page 34 All manuals and user guides at all-guides.com Door&Pocket Compartment Cabinet PART-CODE PART NAME SPEC. Q'ty RFP-301D, WHITE PCB 30100CCL00 ASSY R DR RFP-301D, METAL SILVER 30100CCL10 RFP-301D, BLACK PCM 30100CCL20 PVC, WHITE,SILVER DOOR ONLY 3012331000 47-1 GASKET R DR AS PVC, BLACK DOOR ONLY 3012331010 WHITE...
