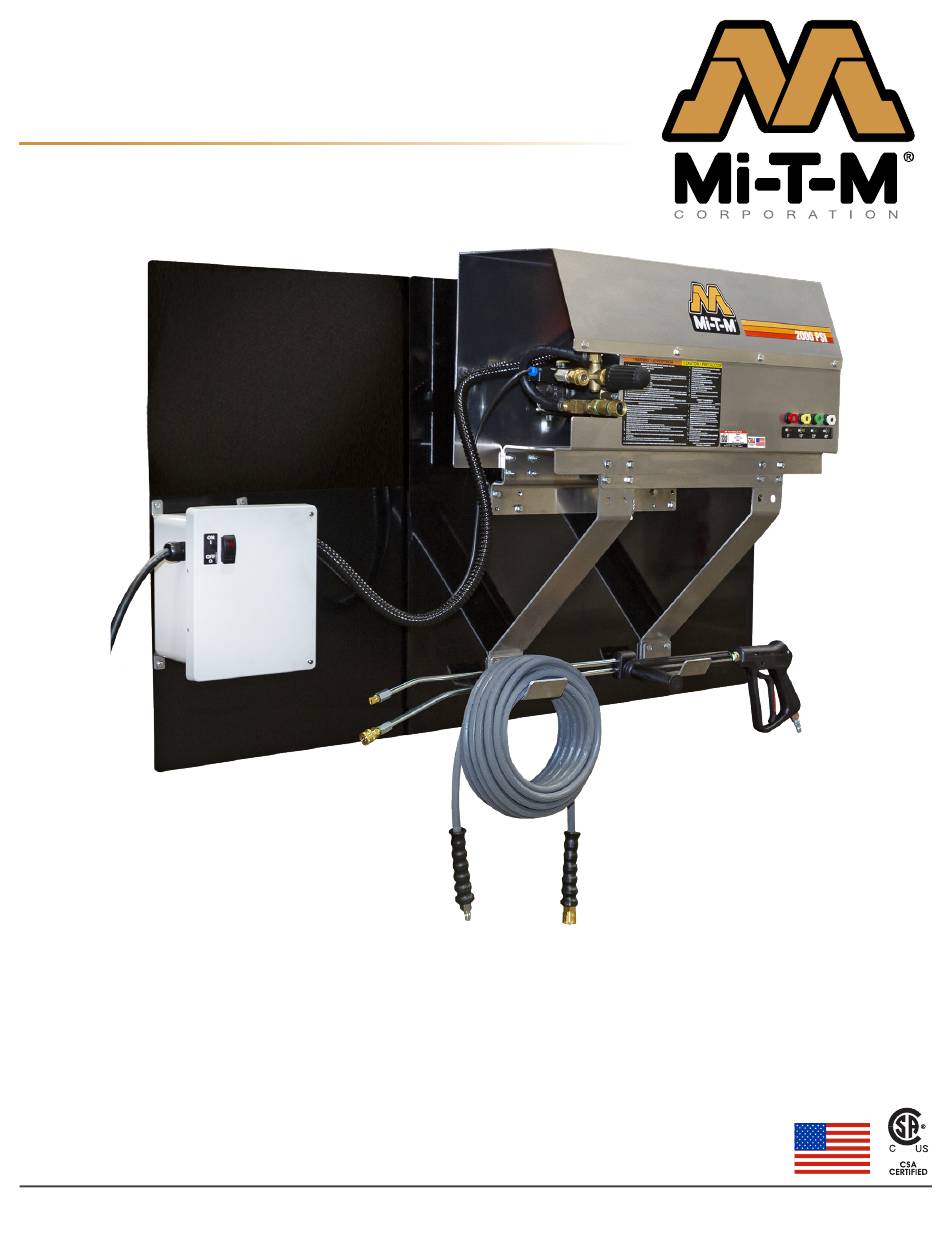

Mi-T-M CAW Aluminum Series Quick Start Manual

COLD WATER PRESSURE WASHERS
CAW Aluminum Series
Electric | Direct Drive | Wall Mount

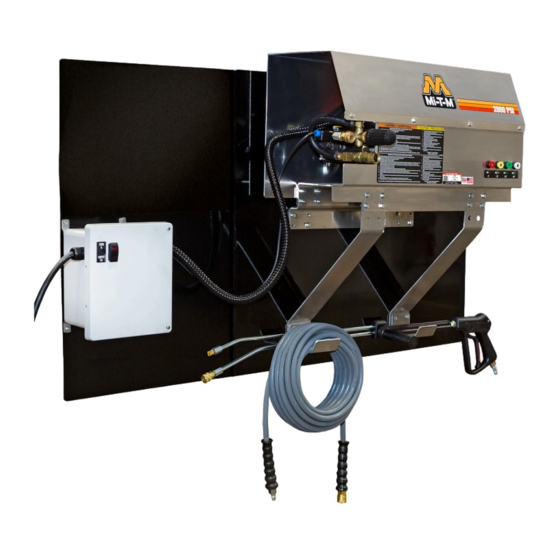

Designed to attach directly to a wall, this series offers a secure system for use in a wide range of
locations. Featuring non-corrosive aluminum construction, it is perfect for high volume cleaning
and sanitizing jobs and is especially versatile in factories, wash bays and food processing plants.

Pump

- Direct drive triplex piston General pump with ceramic pistons
- Stainless-steel and brass trapping unloader
- Forged brass manifold
- Thermal relief valve
- External quick connect low pressure detergent injector
- Pump accepts incoming water up to 165°F
(175°F on CAW-4004-0ME1)

Motor

- Industrial-duty totally enclosed fan-cooled electric motor
with manual thermal overload protection
- Low speed 1750 RPM
- 4-foot power cord

Frame

- Aluminum base plate and frame
- Aluminum wall mounting brackets
- Aluminum hose and gun/wand holder
Mi-T-M Corporation

Components

- Time delay shutdown
- Remote mounted electrical box included, must be mounted
within 3 ⁄ -feet of unit
1
2

Unit Includes:

- Quick connect nozzles - 0°, 15°, 25° and 40°
- 50-foot x ⁄ -inch non-marking high pressure hose with quick connects
3
8
- Professional-grade insulated trigger gun with safety lock-off
- Adjustable pressure insulated dual lance

Limited Warranties:

- 1 year electric motor
- 7 year General pump
50 Mi-T-M Drive, Peosta, IA 52068
•
CAW-2004-0ME1
(800) 553-9053 www.mitm.com
• •
Decal Part No. : 34-3553 (revised material/adhesive 2-15-17)
Date: 02-10-17
Customer: Mi-T-M
Made in
USA
with Globally Sourced
Components
34-3553
Mi1924-100319
