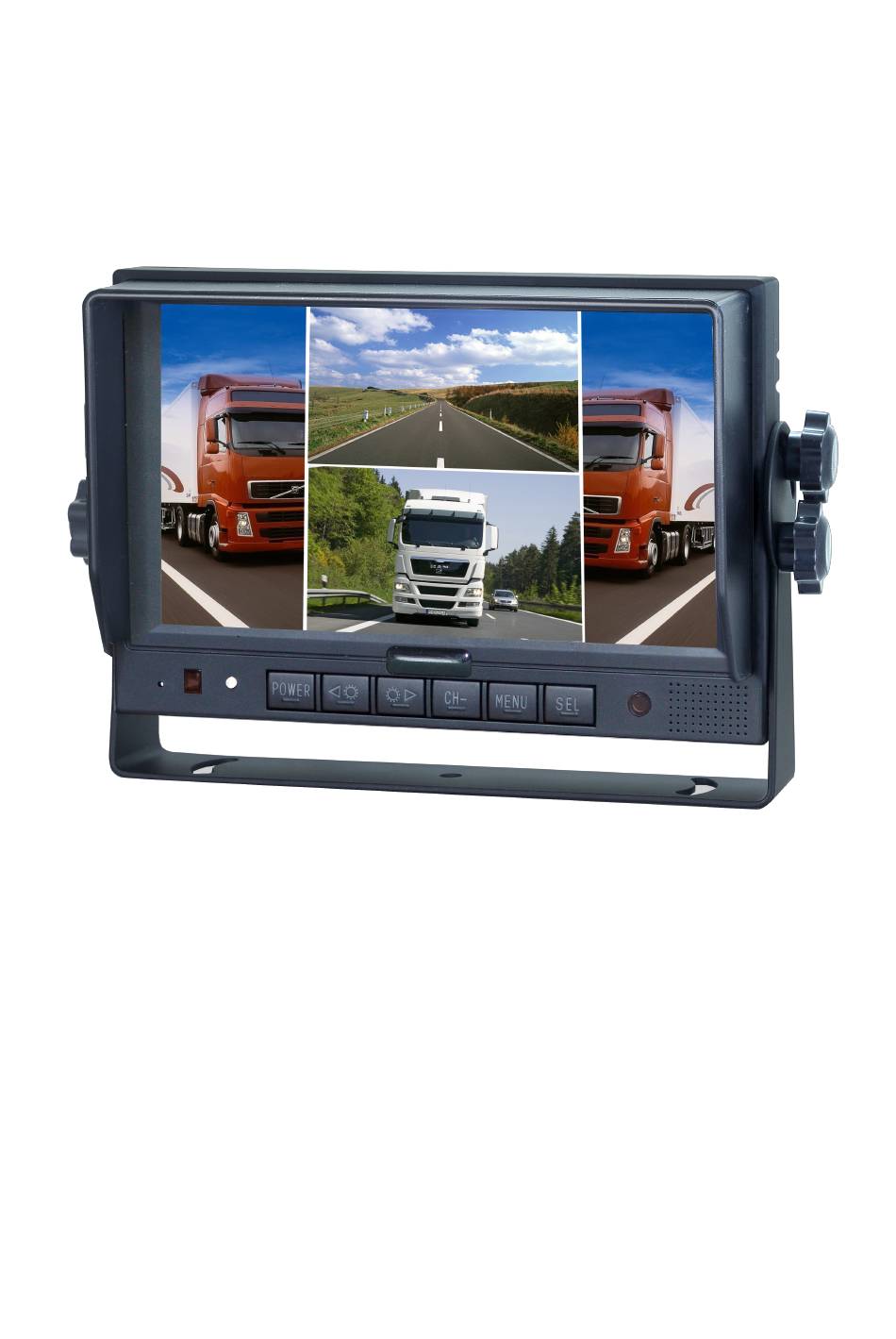

- Page 1 Operating Instructions 7" HD Quad-view Vehicle Monitor Please read all instructions before using the product, and keep the manual for future reference. The product may differ from the manual description according to the upgraded S/W version or performance, and it may be altered without notice. V1.1...
-
Page 2: Table Of Contents
Contents 1. Precautions...................... 1 2. Features and Specifications................3 3. Accessories...................... 4 4. Parts Identification...................5 5. Connections..................... 6 6. Menu Operation & Functional Specification..........7 6.1 IR Remote Control..................7 6.2 Menu Operation..................8 6.2.1 Desktop....................8 6.2.2 Home Menu..................9 6.2.3 Volume....................10 6.2.4 Mode....................10 6.2.5 Setting....................12 6.2.5.1 Camera.................. -
Page 3: Precautions
1. Precautions ● Storage and Keeping (1) Do not expose the monitor to excessive heat or cold. The storage temperature of this device is -30~+80℃, and the operating temperature is -20~+70℃. (2) Avoid dropping or striking this device. (3) Avoid using this device in enclosed spaces, areas with excessive vibration or subject to severe impacts. - Page 4 ● Maintenance (1) Remove all the cable connections from the monitor before cleaning the device. (2) Use a mild household detergent and clean the unit with a slightly damp, soft cloth. (3) Never use strong solvents such as thinner or benzine, as they might damage the finish of the device. Caution Risk of electric shock Do not open...
-
Page 5: Features And Specifications
2. Features and Specifications (1) 7 inch HD quad-view monitor; (2) All manu actions support touch screen control; (3) Support 4 HD camera inputs and split-view display mode; (4) Multiple video formats available: 1080P30/1080P25/720P30/720P25; (5) Single, dual, triplex, quad, trefoil and Y-split view display modes available; (6) Support adjusting the image parameter of separate single channel;... -
Page 6: Accessories
3. Accessories U-Support Bracket Center Mount Bracket Sun Shield IR Remote Control Power Cable Angle Adjustment Screws Special Notice Accessory supply may be different for different application. -
Page 7: Parts Identification
4. Parts Identification Power switch / Loudspeaker Light lever sensor Power indicator Digital color LCD screen, touch screen Remote control sensor Mounting bracke installation... -
Page 8: Connections
5. Connections (1) White 4P male for Camera 1. (2) Blue 4P male for Camera 2. (3) Green 4P male for Camera 3. (4) Brown 4P male for Camera 4. (5) Single red wire to power wire of DC: 10-32V. (6) Single black wire to GND. -
Page 9: Menu Operation & Functional Specification
6. Menu Operation & Functional Specification 6.1 IR Remote Control Enter/exit the standby mode Mute or unmute Exit to the main menu or return to the previous menu Move up the menu cursor Move up the menu cursor or Move up the menu cursor or increase volume decrease volume Confirmation button... -
Page 10: Menu Operation
● DOWN: Switch the channel without auto scan and trigger function turned on; ● LANG: Enter the language setup menu. ● SEL: Enter the menu which the cursor selects; ● REST: Reset all parameters to factory; 6.2 Menu Operation 6.2.1 Desktop Button Panel Instructions: ●... -
Page 11: Home Menu
Pic. 6.2.1-2 ● Without special mode such as auto scan or trigger function turned on, the swiping to the left and right of the touch screen can switch the display mode following the order: CAM1->CAM2->CAM3->CAM4->DUAL->TRIPLE->TREFOIL->Y-SPLIT->H.SPLIT->QUAD->CA ● Support swiping up/down to exit/enter the standby mode. Pic. -
Page 12: Volume
Pic.6.2.2 Touch Screen Instructions: ● Click the icon to enter the corresponding menu. Click the area outside the white box to exit home menu. 6.2.3 Volume Button Panel Instructions: ● Power: Enter/exit standby mode. ●◁/ ▷: Increase/reduce the volume. ● MENU: Return to the previous menu. ●... - Page 13 ●◁/ ▷: Move the cursor. ● CH-: Use cursor to select the display mode. If icon is selected, enter Split Setup menu . ● MENU: Return to the previous menu. ● SEL: Switch to the corresponding display image. Pic.6.2.4 Touch Instructions: ●...
-
Page 14: Setting
Touch Instructions: ●The selection lists will pop up after click button when you setup VIEW, then click corresponding channel to change the display image. The selection lists will also pop up after click button when you setup AUDIO, then click corresponding channel as the audio output channel. - Page 15 Pic.6.2.5.1 Touch Instructions: ●Click button to enter configuration page. 6.2.5.1.1 Keyboard (show up when editing channel name) Button Panel Instructions: ● Power: Enter/exit standby mode. ●◁/ ▷: Move the cursor. ● CH-: Move the cursor downward. ● MENU: Go back to the Camera menu without saving. ●...
-
Page 16: Parking Line
Other Instructions: ● The following keys are special for: (1) Caps: Switch between capital/low-case letters. (2) 123: Switch to special numerical character 1 and 2. (3) Del: Delete the last letter before the edit box. (4) ENTER: Save the revised channel name, and go back to Camera menu. 6.2.5.1.2 Image Button Panel Instructions: ●... - Page 17 Pic.6.2.5.2 Touch Instructions: ● Click the ON/OFF icons to select the display methods of parking lines: ON (display when triggered)/ OFF. Click the icon “Calibrate” to enter parking lines calibration menu. 6.2.5.2.1 Calibrate Button Panel Instructions: ● Power: Enter/exit standby mode. ●...
-
Page 18: Language
6.2.5.3 Language Button Panel Instructions: ● Power: Enter/exit standby mode. ●◁/ ▷/CH-: Move the cursor. ● MENU: Return to the previous menu. ● SEL: Confirm and switch system language. Pic.6.2.5.3 Touch Instructions ● Touch icons to switch system language. 6.2.5.4 Trigger Pic.6.2.5.4 Button Panel Instructions: ●... -
Page 19: Auto Scan
Touch Instruction ● Touch any of “Delay” line to activate digital input box; Touch any of “Priority” line to activate digital selection box. Touch any of “Display” line to activate interface to select display images. Feature Instructions: ● Delay: Trigger display image duration after trigger signal is disappeared, ranging from 0 to 60 seconds. -
Page 20: Power On
Other Instructions: ● Auto scan can be interrupted by trigger function. 6.2.5.6 Power On Button Panel Instructions: ● Power: Enter/exit standby mode. ●◁/ ▷: Move the cursor and highlight the selected icon. ● MENU: Return to the previous menu and save. Pic.6.2.5.6 Touch Instructions: ●... -
Page 21: System
Pic.6.2.5.7 Touch Instructions: ● If the icon is not highlighted, touch to highlight it or to cancel its highlight status. Feature Instructions: ● Configure the input standards of monitor, 720P30Hz/25Hz represent 720P30fps/25fps camera separately, 1080P30Hz/25Hz represent 1080P30fps/25fps separately. Other Instructions: ●... -
Page 22: Power Off
Feature Instructions: ● Dimmer: LOW/MEDIUM/HIGH represents three different backlight brightness. When setup value is AUTO, the screen will automatically switch to HIGH when in bright environment, as well as automatically switch to LOW in dim environment . ● Buzzer: When it’s on, it will shortly alarm if release buttons or touch. ●...
