Summary of Contents for VigilLink VLIP-SD10G-ECRD

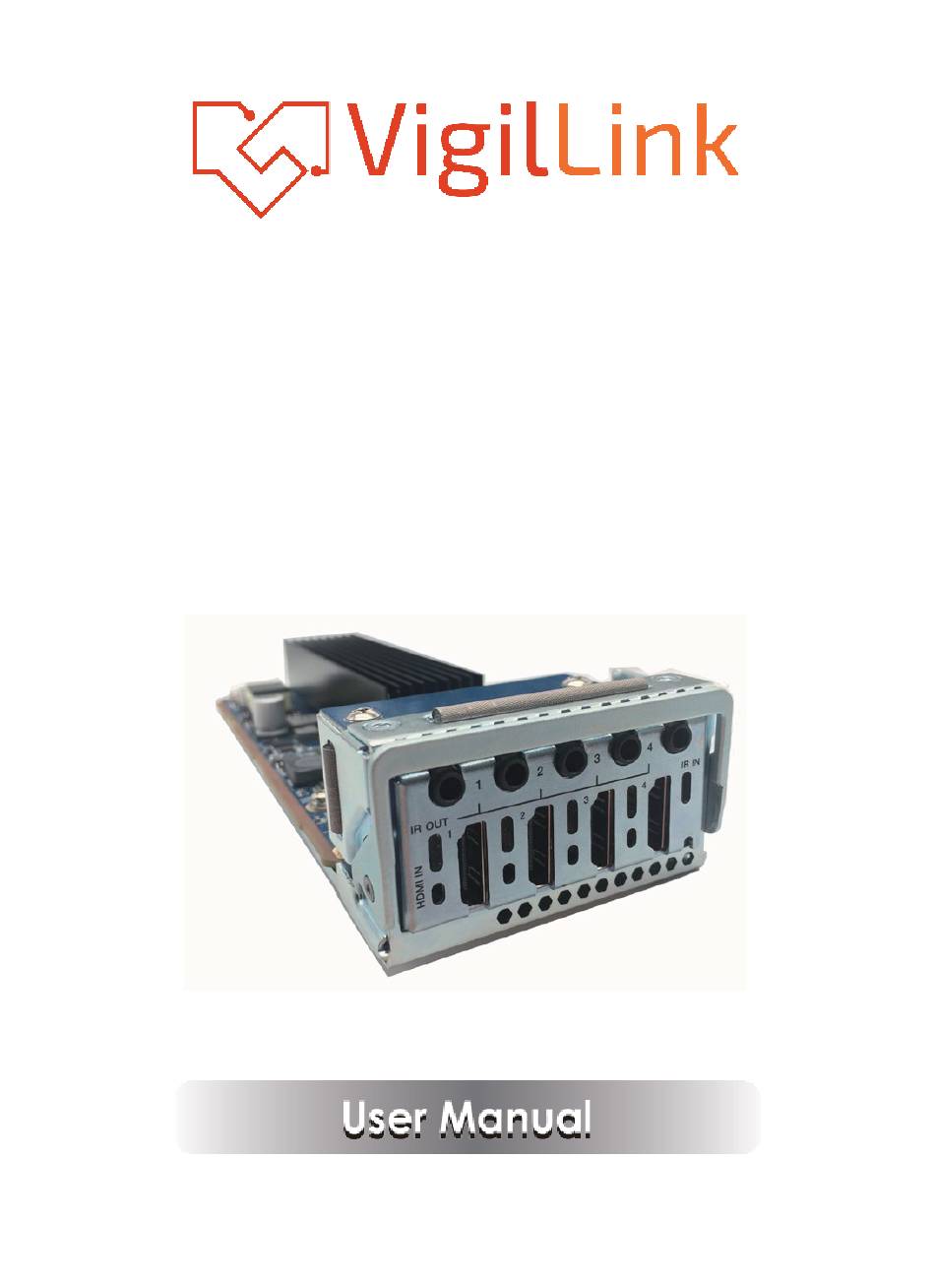

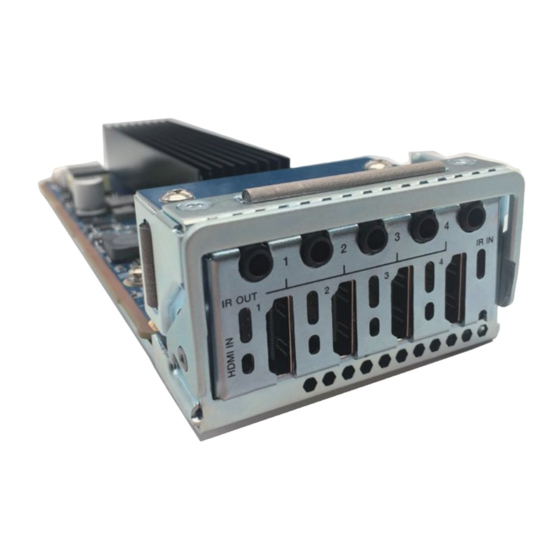

- Page 1 VLIP-SD10G-ECRD 10G SDVoE Quad HDMI input module for NETGEAR M4300 series modular network switch VER 1.0...
- Page 2 Thank you for purchasing this product Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device is recommended. This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shocks, lightning strikes, etc.
- Page 3 1. Introduction This module uses NetGear 96 10G Ethernet switch to realize video matrix switching. Each card supports 4-channel HDMI input, 4-channel IR output, and 1- channel IR input. Supported video resolution is up to 4K2K @50/60hz YCbCr 4:4:4. The product supports 3D, HDR video, and CEC control.
- Page 4 4. Specifications Technical HDCP Compliance HDCP 2.2 Video Bandwidth 594MHz / 18Gbps 4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:2 4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 Video Resolution 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats All PC resolutions, including 1920 x 1200 Color Space RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0 8-bit (4K 60Hz 4:4:4), 10-bit (4K 60Hz 4:4:4),...
- Page 5 Operation 0°C ~ 45°C / 32°F ~ 113°F Temperature Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing) 5. Operation Controls and Functions Name Function Description IR OUT 1~4 IR signal output for IR control of HDMI source. IR signal input for receiving the signal of IR IN the IR remote.
- Page 6 6. Application Example Note: This is just a connection demonstration. All the LAN ports in the diagram above can be connected with control devices or extenders randomly. 7. FAQ Q: What other control methods does the product support? A: This product can also be matched with HDV-CTL100 and controlled via Web UI. Please get in touch with our customer service for details.
