Summary of Contents for hot-steam SP3-110
- Page 1 Steam Regulator Installation Manual Model No. SP3-110 SP3-220 IMPORTANT • Please read this owner’s manual thoroughly before installing and operating your iron. • Please retain this owner’s manual for future reference after reading it thoroughly.

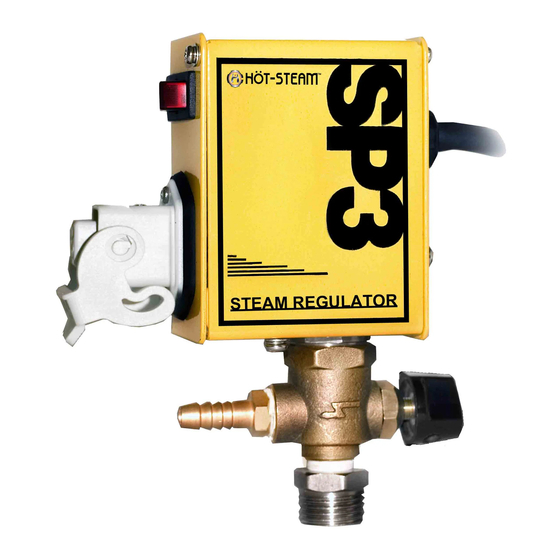

- Page 2 STEAM REGULATOR Thank you for purchasing the Höt-Steam® SP3 Steam Regulator. The Höt-Steam® SP3 Steam Regulator is an electrical activated valve that controls the steam flow when connected in conjunction to an electric iron. Please read the installation and wiring instructions before operating this unit.
- Page 3 HöT-STEAM® Model No. SP3 Steam Regulator 4P MALE PLUG WIRING IMPORTANT The wiring specification in this manual should be only used when connecting a Hot-Steam® SP3 Steam Regulator. **CAUTION** In order to properly connect an iron according to the Höt-Steam® SP3 wiring specifications, it is important to identify each of the 4 wires from the iron’s power cord.
- Page 4 This warranty is contingent upon installation and use of equipment under normal operating conditions. This warranty is void on steam regulators and parts that have been subject to misuse, accident, or negligent damage. Tel: (631) 393-2811 Fax: (888) 276-7617 www.hot-steam.com Copyright©2020 Höt-Steam® All rights reserved...
- Page 5 HöT-STEAM® Model No. SP3 Steam Regulator Exploded View Ref# Item No. Description SP001 Front Metal Cover SP002 Rear Metal Cover SP003 Coil Bracket SP004 Steam Valve Body RK-SP3 Plunger RK-SP3 Plunger Spring RK-SP3 Plunger Casing O-Ring SP006 Plunger Casing with Nut SP005 Brass Hose Nipple SP006-1...
