Shipping and Packing List
Package 1 of 1 contains:
1 - Economizer damper assembly
1 - Outdoor air damper
1 - Return air damper
1 - Gravity exhaust damper
1 - Horizontal blank-off panel
1 - Economizer actuator
1 - Economizer control module
1 - Outdoor air temperature sensor
1 - Hardware bag
1 - Mixed air sensor
3 - #10-14 x 3/4" screws with washer
11 - #10-16 x 5/8" screws
1 - Side economizer panel
1 - Wiring diagram label
Order Of Installation
Economizer
Mixed air sensor
Optional OA and RA sensors
Power Exhaust fans (optional)
Side economizer panel
!
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, personal injury
or loss of life. Installation and service must be performed
by a qualified installer, service agency or the gas supplier
HORIZONTAL ECONOMIZERS
Z1ECON16B-1 (11G98) ECONOMIZERS
INSTALLATION INSTRUCTIONS FOR ECONOMIZERS
USED WITH ZC,ZG,ZH 092-150 UNITS

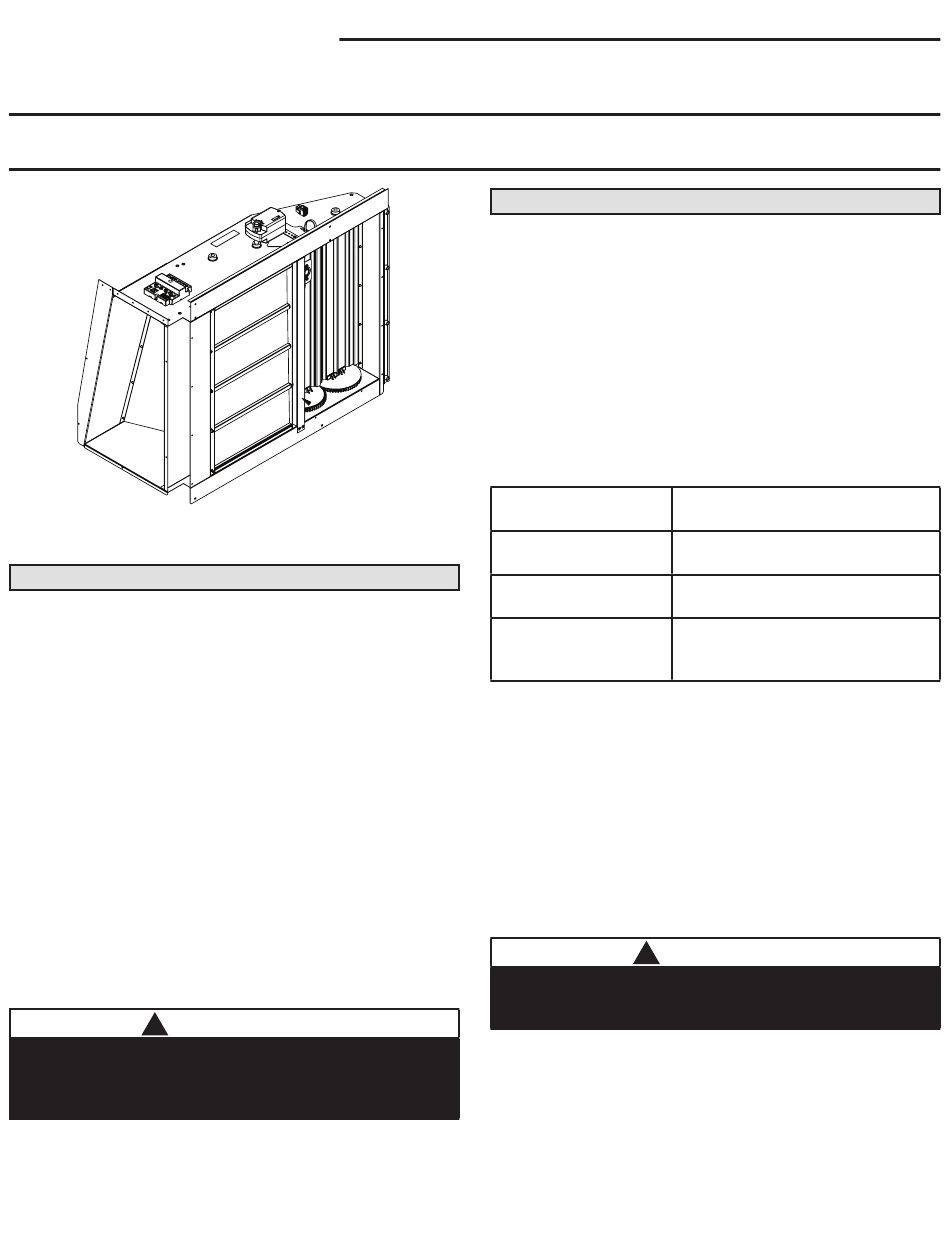

Figure 1
Application
The Z1ECON16B-1 (11G98) economizer is used with
ZC,ZG,ZH 092-150 units in horizontal air discharge
applications. Economizer dampers will modulate to maintain
55
F (13
C) supply air when outdoor air is suitable. The mixed
o
o
air temperature sensor measures the supply air sensible
temperature.
An outdoor air sensor is used to determine whether outdoor air
is suitable for free cooling. The outdoor air sensor is factory-
installed in all economizers. Other outdoor and return air (OA
and RA) sensor options are available to determine whether
outdoor air is suitable for free cooling. See Table 1 and the
instructions provided with optional senors.
Sensors
*Single OA Sensible
Single OA Enthalpy
Differential Enthalpy
- 1 in OA & 1 in RA
*Single OA sensible sensor is shipped standard on economizer
INDOOR AIR QUALITY SENSOR
An IAQ sensor is used when demand control ventilation (DCV)
is specified. Damper minimum position can be set lower than
traditional minimum air requirements resulting in cost savings.
The IAQ sensor allows the economizer control module to
open dampers to traditional ventilation requirements as room
occupancy (CO
) increases.
2
For proper operation, the IAQ sensor must provide a 2-10VDC,
100 ohm impedance signal. Connect sensor leads to AQ and
AQ1 terminals on the economizer control module located in the
filter section.
Danger of sharp metallic edges. Can cause injury.
Take care when servicing unit to avoid accidental contact
with sharp edges.
1
TABLE 1
Dampers modulate to maintain
55
F mixed air (R1) when:
o
OA temperature is lower
than free cooling setpoint
OA temperature and humidity is
suitable for free cooling
OA temperature and humidity is
lower than RA temperature and
humidity.
CAUTION
!
Cross Reference No. 507401-01
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Lennox Z1ECON16B-1
Summary of Contents for Lennox Z1ECON16B-1
- Page 1 Z1ECON16B-1 (11G98) ECONOMIZERS INSTALLATION INSTRUCTIONS FOR ECONOMIZERS USED WITH ZC,ZG,ZH 092-150 UNITS Application The Z1ECON16B-1 (11G98) economizer is used with ZC,ZG,ZH 092-150 units in horizontal air discharge applications. Economizer dampers will modulate to maintain F (13 C) supply air when outdoor air is suitable. The mixed air temperature sensor measures the supply air sensible temperature.
- Page 2 Economizer hood is shipped assembled. Install over Install Economizer economizer and screw in place on both sides and top Disconnect all power sources to the unit flanges. See Fig 6. Remove the following panels from the unit; Install field supplied horizontal return duct per unit - Filter door panel instructions.
- Page 3 Grommet for high 9 pin economizer/ voltage power exhaust mixed air sensor HVAC unit’s filter wires (optional) plug (J142) access door Economizer’s outside air damper Outside air temperature sensor Side opening to be covered by side economizer panel Relief damper Figure 5 - Front View Field supplied Filter access...
-
Page 4: Wire Connections
WIRE CONNECTIONS OUTDOOR AIR TEMPERATURE SENSOR PROVIDED (ENTHALPY OPTIONAL) Mixed Air Sensor Provided (R1) ECONOMIZER CONTROL DIFFERENTIAL MODULE ENTHALPY SENSOR P10 J10 (OPTION) P142 J142 ECONOMIZER POWER EF1 EF PLUG 5-PIN *PLUG DAMPER MOTOR SENSOR Actuator plug (OPTION) *3 Pin High Voltage Power Exhaust Plug Figure 7 - Wiring Detail Economizer Economizer Side Panel... - Page 5 Single Enthalpy Sensing: Economizer Control Module A6 ENTHALPY CONTROL Note - The following conditions assume unit is operating during occupied period. Single Outdoor Air Enthalpy Sensing: DAMPER MINIMUM The enthalpy sensor is an optional accessory. The temperature POSITION sensor shipped with the economizer will be removed and discarded, and the enthalpy sensor field installed.
- Page 6 Table 3 DAMPER MINIMUM POSITION SETTING Measure outdoor air temperature. Mark the point on the bottom line of chart 1 and label the point “A” (40 F, 4 NOTE - 24 volts must be provided at unit 24 volt leads R and OC shown).
-
Page 7: Mechanical Cooling
CHART 1 CALCULATE MINIMUM FRESH AIR PERCENTAGE MIXED AND RETURN AIR TEMPERATURE −20 −10 −29 −23 −18 −12 −7 −1 −20 −10 −29 −23 −18 −12 −7 −1 OUTDOOR AIR TEMPERATURE DCV SET AND DCV MAX SETTING Economizer Operation The DCV SET potentiometer is factory-set at approximately 50% When the outdoor air is suitable, dampers will modulate between of the potentiometer range. - Page 8 TABLE 5 ECONOMIZER OPERATION OUTDOOR AIR IS NOT SUITABLE FOR FREE COOLING -- FREE COOL LED DAMPER THERMOSTAT DEMAND MECHANICAL COOLING UNOCCUPIED OCCUPIED Closed Closed Closed Minimum* Closed Minimum* STAGE 1 Closed Minimum* STAGE 1 *IAQ sensor can open damper to DCV max. Damper position when no occupied/unoccupied signal is available from building thermostat or energy management system.
